ABB 5SGF30J4502

ABB 5SGF30J4502

Overview

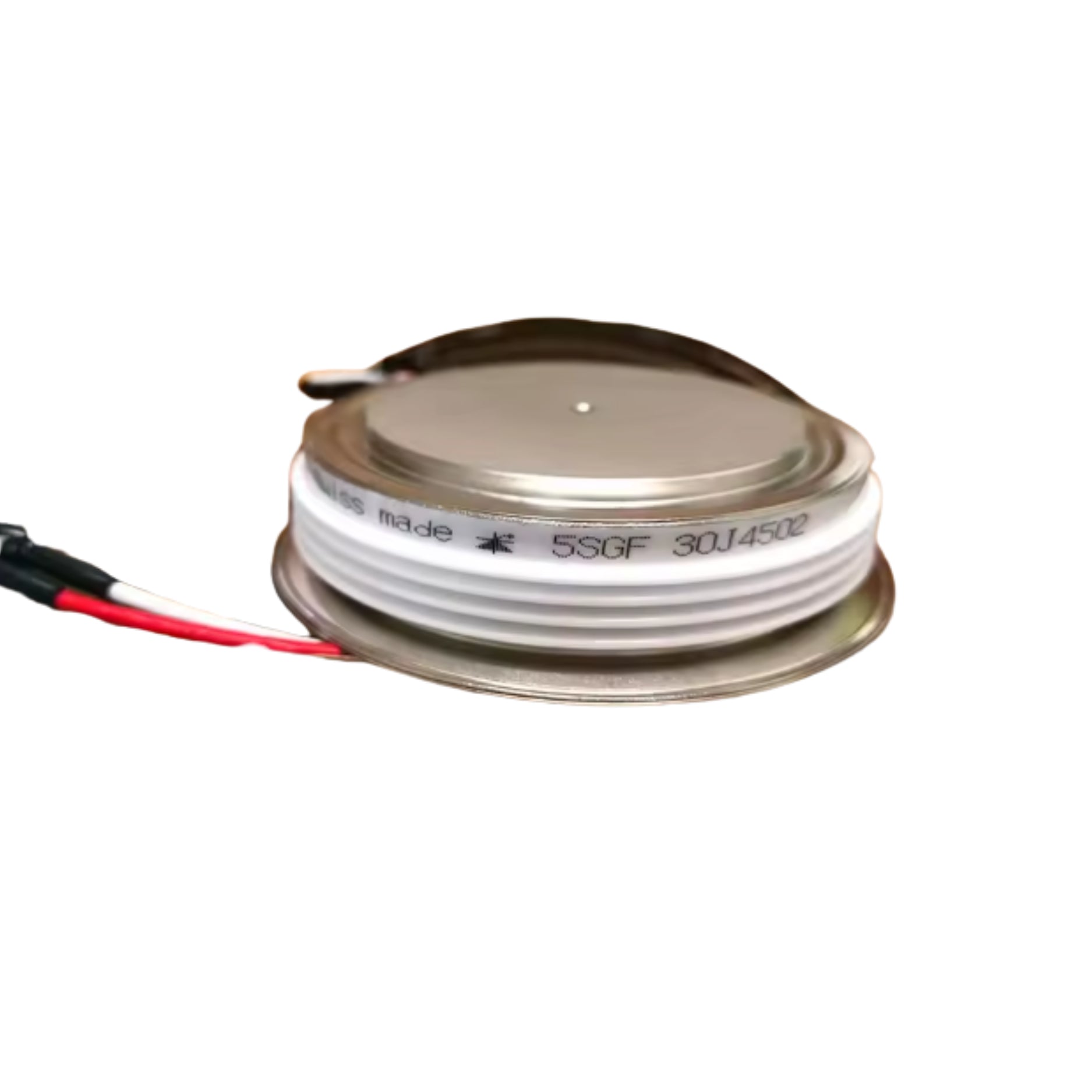

The ABB 5SGF30J4502 is a high-power Gate Turn-Off (GTO) thyristor rated for 3000 A and 4500 V, engineered for robust performance in industrial and high-voltage switching systems. It features ABB’s patented free-floating silicon technology to minimize on-state and switching losses. Designed with an annular gate electrode and housed in a 108 mm round package, this GTO offers superior electrical efficiency and reliability under cosmic radiation exposure.

Key Features

• Rated current: 3000 A

• Blocking voltage: 4500 V

• Annular gate electrode

• Low switching and conduction losses

• Free-floating silicon chip design

• Radiation-resistant structure

• Industry-standard 108 mm round GTO package

• High mechanical durability with 33 kN mounting force

Technical Specifications

• Product ID: 5SGF30J4502

• Type: Gate Turn-Off Thyristor (GTO)

• ITGQM: 3000 A

• VDRM: 4500 V

• Package Diameter: 108 mm

• Package Height: 26 mm

• Net Weight: 1.3 kg

• Mounting Force: 33 kN

• Gate Structure: Annular

• Design Features: Free-floating silicon, radiation resistant

• Housing: Industry-standard round

Applications

• Traction and railway drives

• HVDC transmission systems

• Industrial motor inverters

• High-voltage power controllers

• Static inverters and converters

Why Choose the 5SGF30J4502

• Balanced high current and voltage ratings

• Optimized for compact, high-performance systems

• Backed by ABB's proven GTO design

• Enhanced safety with cosmic radiation resilience

• Ideal for demanding industrial and traction environments

Order Now

The ABB 5SGF30J4502 GTO thyristor is designed for high-voltage and high-reliability applications. Available for global shipping.
