ABB 5SGA15F2502

ABB 5SGA15F2502

Overview

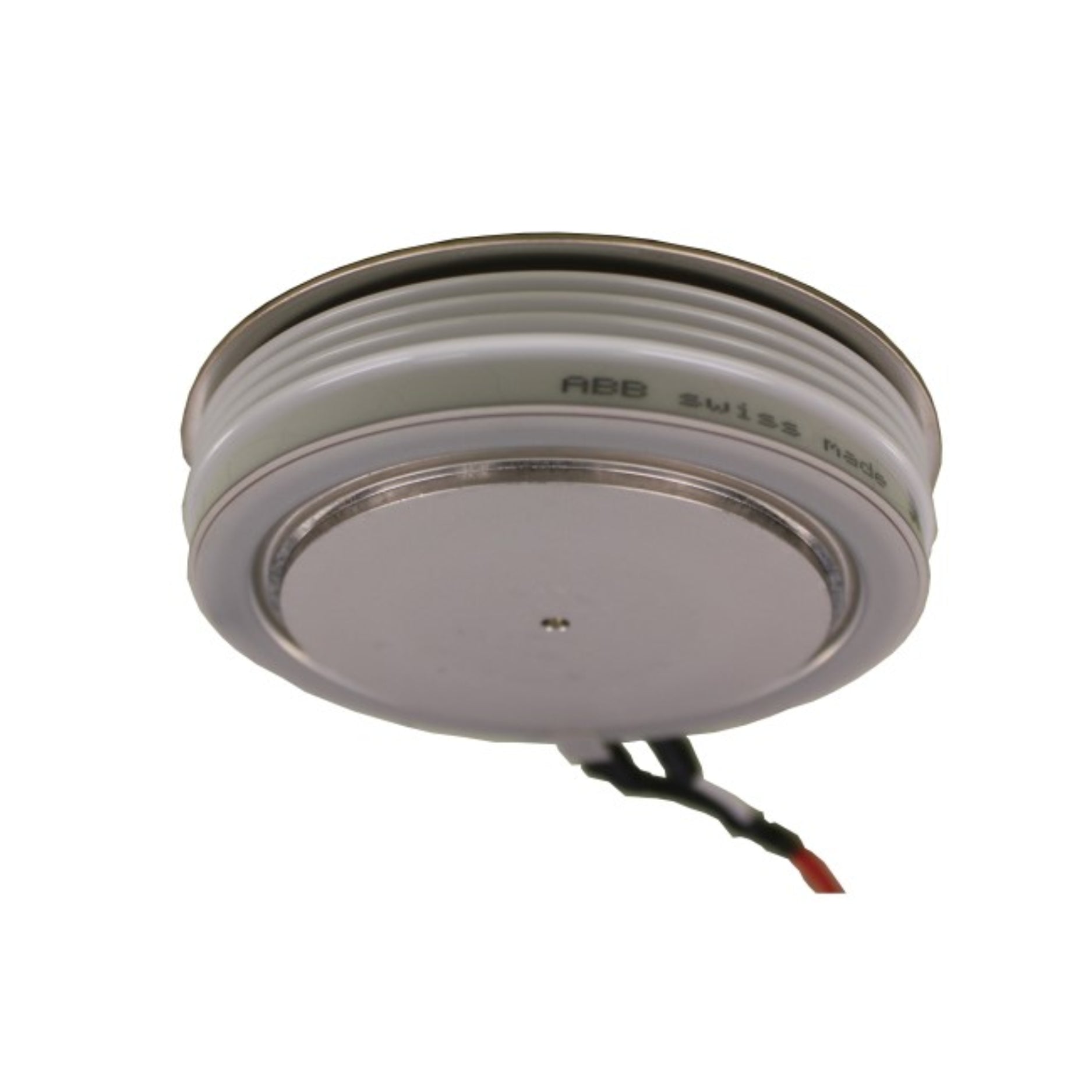

The ABB 5SGA15F2502 is a high-performance asymmetric Gate Turn-Off (GTO) thyristor rated at 1500 A and 2500 V. Designed for high-power applications, this component features patented free-floating silicon technology, low on-state and switching losses, and an annular gate electrode for enhanced reliability and control. Built in an industry-standard 75 mm housing, it withstands cosmic radiation and is ideal for demanding industrial and traction applications.

Key Features

• Rated current: 1500 A

• Blocking voltage: 2500 V

• Asymmetric GTO design

• Low conduction and switching losses

• Free-floating silicon structure

• Annular gate electrode for improved current distribution

• Withstands cosmic radiation

• Standard 75 mm package

• Robust mechanical construction for high mounting force (15 kN)

• Designed for high-power inverters, drives, and traction systems

Technical Specifications

• Product ID: 5SGA15F2502

• Type: Asymmetric Gate Turn-Off Thyristor (GTO)

• VDRM: 2500 V

• ITGQM: 1500 A

• Package Diameter: 75 mm

• Package Height: 26 mm

• Gross Weight: 0.6 kg

• Mounting Force: 15 kN

• Housing: Industry-standard round package

• Application Areas: Traction converters, industrial drives, power inverters

• Withstand Rating: High immunity to cosmic radiation

Applications

• High-power industrial inverters

• Locomotive and traction systems

• Electric propulsion systems

• Static VAR compensators

• Heavy-duty DC choppers

Why Choose the 5SGA15F2502

• Proven ABB semiconductor quality

• High current and voltage capability

• Efficient switching with reduced losses

• Mechanical and thermal robustness

• Compliant with demanding industrial environments

Order Now

The ABB 5SGA15F2502 GTO thyristor is available for immediate purchase. Built for precision and durability in high-power applications, with worldwide shipping available.
