Understanding HIMs for PowerFlex 525 VFD
The PowerFlex 525 Variable Frequency Drive (VFD) from Allen-Bradley is a versatile and widely used solution for motor control applications. To enhance its functionality, Human Interface Modules (HIMs) provide an efficient way to configure, monitor, and troubleshoot the drive.
For the PowerFlex 525 VFD, there are two compatible HIM options:
- 22-HIM-A3 – LCD Display, Full Numeric Keypad
- 22-HIM-C2S – LCD Display, Remote Mountable Option
Both options allow for easier interaction with the VFD, improving accessibility and efficiency in industrial applications.

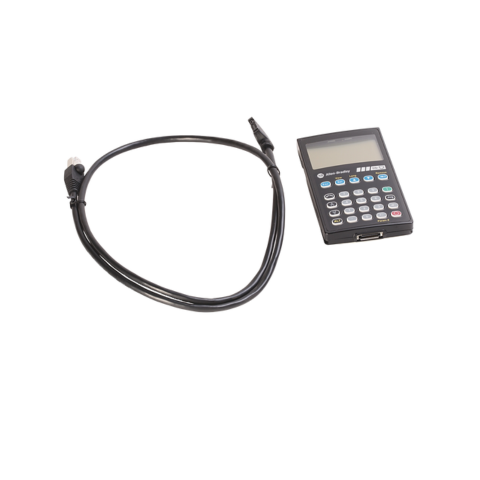

22-HIM-A3: Full-Function LCD Display HIM
The 22-HIM-A3 is a full numeric keypad LCD HIM designed for direct mounting on the PowerFlex 525 drive. It allows operators to configure parameters, view drive status, and monitor real-time diagnostics.
Key Features:
- Large LCD display for easy readability
- Full numeric keypad for quick parameter adjustments
- Direct drive mounting for convenient access
- Ideal for on-site operation and troubleshooting

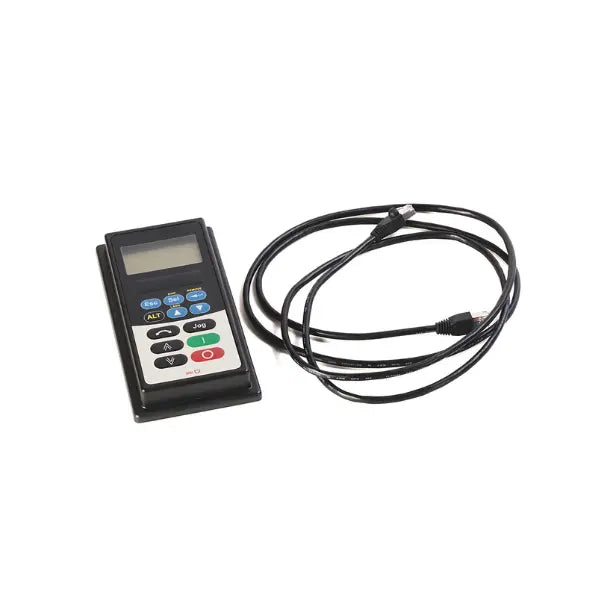

22-HIM-C2S: Remote-Mountable HIM for Flexible Operation
The 22-HIM-C2S is a remotely mountable LCD HIM,designed for applications where direct access to the drive is not feasible. It provides the same display functionality as the 22-HIM-A3 but allows for panel or door mounting, offering increased flexibility.
Key Features:
- LCD screen for clear parameter viewing
- Remote mounting capability for enhanced accessibility
- Useful for drive control in control cabinets or hard-to-reach locations
- Provides the same parameter adjustment functions as the 22-HIM-A3
Choosing the Right HIM for Your PowerFlex 525 VFD
When selecting the right HIM for your PowerFlex 525 drive, consider the following factors:
- If you need direct access on the drive, choose the 22-HIM-A3.
- If you require remote mounting for better accessibility, opt for the 22-HIM-C2S.
- Both options provide a user-friendly interface for configuring, monitoring, and troubleshooting the VFD.
Order Your PowerFlex 525 HIM Today
Enhance the functionality of your PowerFlex 525 VFD with a compatible HIM module. Whether you need a direct-mount or remote-mount option, the 22-HIM-A3 and 22-HIM-C2S provide reliable control and monitoring features. Contact us today to find the best solution for your motor control needs!
