Weintek TK8072iP | Versatile 7-Inch HMI with Ethernet and Multi-Protocol Support

Overview

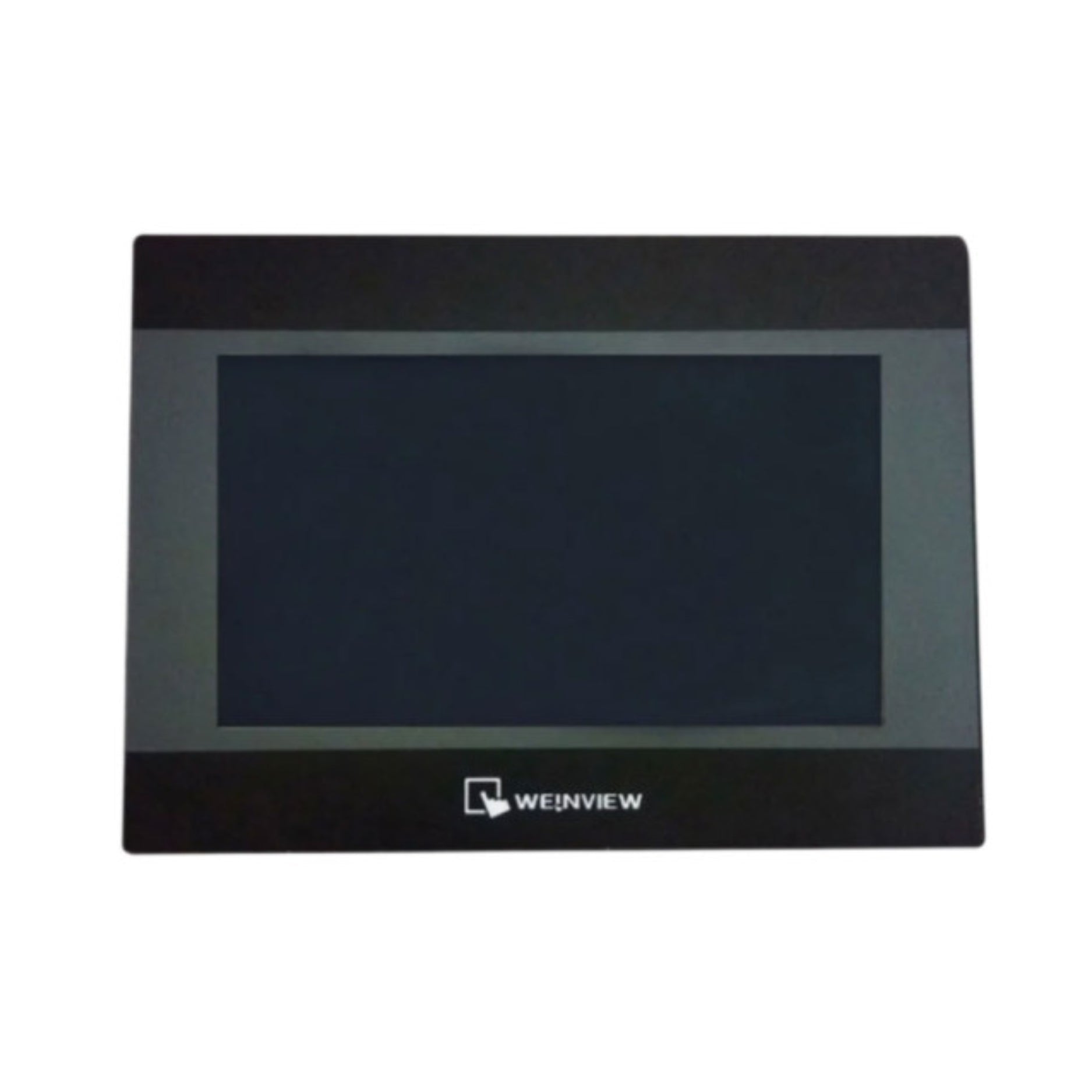

The Weintek TK8072iP is a cost-effective 7-inch HMI panel tailored for industrial environments requiring reliable performance and wide communication support. With its resistive touch screen, Ethernet, RS-232/RS-485 serial ports, and compatibility with EasyBuilder Pro, this model is perfect for basic to intermediate automation systems.

Key Features

• 7" Resistive Touchscreen – 800x480 resolution for clear, responsive interface

• Ethernet Connectivity – Ensures seamless integration into industrial networks

• Dual Serial Ports – RS-232 and RS-485 (2W/4W) for PLC communication

• Fanless Design – Quiet, efficient operation without mechanical wear

• Compact Housing – Ideal for tight installation spaces

• EasyBuilder Pro Software – Streamlined HMI configuration and updates

• Front Panel IP65 – Resists water and dust ingress

Technical Specifications

• Model: TK8072iP

• Display Type: 7” TFT LCD, 800 x 480 resolution

• Touch Panel: 4-wire resistive

• CPU: 32-bit RISC processor

• Memory: 256MB Flash / 128MB RAM

• Ethernet: 1 x 10/100 Mbps

• Serial Ports:

  • COM1: RS-232

  • COM2: RS-485 (2W/4W)

• USB Host: 1 x USB 2.0

• SD Card Slot: SD/SDHC supported

• Power Input: 24V DC ±15%

• Power Consumption: ~400 mA @ 24VDC

• Panel Cutout: 192 x 138 mm

• Dimensions (WxHxD): 200 x 146 x 36 mm

• Operating Temperature: 0°C to +50°C

• Mounting: Panel mount

• Front Panel Protection: IP65

• Software: EasyBuilder Pro

Applications

• Compact Machine Interfaces

• Packaging Equipment Panels

• Energy Management Displays

• OEM Automation Systems

• Process Visualization

Why Choose the TK8072iP?

• Affordable and reliable for small to mid-scale automation

• Flexible communication with various PLCs and networks

• Easy to program, deploy, and maintain

Order Now

Now available for global shipping.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
