Weintek TK6071iQ | 7-Inch HMI with Ethernet

Weintek TK6071iQ | Compact 7-Inch HMI with Ethernet and Serial Communication

Overview

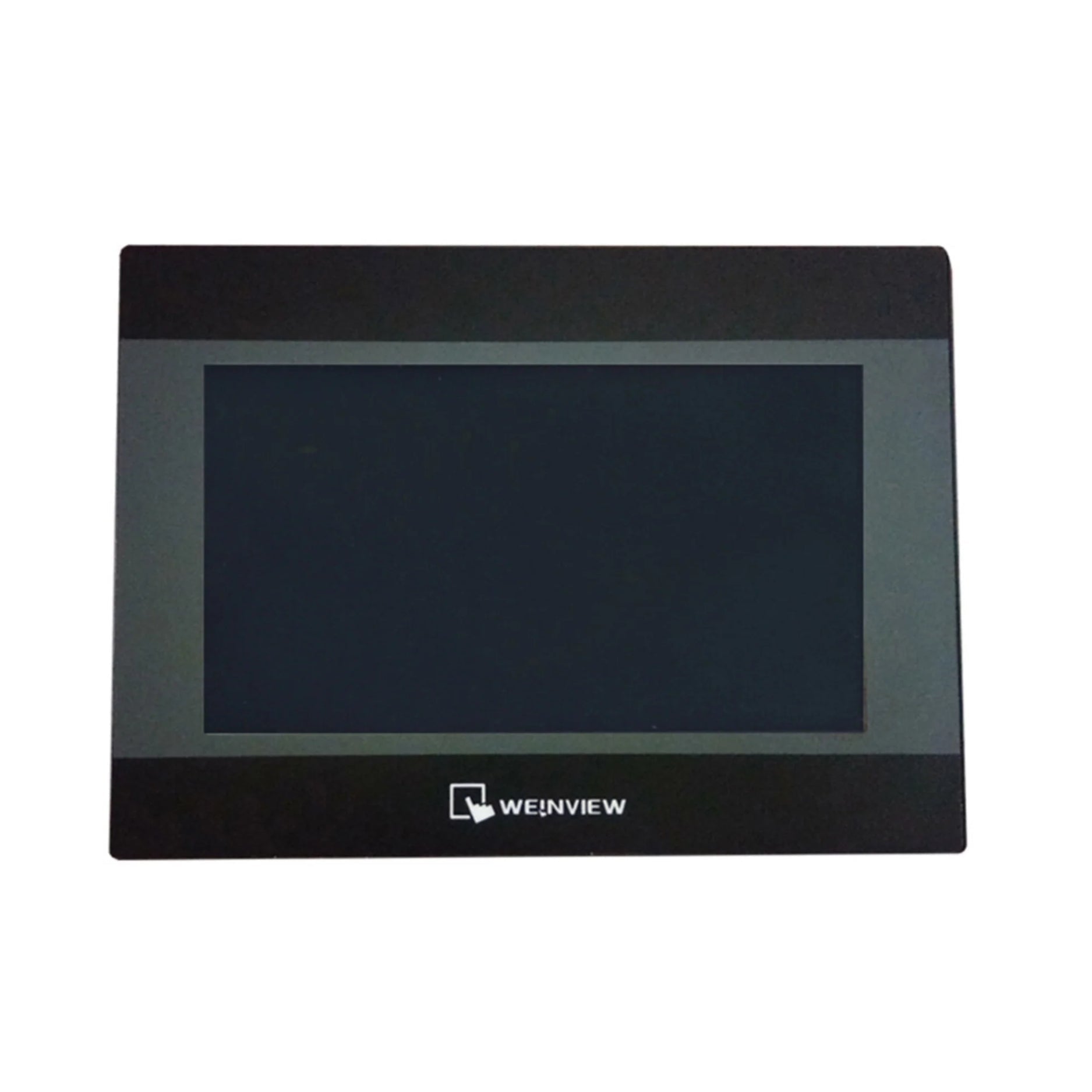

The Weintek TK6071iQ is a 7-inch resistive touch HMI designed for basic yet reliable operation in industrial automation environments. Featuring Ethernet connectivity, RS-232 and RS-485 serial ports, and a compact form factor, it offers an ideal solution for small-to-medium machinery interfaces. The TK series supports Weintek’s EasyBuilder Pro software, making it easy to configure and integrate with various PLC brands.

Key Features

• 7" Resistive Touchscreen – 800x480 resolution for clear data visualization

• Ethernet Port – Seamless network connectivity and remote access

• RS-232 and RS-485 Ports – Wide PLC communication compatibility

• Compact Design – Perfect for tight panel spaces

• NEMA4/IP65 Front Panel – Resistant to water and dust

• USB Host & SD Card Slot – Supports backup and data logging

• EasyBuilder Pro Compatible – Fast and flexible project development

Technical Specifications

• Model: TK6071iQ

• Display Type: 7” TFT LCD, 800 x 480 resolution

• Touch Panel: 4-wire resistive

• CPU: 32-bit RISC processor

• Memory: 256MB Flash / 128MB RAM

• Ethernet Port: 1 x 10/100 Mbps

• Serial Ports:

  • COM1: RS-232

  • COM2: RS-485 (2W)

• USB Host: 1 x USB 2.0

• SD Slot: SD card support for backup/logging

• Power Input: 24V DC ±15%

• Power Consumption: ~400 mA @ 24VDC

• Panel Cutout: 192 x 138 mm

• Dimensions (WxHxD): 200 x 146 x 34 mm

• Operating Temperature: 0°C to +50°C

• Mounting: Panel mount

• Front Panel Protection: IP65

• Software: EasyBuilder Pro

Applications

• Small Machine Control Panels

• Basic HMI Interfaces

• Packaging Equipment

• Energy Monitoring Systems

• OEM Machine Displays

Why Choose the TK6071iQ?

• Cost-effective HMI with essential features

• Compact and rugged for industrial environments

• Reliable performance for standard control tasks

Order Now

Available for worldwide shipping.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
