Weintek MT8106iE | 10.1" HMI Touchscreen

Weintek MT8106iE | 10.1" Industrial HMI Touchscreen Panel

Overview

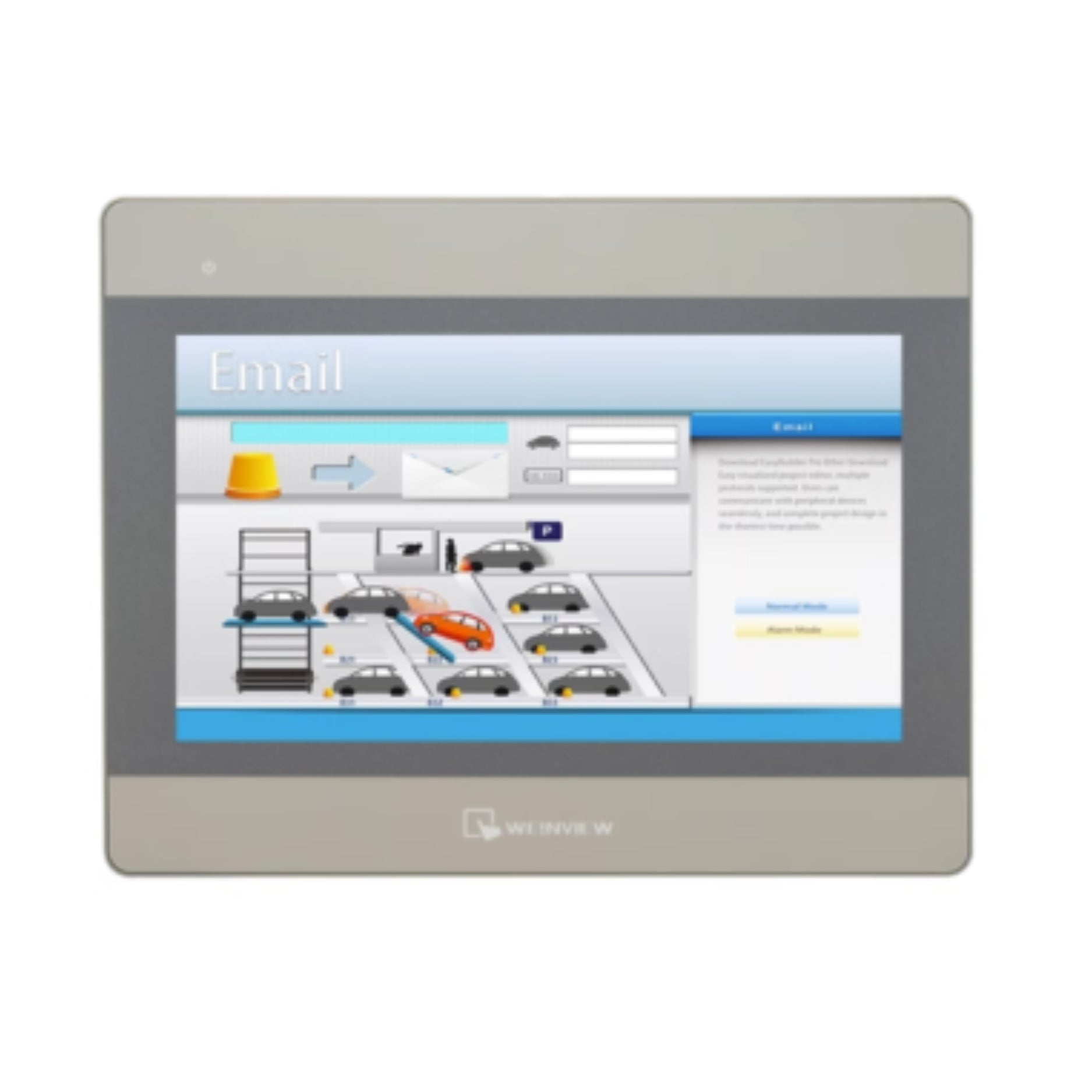

The Weintek MT8106iE is a high-performance 10.1-inch HMI (Human-Machine Interface) designed for industrial automation applications. Featuring a 1024×600 TFT LCD display with LED backlight, it offers clear visuals and a responsive 4-wire resistive touch panel. Powered by a dual-core RISC CPU, it ensures smooth operation and quick response times. With 256 MB Flash memory and 128 MB RAM, it provides ample space for complex applications.

The MT8106iE supports multiple communication interfaces, including Ethernet, USB Host, and RS-232/RS-485 serial ports, allowing seamless integration with various industrial devices. Its IP65-rated front panel and fanless design make it suitable for harsh industrial environments.

Key Features

• 10.1" TFT LCD Display – 1024×600 resolution with LED backlight

• Dual-Core RISC CPU – Ensures efficient processing

• Memory – 256 MB Flash, 128 MB RAM

• Touch Panel – 4-wire resistive type for reliable input

• Communication Ports:

  • Ethernet – 10/100 Base-T

  • USB Host – USB 2.0 x 1

  • Serial Ports:

    • COM1: RS-485 2W

    • COM2: RS-485 2W/4W

    • COM3: RS-485 2W/4W or RS-232 2W

• Power Supply – 24V DC ±20%

• Built-in RTC – Real-time clock for time-sensitive applications

• Operating Temperature – 0°C to 55°C

• Protection – IP65-rated front panel for dust and water resistance

• Mounting – Panel mount with dimensions 271 x 213 x 36.4 mm

• Software Compatibility – Supports EasyBuilder Pro V6.08.01 or later

Applications

• Industrial Automation – PLC and machine control interfaces

• Process Monitoring – Real-time data visualization

• Factory Equipment – User-friendly control panels

• Building Management Systems – HVAC and lighting control

Why Choose the Weintek MT8106iE?

• High-Resolution Display – Clear and detailed visuals for operators

• Robust Communication Options – Integrates with various industrial protocols

• Durable Design – Suitable for demanding industrial environments

• User-Friendly Software – Easy configuration with EasyBuilder Pro

Order Now

Available for immediate shipping.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
