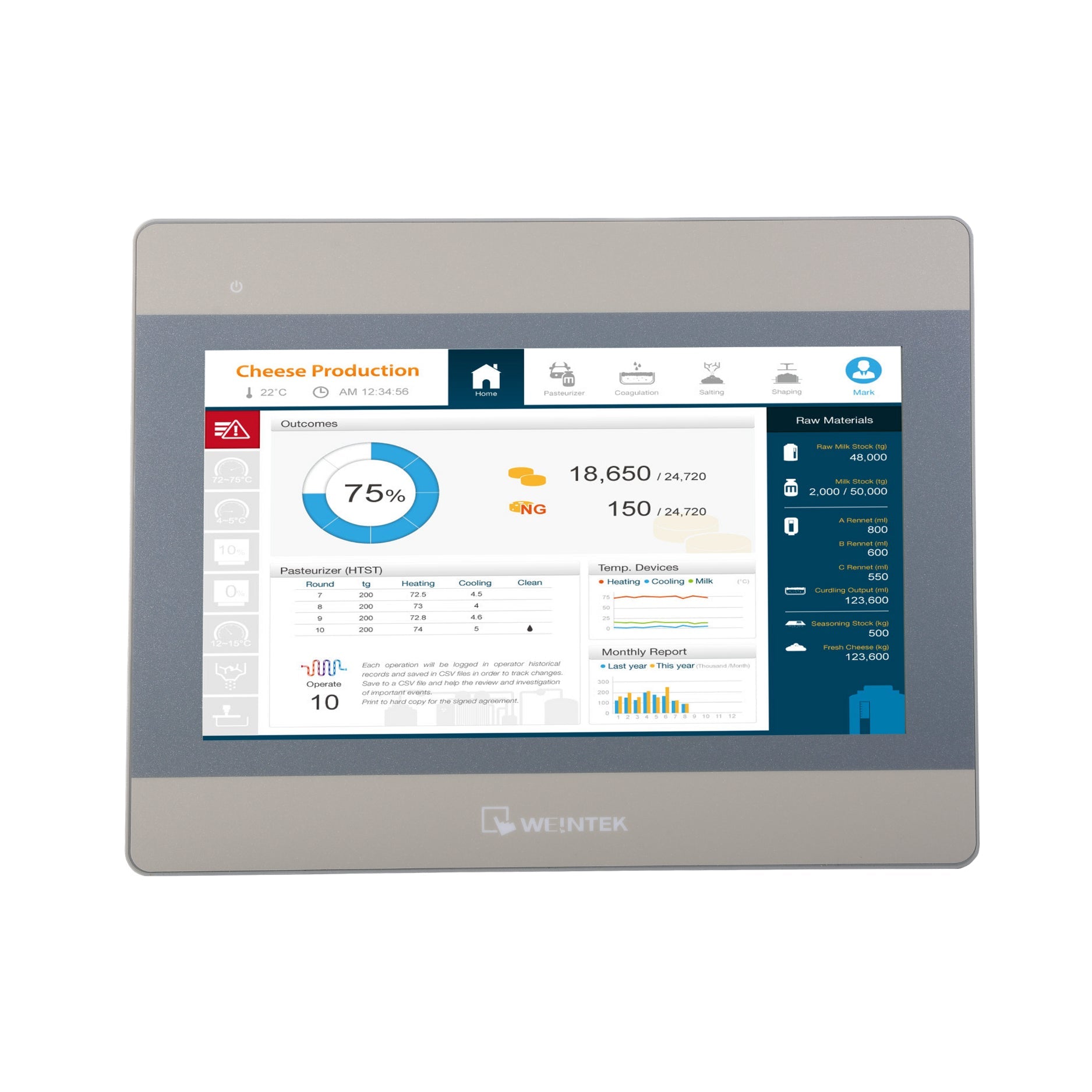

Weintek MT8103iE | 10.1-Inch HMI Touchscreen

Weintek MT8103iE | 10.1-Inch Industrial HMI with Ethernet, Wi-Fi, Serial, and USB

Overview

The Weintek MT8103iE is a versatile 10.1-inch HMI touchscreen built for demanding industrial environments. With a 1024x600 resolution TFT display, Wi-Fi connectivity, Ethernet, and multiple serial ports, this model provides flexible integration with a wide range of PLCs. It’s easily configured using EasyBuilder Pro software and is ideal for OEM systems, factory automation, and data visualization.

Key Features

• 10.1" TFT LCD Display – 1024x600 resolution, 16.7M colors

• 4-Wire Resistive Touchscreen – Accurate and responsive control

• Ethernet Port (10/100 Mbps) – Reliable wired connectivity

• Built-in Wi-Fi – IEEE 802.11 b/g/n wireless communication

• RS-232 & RS-485 Serial Ports – Compatible with most PLC protocols

• USB Host Port – Supports data logging and external devices

• Fanless Cooling Design – Silent operation and long-term reliability

• Built-in Real-Time Clock (RTC) – For scheduled tasks and timestamped logs

• NEMA4 / IP65 Front Panel Protection – Resists dust and water

Technical Specifications

• Model: MT8103iE

• Display Size: 10.1 inches

• Resolution: 1024 x 600 pixels

• Touchscreen Type: 4-wire resistive

• Processor: 32-bit RISC Cortex-A8, 600 MHz

• Memory: 128 MB Flash / 128 MB RAM

• Ethernet: 1 x 10/100 Mbps

• Wi-Fi: Built-in 802.11 b/g/n

• Serial Ports:

  • COM1: RS-232/RS-485 2W/4W

  • COM2: RS-485 2W/4W

  • COM3: RS-232/RS-485 2W

• USB Host: 1 x USB 2.0

• Power Supply: 24V DC ±20%

• Power Consumption: 650 mA @ 24V DC

• Dimensions (WxHxD): 271 x 213 x 36.4 mm

• Panel Cutout: 260 x 202 mm

• Operating Temperature: 0°C to +50°C

• Mounting Type: Panel mount

• Front Panel Rating: NEMA4 / IP65

• Certifications: CE, cULus

• Software Support: EasyBuilder Pro

Applications

• Industrial Automation Panels

• OEM Machine Interfaces

• Remote Monitoring via Wi-Fi

• SCADA and PLC Visualization Systems

Why Choose the MT8103iE?

• Wi-Fi and Ethernet connectivity in one compact HMI

• Wide PLC protocol support with RS-232/RS-485 ports

• Durable and user-friendly design for industrial environments

Order Now

In stock and available for global shipping.
