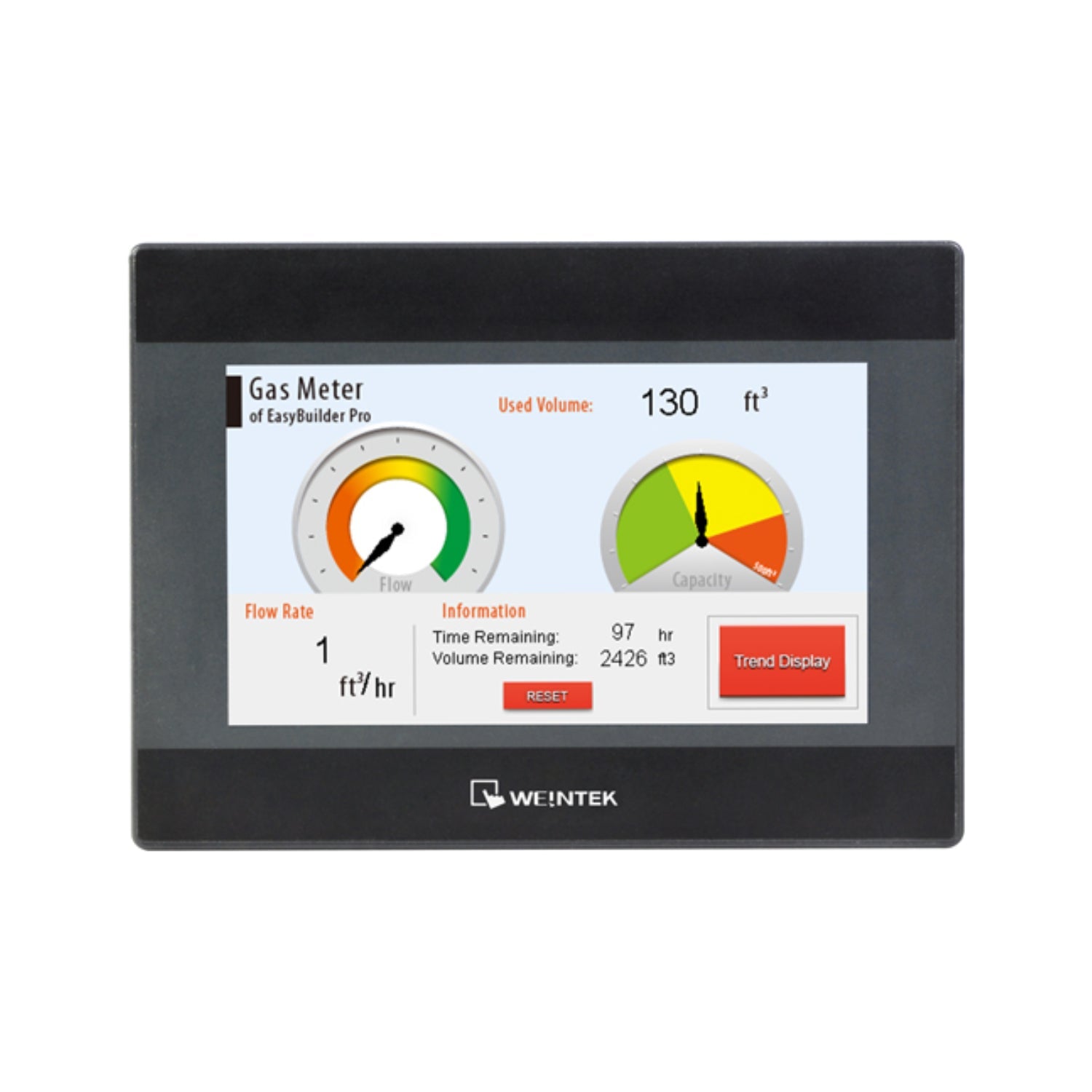

Weintek MT8071iP | 7-Inch HMI Touchscreen

Weintek MT8071iP | 7-Inch Human Machine Interface (HMI) with Ethernet & Serial Ports

Overview

The Weintek MT8071iP is a 7-inch HMI touchscreen panel designed for industrial automation and control applications. Featuring a bright 800x480 TFT LCD, Ethernet connectivity, and dual serial ports, this model supports a wide range of PLCs and controllers via the intuitive EasyBuilder Pro configuration software.

Compact and reliable, the MT8071iP is ideal for factory automation, machine interfaces, and OEM equipment, offering excellent performance and flexible communication in a cost-effective package.

Key Features

• 7" 800x480 TFT LCD – Bright and responsive touchscreen display

• Ethernet Port (10/100 Mbps) – Supports remote access and data exchange

• Dual Serial Ports – RS-232 and RS-485 for multi-device communication

• EasyBuilder Pro Support – Free, powerful HMI programming software

• Slim Profile – Space-saving design for panel mounting

• High Compatibility – Supports hundreds of PLC protocols

• Built-in RTC & USB Host – For data logging and peripheral connection

Technical Specifications

• Model: MT8071iP

• Display: 7” TFT LCD, 800x480 resolution, 16.7M colors

• Touchscreen: 4-wire resistive

• CPU: 32-bit RISC processor

• Memory: 128MB Flash, 128MB RAM

• Communication Ports:

  • 1x Ethernet (10/100 Mbps)

  • 1x RS-232

  • 1x RS-485 2W/4W

  • 1x USB Host

• Input Voltage: 24V DC (±15%)

• Power Consumption: 400 mA @ 24V DC

• Dimensions (WxHxD): 200.1 x 146.1 x 36 mm

• Panel Cutout: 192 x 138 mm

• Operating Temperature: 0°C to +50°C

• Software: EasyBuilder Pro (free download)

• Mounting: Panel mount

Applications

• Industrial Automation Panels

• OEM Machine Interfaces

• SCADA Integration

• PLC Visualization and Control

Why Choose the MT8071iP?

• Reliable and cost-effective HMI solution

• Supports Ethernet and serial communication

• Wide protocol support for multi-brand PLCs

Order Now

In stock and ready for international shipping.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
