Overview

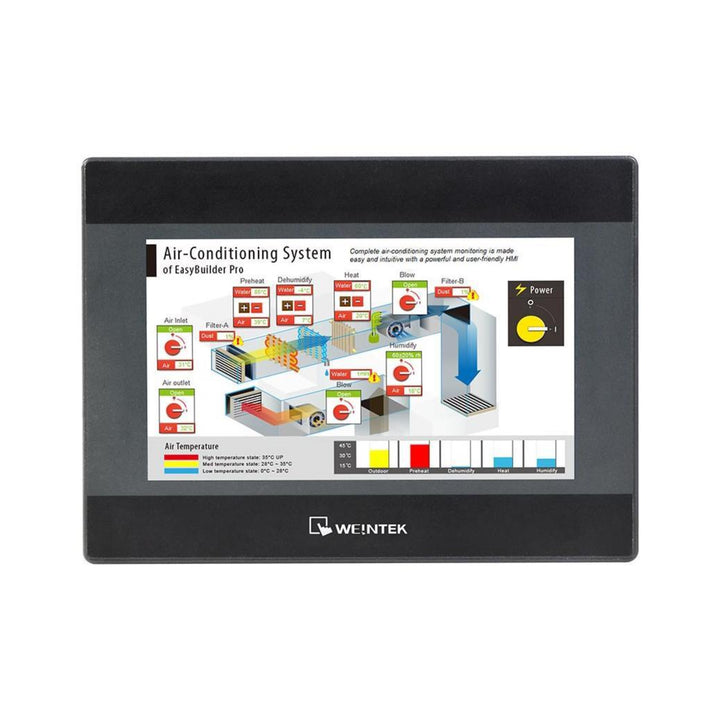

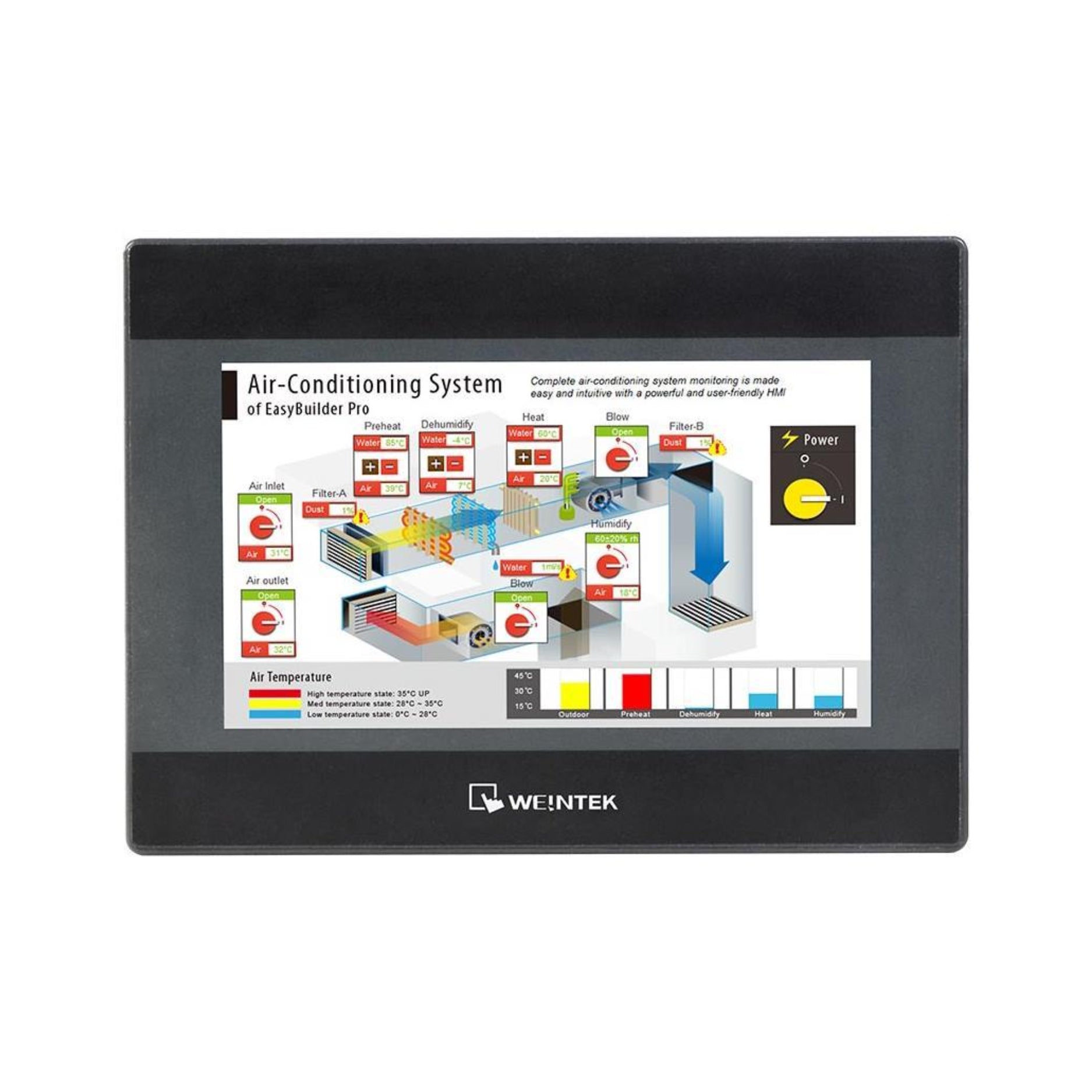

The Weintek MT6071iP is a 7-inch Human-Machine Interface (HMI) designed for industrial automation applications. Featuring a vibrant TFT LCD display and a 600MHz Cortex-A8 processor, it offers reliable performance for monitoring and controlling industrial processes. With built-in serial communication ports, it ensures seamless integration with various PLCs and control systems.

Key Features

• Display: 7" TFT LCD, 800 x 480 resolution, 16 million colors

• Touchscreen: 4-wire resistive touch panel

• Processor: 32-bit RISC Cortex-A8 600MHz CPU

• Memory: 128 MB Flash, 128 MB RAM

• Communication Ports:

  • COM1: RS-232

  • COM2: RS-485 2W/4W

• USB Ports:

  • 1 x USB 2.0 Host

  • 1 x USB 2.0 Client (Micro USB)

• Power Supply: 10.5~28VDC

• Mounting: Panel mount with NEMA4 / IP65 compliant front panel

• Operating Temperature: 0°C to 50°C (32°F to 122°F)

• Software: Compatible with EasyBuilder Pro

• Certifications: CE marked

Technical Specifications

• Dimensions (W x H x D): 200.4 x 146.5 x 34 mm

• Panel Cutout: 192 x 138 mm

• Weight: Approx. 0.52 kg

• Backlight: LED, >30,000 hours lifespan

• Contrast Ratio: 500:1

• Brightness: 300 cd/m²

• Viewing Angle (T/B/L/R): 70°/50°/70°/70°

• Protection Structure: NEMA4 / IP65 compliant front panel

• Power Consumption: 500mA @ 24VDC

• Isolation Resistance: Exceeds 50MΩ at 500VDC

• Vibration Endurance: 10 to 25Hz (X, Y, Z direction 2G 30 minutes)

• Enclosure Material: Plastic

• Real-Time Clock (RTC): Built-in

• SD Card Slot: Not available

• USB Client: USB 2.0 x 1 (Micro USB)

• CAN Bus: Not available

• HDMI: Not available

• Audio Output: Not available

• RS-485 Dual Isolation: Not available

• Weincloud EasyAccess 2.0: Optional

Applications

• Factory Automation: Monitor and control production lines

• Building Management Systems: Interface for HVAC, lighting, and security systems

• Energy Management: Display and control for renewable energy systems

• Process Control: Visualization and control in chemical, pharmaceutical, and food industries

Why Choose the MT6071iP?

• Enhanced Performance: 600MHz Cortex-A8 processor ensures smooth operation

• Versatile Connectivity: Multiple serial communication ports for flexible integration

• User-Friendly Interface: Intuitive touchscreen for easy operation

• Durable Design: Robust construction suitable for industrial environments
