Weintek MT506MV | Compact 5.6" Touchscreen HMI for Industrial Environments

Overview

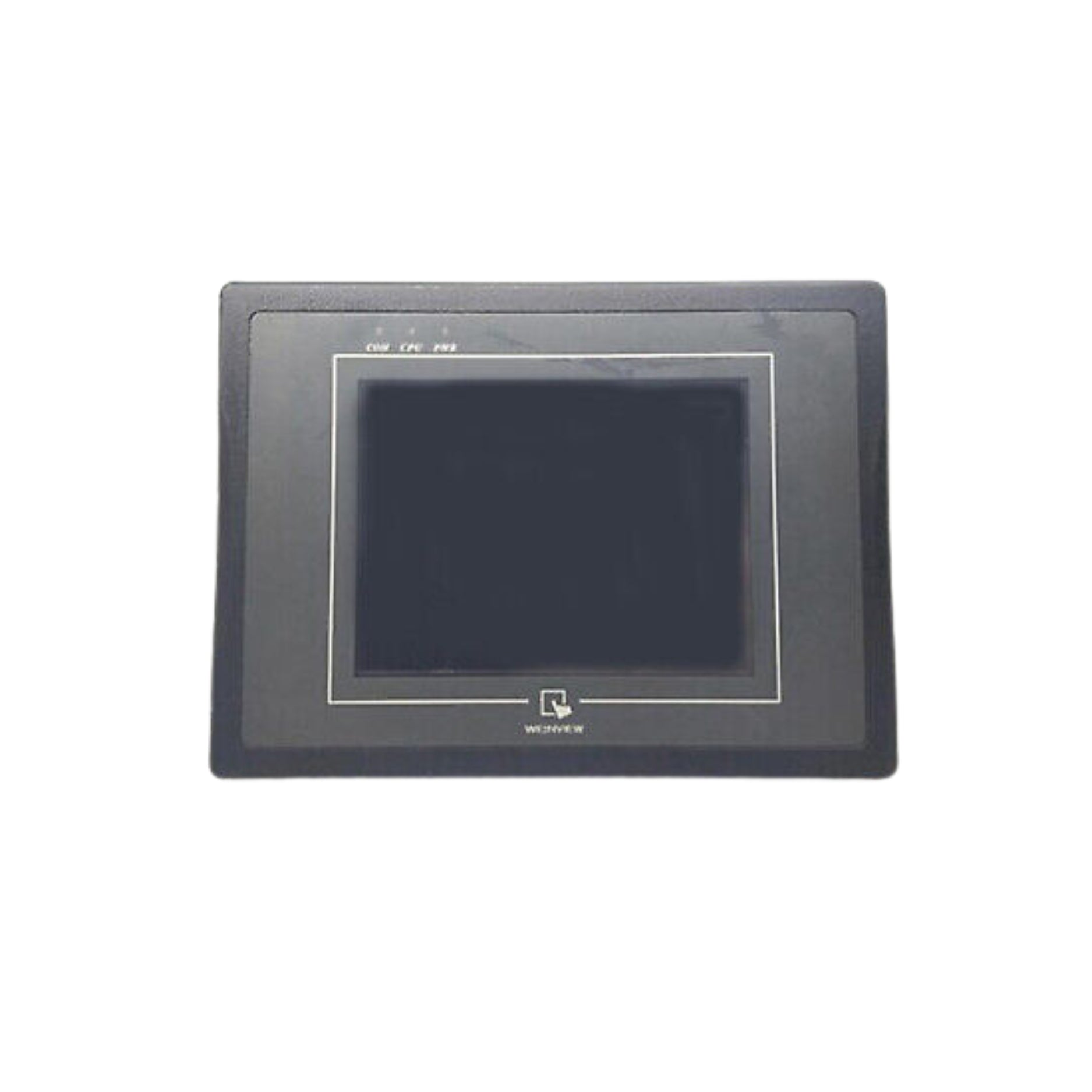

The Weintek MT506MV is a compact 5.6-inch Human Machine Interface (HMI) designed for real-time machine control and operator interaction in industrial systems. It features a vibrant TFT LCD with a resolution of 320×234 pixels, offering a clear user interface in a small form factor.

Key Features

• Display: 5.6" TFT LCD, 320×234 resolution

• Color Depth: 256 colors

• Touchscreen: 4-wire resistive

• Processor: 32-bit RISC CPU, 200 MHz

• Memory: 2 MB flash memory

• Power Supply: 24 V DC ±5%

• Interfaces:

  • COM1: RS-232

  • COM2: RS-232/RS-485

• Built-in Real-Time Clock (RTC)

• Mounting Style: Panel mount

• Front Panel Protection: IP65 compliant

• Material: Plastic enclosure

• Dimensions (W×H×D): 204 × 150 × 48 mm

• Panel Cutout: 192 × 138 mm

• Weight: Approx. 0.84 kg

• Operating Temperature: 0 °C to 45 °C

• Storage Temperature: –20 °C to 60 °C

• Humidity: 10%–90% RH (non-condensing)

Applications

• Machine interface panels

• Manufacturing process monitoring

• Small-scale automation systems

• Packaging and labeling equipment

Why Choose Weintek MT506MV?

• Compact footprint for tight spaces

• Reliable touchscreen operation

• Dual serial ports for flexible integration

• IP65-rated front panel for industrial use

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
