Weintek cMT2079X | 7-Inch Smart HMI | Capacitive Touch

Weintek cMT2079X | High-Performance 7-Inch Capacitive Touch Smart HMI

Overview

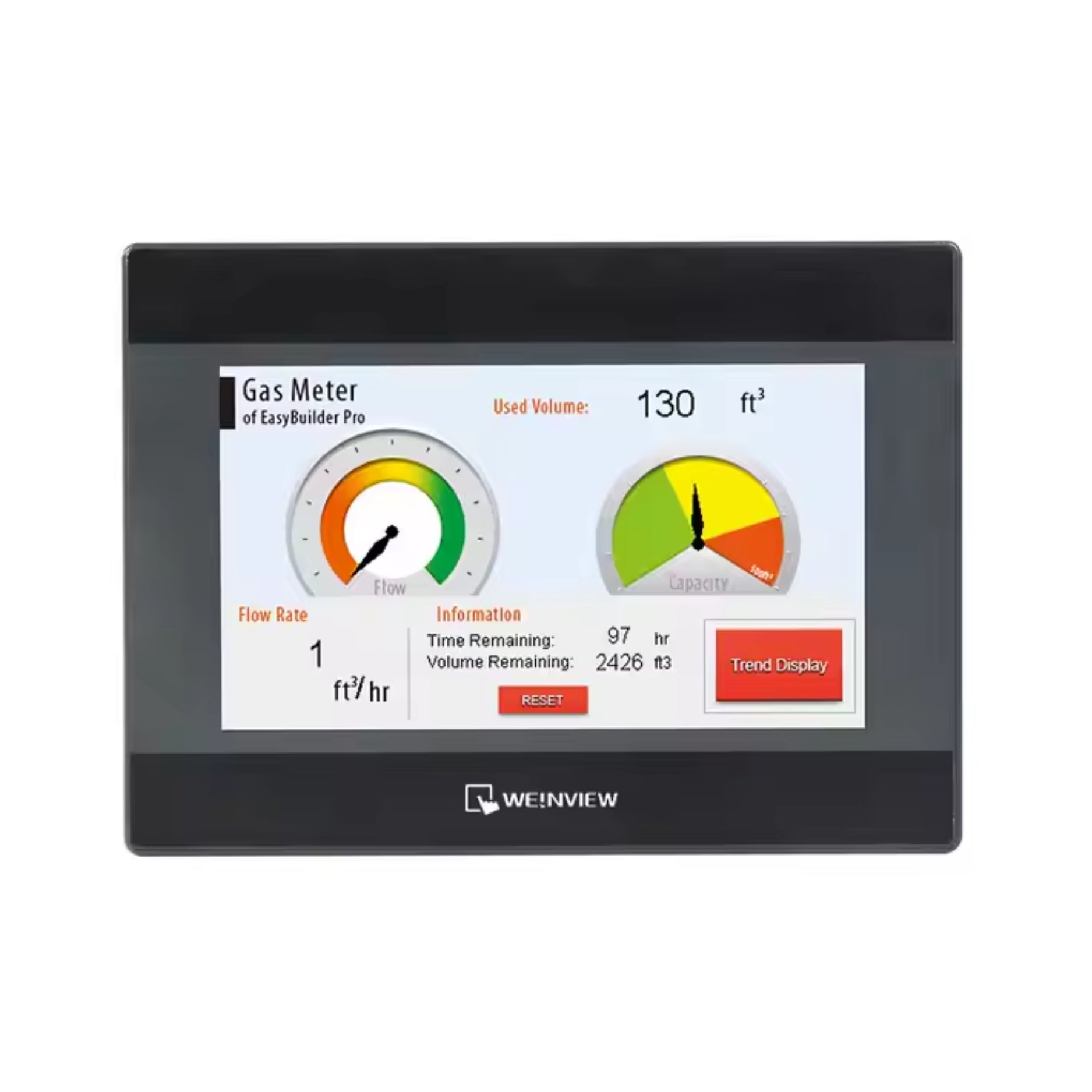

The Weintek cMT2079X is a next-generation 7-inch smart HMI that combines elegant design with cutting-edge performance. Built around a powerful quad-core processor, this capacitive-touch HMI supports smooth graphics, multi-protocol communication, and cloud connectivity—making it ideal for advanced industrial automation and IoT-ready applications.

With both Ethernet and serial communication, support for EasyAccess 2.0, and compatibility with EasyBuilder Pro, the cMT2079X is designed to simplify integration in complex control environments.

Key Features

• 7” Capacitive Touchscreen – 1024x600 resolution, multi-touch support

• Quad-Core CPU – Ultra-fast response and smooth animations

• Advanced Graphics Engine – Modern UI performance and transitions

• Dual Ethernet Ports – Ideal for OT/IT separation or remote access

• RS-232/RS-485 Ports – Broad PLC connectivity support

• USB Host & SD Card Slot – For logging, backup, and device connections

• MQTT, SQL, OPC UA, and Modbus TCP – Built-in IIoT-ready protocols

• EasyAccess 2.0 Support – Secure remote monitoring (license required)

• Fanless Design – Silent and reliable operation

• Robust Housing – IP65-rated front panel

Technical Specifications

• Model: cMT2079X

• Display: 7" TFT LCD, 1024 x 600 pixels, 16.7M colors

• Touch Panel: Capacitive multi-touch

• CPU: ARM Cortex-A17 Quad-Core

• Memory: 4GB eMMC, 1GB RAM

• Ethernet: 2 x 10/100/1000 Mbps

• Serial Ports:

  • COM1: RS-232

  • COM2/3: RS-485 2W/4W

• USB Host: 1 x USB 2.0

• SD Card Slot: Supports SD/SDHC

• Power Supply: 24V DC ±20%

• Power Consumption: Approx. 450 mA @ 24VDC

• Dimensions (WxHxD): 200 x 146 x 36 mm

• Panel Cutout: 192 x 138 mm

• Operating Temperature: 0°C to +50°C

• Mounting: Panel mount

• Front Panel Protection: IP65

• Software: EasyBuilder Pro (latest version recommended)

Applications

• Smart Factory Interfaces

• Industrial IoT Gateways

• Machine Control Panels

• SCADA Visualization Nodes

• OEM Automation Systems

Why Choose the cMT2079X?

• Modern UI with multi-touch experience

• High-performance hardware for demanding HMIs

• Built-in protocols and remote access tools for IIoT integration
