WAGO 787-1664

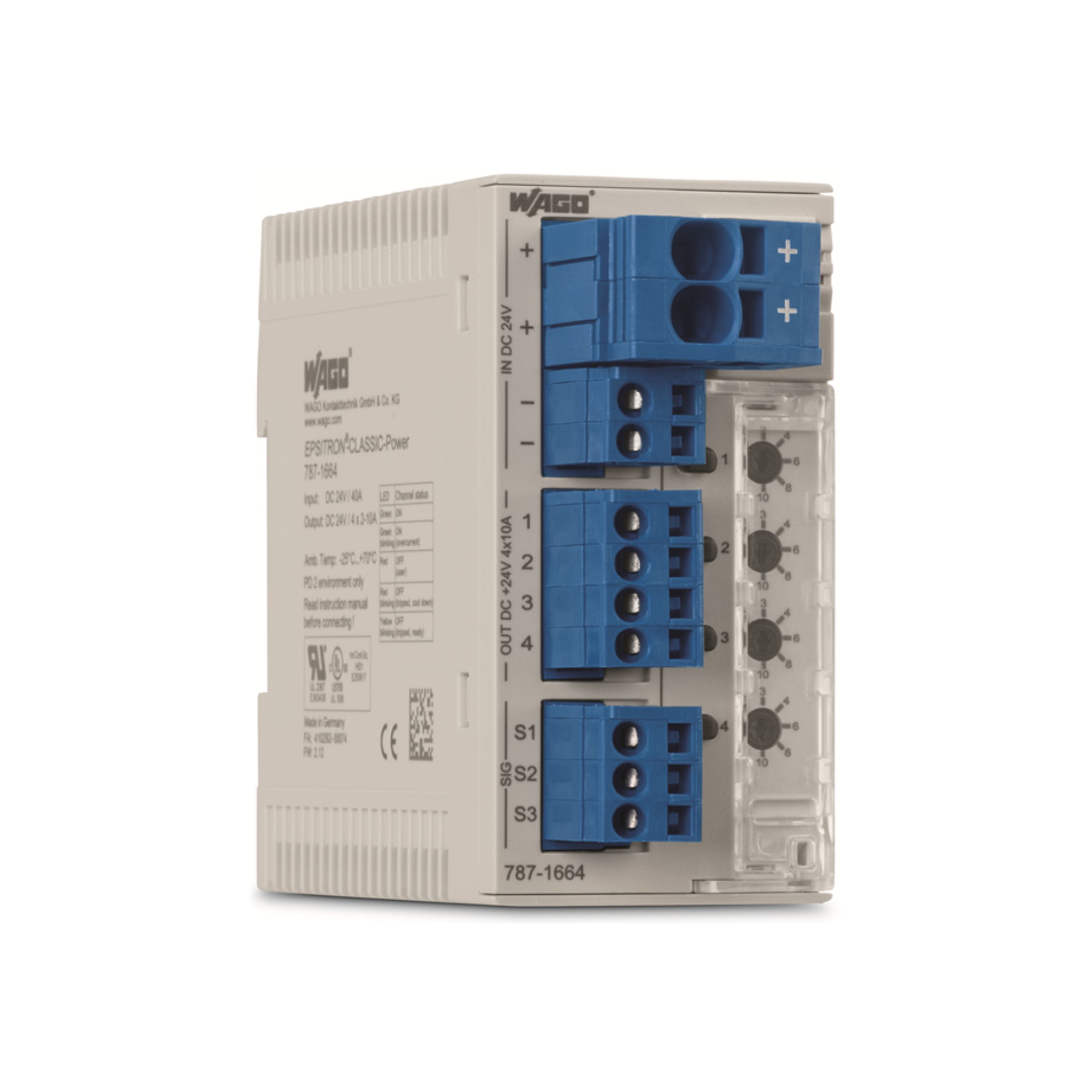

WAGO 787-1664 – 4-Channel Electronic Circuit Breaker

Overview

The WAGO 787-1664 is a 4-channel electronic circuit breaker designed for 24 VDC systems. Each channel can be configured with fixed or adjustable current limits depending on the variant, providing reliable overload and short-circuit protection. With NEC Class 2 compliance and compact DIN-rail design, this breaker is well suited for industrial automation and control panel applications.

Key Features

• Four independent protected output channels

• 24 VDC input voltage

• Adjustable or fixed current ratings depending on version

• Current range up to 10 A per channel

• NEC Class 2 compliance for safe installations

• Active current limitation during overload conditions

• Clear status and diagnostic indicators per channel

• Compact DIN-rail mounting for space efficiency

Technical Specifications

Part Number: 787-1664
Number of Channels: 4
Rated Voltage: 24 VDC
Current Range per Channel: up to 10 A (depending on variant)
Protection Type: Electronic overcurrent and short-circuit protection
Breaker Type: Active current limiting with auto-restart
Compliance: NEC Class 2
Mounting: 35 mm DIN-rail
Status Indication: LEDs per channel for diagnostics and overload
Isolation: System side vs output side
Operating Temperature: 0 … +55 °C
Storage Temperature: −25 … +85 °C
Protection Rating: IP20
Housing Width: approx. 45 mm
Height: approx. 100 mm
Depth: approx. 70 mm
Weight: approx. 150 g

Applications

• Protection of 24 VDC loads such as sensors, actuators, motors, or valves

• Industrial control panels requiring multiple protected outputs in one device

• Installations where adjustable current ratings improve flexibility

• Systems where NEC Class 2 compliance is required

Why Choose the WAGO 787-1664

• Four channels in one compact unit reduce wiring and space requirements

• Adjustable current ratings give flexibility for different load types

• Active current limitation protects equipment and wiring during faults

• Clear diagnostics simplify troubleshooting and maintenance

• Designed for safe, reliable use in industrial automation environments

Order Now

The WAGO 787-1664 is part of the EPSITRON electronic circuit breaker series and is available for purchase. Ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
