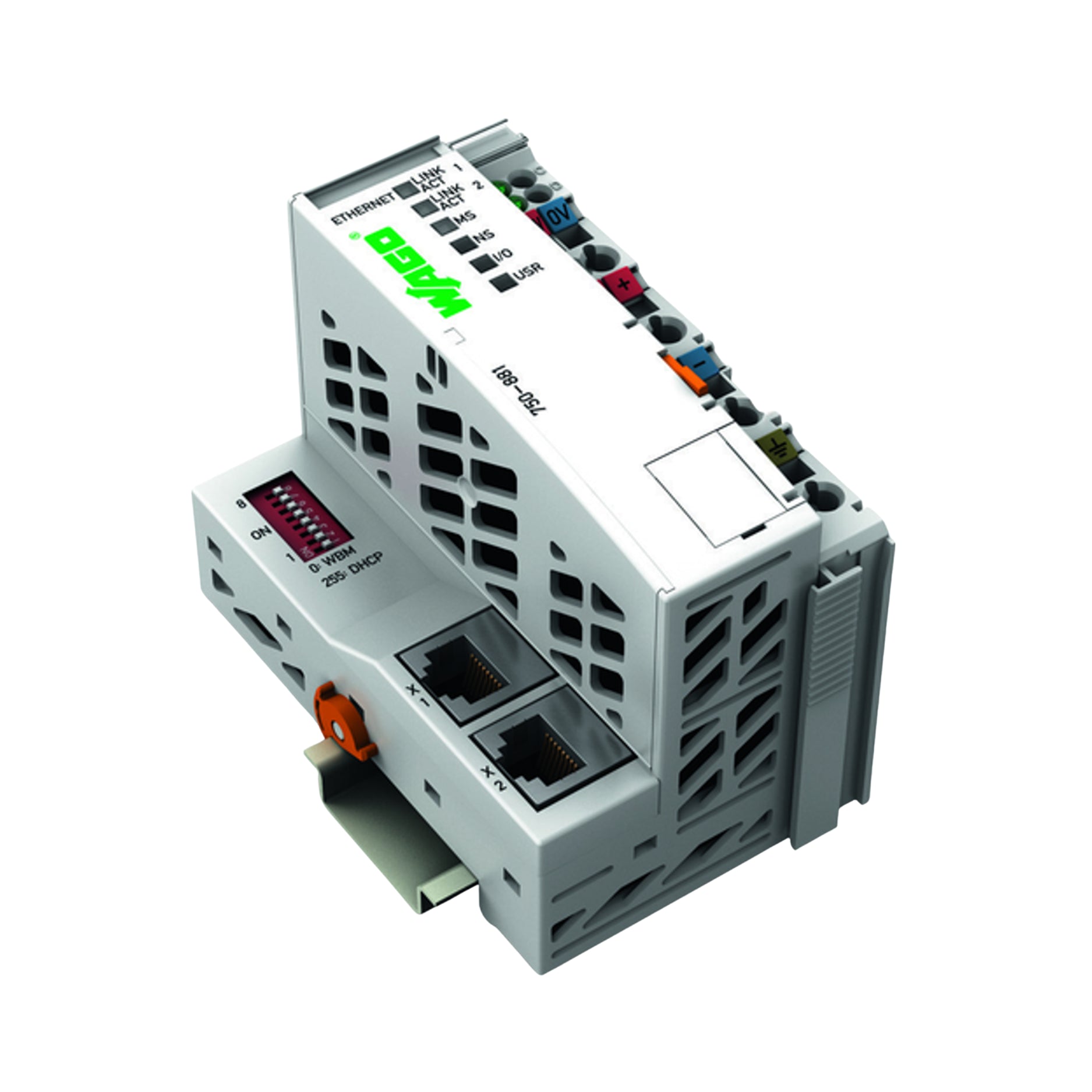

WAGO 750-881 – Ethernet Controller (3rd Generation)

Overview

The WAGO 750-881 is a programmable Ethernet controller that connects standard Ethernet networks to the WAGO I/O System. It supports EtherNet/IP and Modbus TCP/UDP, includes an integrated switch with two RJ-45 interfaces, and automatically builds a process image of all attached I/O modules. Programming is IEC-61131-3-compliant. The device includes diagnostic LEDs and supports both system-side and field-side power via jumper contacts.

Key Features

• Supports EtherNet/IP, Modbus TCP/UDP, and standard Ethernet protocols (HTTP, DHCP, DNS, SNTP, SNMP, FTP)

• Dual RJ-45 Ethernet ports with integrated switch (Auto-Negotiation, Auto-MDI(X))

• IEC-61131-3 programming languages (IL, LD, FBD, ST, SFC, CFC)

• Integrated Web server for configuration and status monitoring

• Capacity for up to 64 I/O modules (up to 250 with bus extension)

• Large process images: 1020 words input / 1020 words output

• 32-bit CPU, multitasking, with battery-backed real time clock

Technical Specifications

• Part Number: 750-881

• Communication Protocols: EtherNet/IP, Modbus TCP & UDP

• Ethernet Speed: 10/100 Mbit/s

• Transmission Medium: Twisted pair, Cat 5 or better, 100 Ω

• Max I/O Modules (without extension): 64

• Max I/O Modules (with bus extension): 250

• Max Process Image: 1020 words in / 1020 words out

• Program Memory: 1,024 KB

• Data Memory (RAM): 512 KB

• Retain Memory (non-volatile): 32 KB

• System Power Supply: 24 VDC (-25% … +30%)

• Nominal Input Current at 24 V: ~500 mA

• Efficiency (at nominal load): ~90%

• System Supply (5 V side) Current: ~450 mA

• Total Current for System Supply (for I/O modules): 1,700 mA

• Field Supply Voltage: 24 VDC via power jumper contacts

• Power Jumper Contacts Capacity: 10 A

• Number of Outgoing Power Jumper Contacts: 3

• Isolation Voltage (System vs Field): 500 V

• Connection Type:
   - Communication: 2 × RJ-45
   - System Supply: 2 × CAGE-CLAMP®
   - Field Supply: 6 × CAGE-CLAMP®

• Conductor Size (solid/stranded): 0.08 … 2.5 mm² (AWG 28 … 14)

• Wire Strip Length: 8 … 9 mm

• Dimensions (W × H × D): ~61.5 × 65 × 100 mm

• Height from top edge of DIN-rail: ~64.7 mm

• Weight: ~159 g

• Operating Temperature: 0 … +55 °C

• Storage Temperature: -25 … +85 °C

• Protection Rating: IP20

• Pollution Degree: 2

Applications

• Programmable fieldbus controller in industrial Ethernet setups

• Integration of mixed I/O (digital, analog) modules in automation systems

• Where protocol support for EtherNet/IP and Modbus is required

• Systems needing large I/O images and high module counts

Why Choose the WAGO 750-881

• Dual Ethernet ports with built-in switching reduce external hardware

• Strong protocol flexibility (EtherNet/IP, Modbus, etc.) for various automation networks

• Robust performance with large memory and support for many modules

• Reliable isolation, good efficiency, and compact footprint

Order Now

The WAGO 750-881 is part of the WAGO I/O System 750 controller family. Available for purchase. Ships worldwide.
