WAGO 750-626

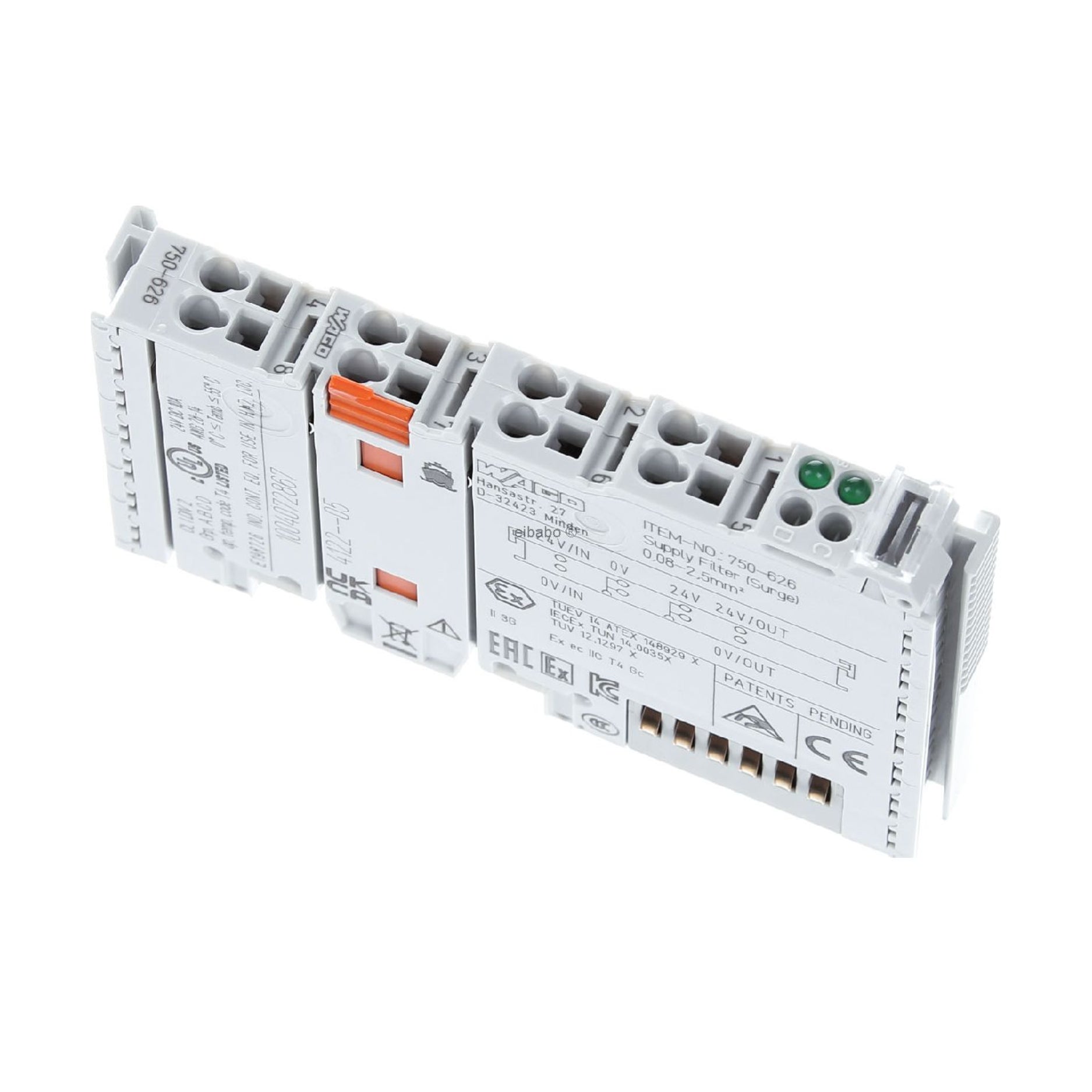

WAGO 750-626 – 24 VDC Supply Filter Module

Overview

The WAGO 750-626 is a protection/filter module for 24 VDC system and field power supplies in the WAGO I/O System 750. It provides overvoltage and surge suppression, improves power quality, and helps ensure certified operation in marine, offshore, and industrial applications. It includes LEDs for status indication and high isolation versions for enhanced safety.

Key Features

• 24 VDC supply filtering with surge / over-voltage protection

• Designed for both system supply and field-side power jumper contacts

• LED indicators for “system voltage OK” and “power jumper voltage OK”

• Power jumper output capacity of 10 A

• Versions available with high isolation and extended temperature range

• Wire connections using CAGE-CLAMP® terminals

Technical Specifications

Part Number: 750-626
Signal Type: Voltage (24 VDC)
Supply Voltage Tolerance: −25 % … +30 %
Maximum Current via Power Jumper Contacts: 10 A DC
Maximum System-Supply Current: 1.5 A (older hardware up to version 04: 1 A)
Number of Outgoing Power Jumper Contacts: 2
Connection Technology: CAGE-CLAMP® for both system and field supply sides
Wire Conductor Size (Solid / Stranded): 0.08 … 2.5 mm² (AWG 28 … 14)
Wire Strip Length: 8 … 9 mm
Width: ≈ 12 mm
Height: ≈ 100 mm
Depth: ≈ 69.8 mm
Depth from Top Edge of DIN-Rail: ≈ 62.6 mm
Operating Temperature: 0 … +55 °C (standard version)
Storage Temperature: −40 … +85 °C
Protection Rating: IP20
Pollution Degree: 2
EMC: Immunity per EN 61000-6-2; Emissions per EN 61000-6-4
Approvals: Marine certifications; variants optimized for insulation monitoring
Mounting: DIN-35 rail

Applications

• Filtering and protecting the 24 V supply line in I/O systems to guard against surges and over-voltage

• Use in marine or offshore installations to meet relevant safety and certification requirements

• Ensuring compliance and stable operation in systems employing power jumper contacts to supply field modules

• Improving power quality and reliability in industrial automation setups

Why Choose the WAGO 750-626

• Provides essential protection and filtration for sensitive I/O modules

• 10 A jumper capacity supports demanding field-side loads

• Status LED feedback for quick diagnostics of power supply health

• Modular version options for harsher environments and high isolation make it versatile

Order Now

The WAGO 750-626 is part of the WAGO I/O System 750 product line and is available for purchase. Ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
