WAGO 750-601

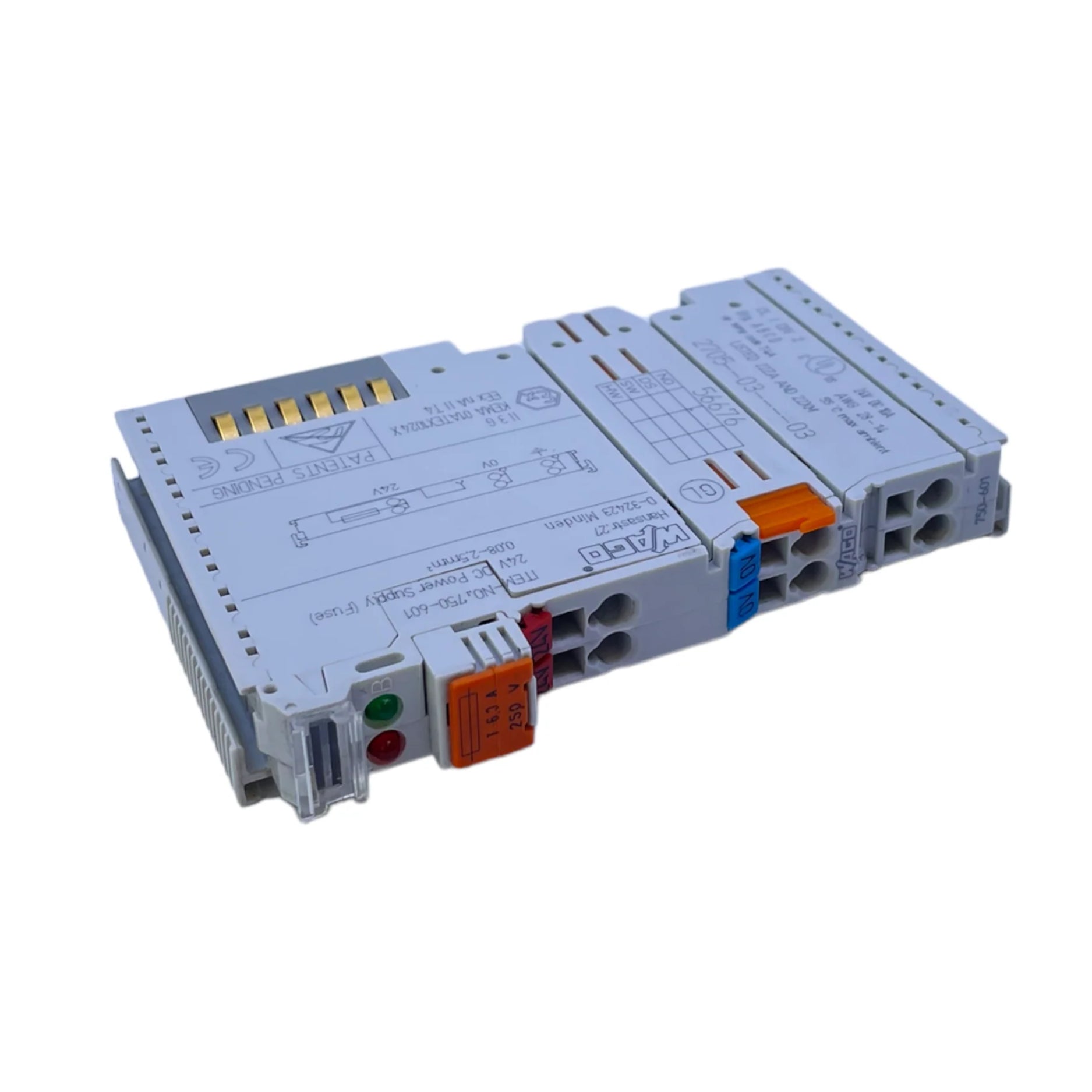

WAGO 750-601 – 24 VDC Power Supply & Fuse Holder

Overview

The WAGO 750-601 is a power supply module designed for WAGO I/O System 750. It provides a 24 VDC field supply via power jumper contacts with a maximum current of 6.3 A. It includes a fuse holder for a T-6.3 A (5×20 mm) fuse (not included), with LED indication for fuse fault. It delivers safe and reliable power to downstream I/O modules while protecting the bus and facilitating maintenance.

Key Features

• 24 VDC field-side power supply with fuse protection

• Fuse holder accepts 5×20 mm T-6.3 A fuse (fuse not supplied)

• LED indicator: red for blown fuse, green for voltage OK

• Capacity to feed downstream modules via power jumper contacts up to 6.3 A

• Field supply connection via CAGE-CLAMP® terminals

• Compatible with system supply via data contacts (5 VDC)

• Compact width (≈ 12 mm) for modular rack setup

Technical Specifications

Part Number: 750-601
Field Supply Voltage: 24 VDC (−25 % … +30 %)
Maximum Output Current via Power Jumper Contacts: 6.3 A
Fuse Type: 5×20 mm, T 6.3 A (time-delay fuse), fuse not included
Supply Voltage (System-Side): 5 VDC via data contacts
Number of Outgoing Power Jumper Contacts: 3
Connection Technology: CAGE-CLAMP® for field supply
Conductors: Solid / stranded: 0.08 … 2.5 mm² (AWG 28 … 14)
Wire Strip Length: 8 … 9 mm
Width: ~ 12 mm
Height: ~ 100 mm
Depth: ~ 69.8 mm
Depth from Top Edge of DIN-Rail: ~ 62.6 mm
Ambient Operating Temperature: 0 … +55 °C
Storage Temperature: −25 … +85 °C
Protection Rating: IP20
Pollution Degree: 2
Housing Material: Polycarbonate / Polyamide blend
Weight: ~ 46.5 g

Applications

• Providing 24 VDC power to WAGO I/O modules in automation panels

• Ensuring fuse-protected distribution so faults are safely isolated

• Use in installations where long module strings need reliable field supply

• Replacement or upgrade of power supply modules in existing WAGO I/O racks

Why Choose the WAGO 750-601

• High current capacity (6.3 A) to drive large I/O loads

• Fuse protection simplifies fault detection and maintenance

• LED indicators provide immediate visual status of supply and fuse

• Compact and rugged module for industrial environments

Order Now

The WAGO 750-601 is part of the WAGO I/O System 750 power-supply/fuse-holder modules. It is available for purchase. Ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
