WAGO 750-531

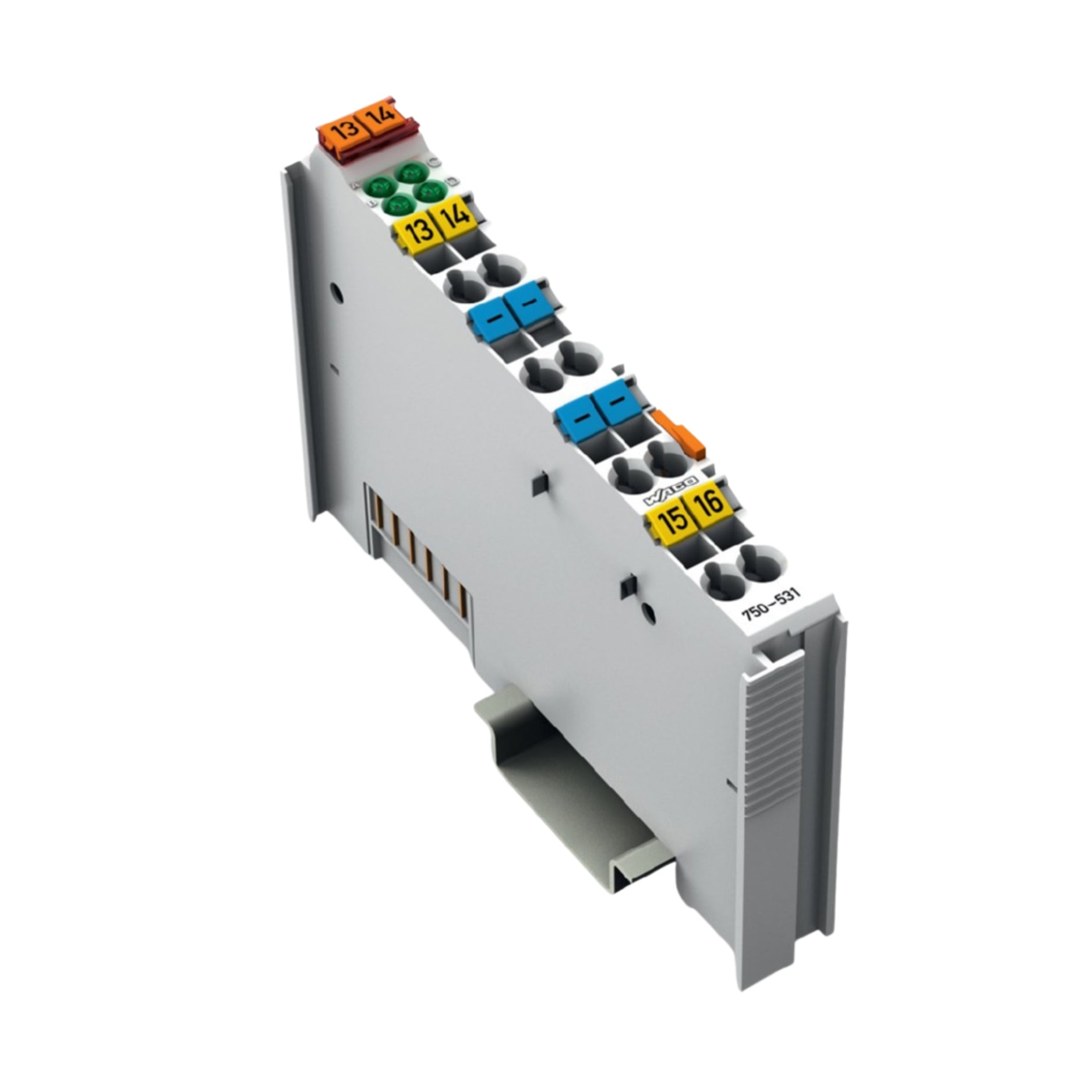

WAGO 750-531 – 4 Digital Outputs (24 VDC, 0.5 A)

Overview

The WAGO 750-531 module provides four high-side digital output channels, each rated at 0.5 A at 24 VDC. It includes short-circuit protection, reverse voltage protection, and isolation between system and field sides. Each channel has an LED indicator, making it suitable for controlling resistive, inductive, and lamp loads in automation environments.

Key Features

• Four digital output channels

• 24 VDC high-side switching

• 0.5 A maximum output per channel

• Short-circuit protection for all channels

• Reverse voltage protection

• Green LED indicators for outputs 1–4

• Electrical isolation between system and field sides (500 V)

• Compact 12 mm module width with CAGE-CLAMP® connections

Technical Specifications

• Part Number: 750-531

• Number of Outputs: 4

• Signal Voltage: 24 VDC

• Output Type: High-side switching

• Max Output Current per Channel: 0.5 A

• Switching Frequency: up to 1 kHz

• Short-Circuit Current Peak: ~1.7 A

• Load Types: Resistive, inductive, lamp

• Reverse Voltage Protection: Yes

• System Supply Voltage: 5 VDC via data contacts

• System Current Consumption: ~10 mA

• Field Supply (No Load): ~30 mA

• Isolation Voltage (System vs Field): 500 V

• Power Jumper Contacts: 2 incoming / 2 outgoing, 10 A capacity

• Indicators: 4 × green LEDs for output status

• Connection Technology: CAGE-CLAMP®

• Conductor Size: 0.08 … 2.5 mm² (AWG 28 … 14)

• Wire Strip Length: 8 … 9 mm

• Dimensions (W × H × D): 12 × 100 × 69.8 mm

• Depth from DIN-Rail Edge: ~62.6 mm

• Operating Temperature: 0 … +55 °C

• Storage Temperature: −40 … +85 °C

• Protection Rating: IP20

• Pollution Degree: 2

Applications

• Driving actuators, lamps, and relays in automation systems

• Control panels requiring multiple outputs in compact modules

• Industrial environments needing per-channel LED feedback

• Mixed digital I/O systems requiring robust protection

Why Choose the WAGO 750-531

• Compact and reliable design with 4 isolated outputs

• Short-circuit and reverse-voltage protection improve system safety

• LEDs simplify diagnostics and maintenance

• Space-saving module for dense automation setups

Order Now

The WAGO 750-531 is part of the WAGO I/O System 750 series and is available for purchase. Ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
