WAGO 750-517

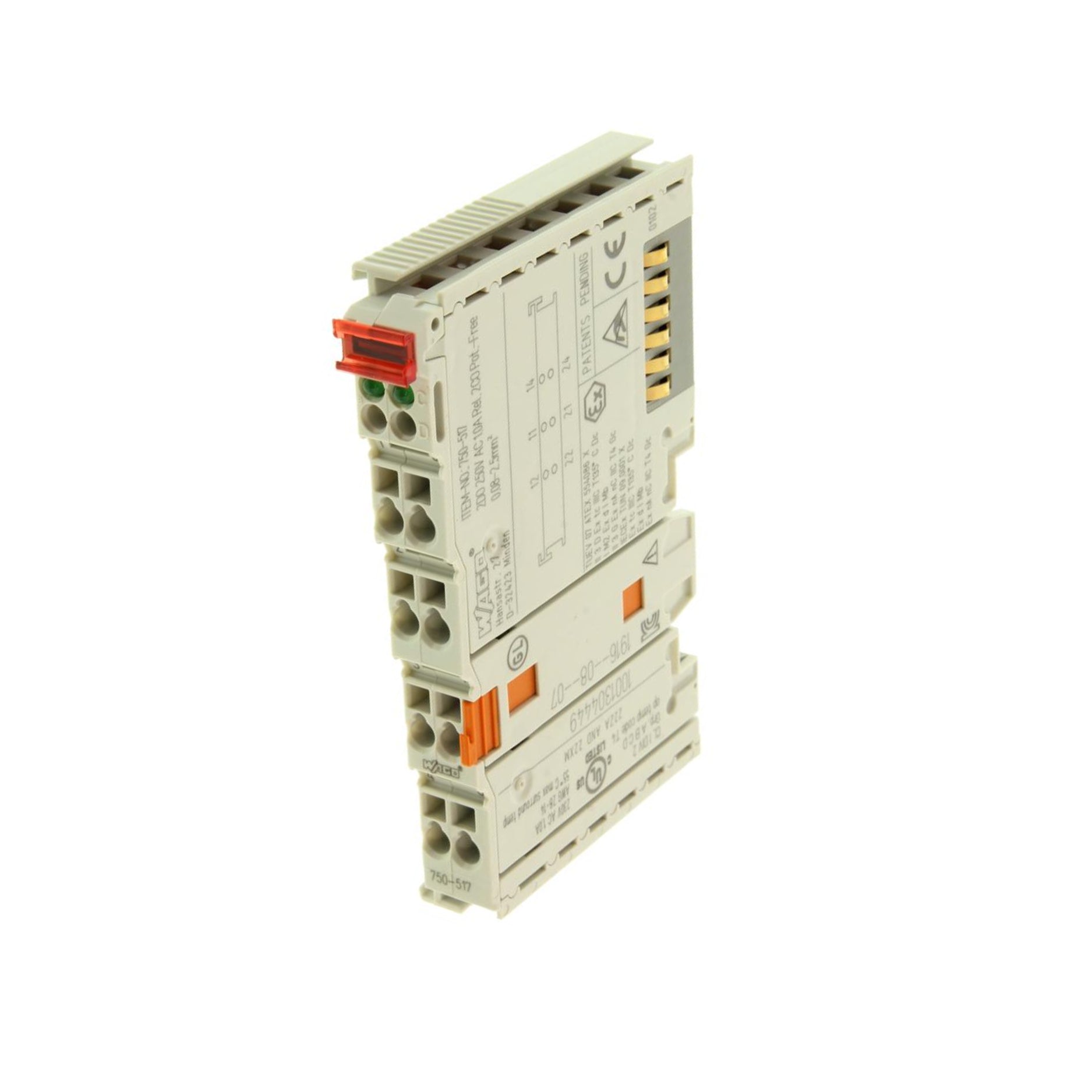

WAGO 750-517 – 2-Channel Relay Output Module

Overview

The WAGO 750-517 relay output module provides two potential-free changeover contacts for switching AC and DC loads. Designed for reliable performance, it ensures electrical isolation between system and field side and is ideal for low-frequency switching tasks. Each relay output includes LED indication for easy diagnostics.

Key Features

• Two changeover relay outputs

• Potential-free contacts for flexible load control

• Switching capacity: up to 250 V AC / 300 V DC

• 1 A maximum load per channel

• LED indicators for relay status

• Electrical isolation between system and field side

• Compact 12 mm module width for space savings

Technical Specifications

Part Number: 750-517
Number of Outputs: 2
Contact Type: Changeover (potential-free)
Max Switching Voltage: 250 V AC / 300 V DC
Max Switching Current: 1 A
Min Switching Current/Voltage: 100 mA / 12 V
Switching Frequency: ~6 operations/min (nominal load)
Pull-In Time: ≤ 8 ms
Drop-Out Time: ≤ 4 ms
Mechanical Life: ≥ 5 million operations
Electrical Life: ≥ 1 million operations (resistive load at 1 A, 250 V AC)
System Supply Voltage: 5 VDC via data contacts
Current Consumption (System Side): ~90 mA
Isolation Voltage (System vs Field): 1.5 kV
Connection Technology: CAGE-CLAMP®
Conductor Size: 0.08 … 2.5 mm² (AWG 28 … 14)
Wire Strip Length: 8 … 9 mm
Dimensions (W × H × D): 12 × 100 × 68 mm
Depth from Top Edge of DIN-Rail: ~61 mm
Operating Temperature: 0 … +55 °C
Storage Temperature: −40 … +85 °C
Protection Rating: IP20
Vibration Resistance: 4 g
Shock Resistance: 15 g

Applications

• Switching AC or DC loads such as lights, valves, and contactors

• Control panels requiring isolated relay outputs

• Low-frequency switching tasks in automation systems

• Environments where relay state feedback is required

Why Choose the WAGO 750-517

• Provides two independent potential-free changeover contacts

• Handles both AC and DC loads reliably

• Clear LED status indicators for quick diagnostics

• Compact and robust design suitable for industrial environments

Order Now

The WAGO 750-517 is part of the WAGO I/O System 750 product line and is available for purchase. Ships worldwide.
