WAGO 750-489

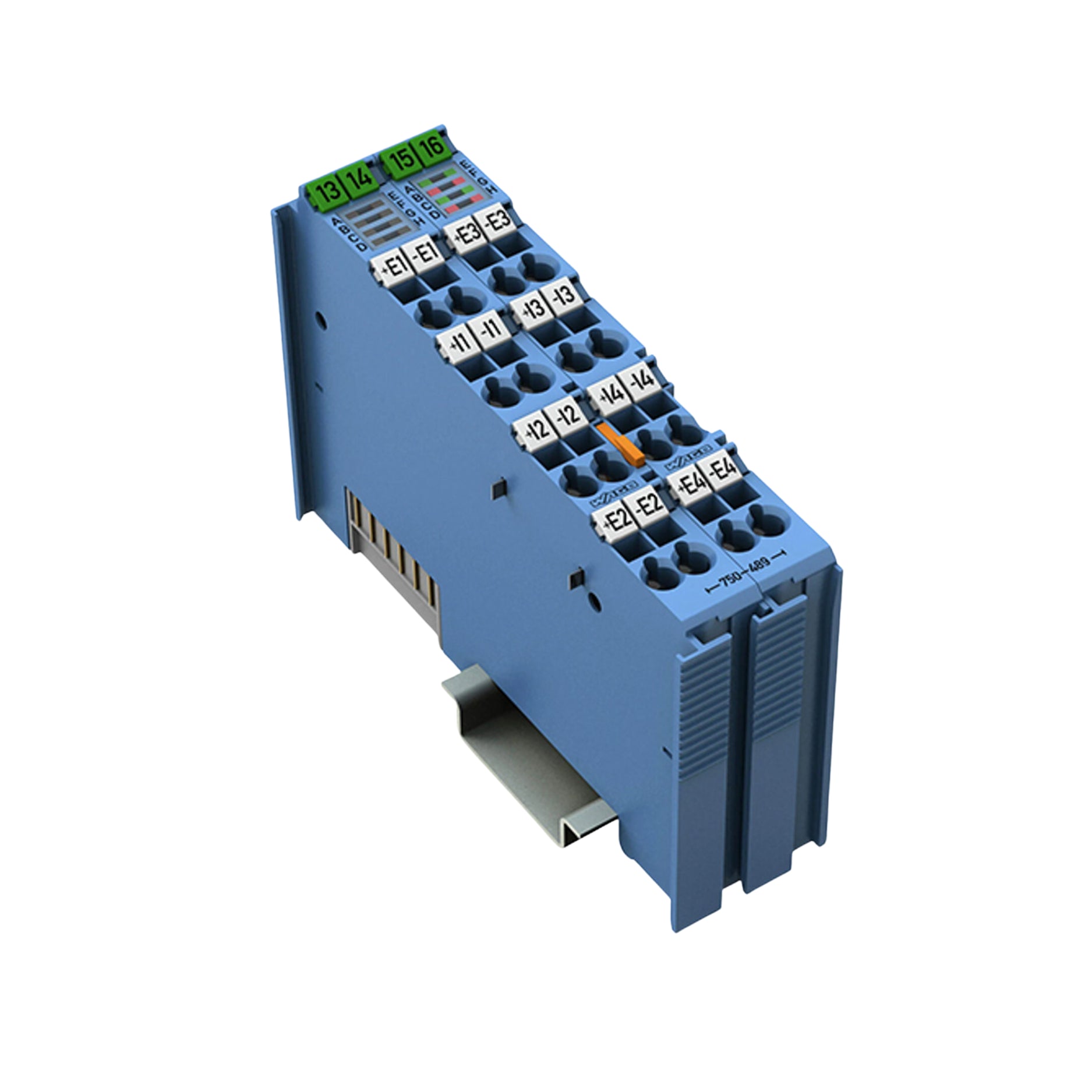

WAGO 750-489 – 4 AI RTD / TC / Strain Gauge (Ex i)

Overview

The WAGO 750-489 is a 4-channel analog input module designed to connect resistance temperature devices (RTDs), thermocouples,mV sensors, resistor bridges (strain gauges), potentiometers, and PTC thermistors. It features a 16-bit resolution, diagnostics for each channel, and is certified intrinsically safe (Ex i) for use in hazardous areas (Zones 0/1). Cold-junction compensation is built in. The module is compatible with WAGO-I/O System 750 and configured via GSD / e!COCKPIT / WAGO-I/O-CHECK.

Key Features

• Four analog input channels

• Supports RTDs (Pt / Ni), thermocouples types B, C, E, J, K, N, R, S, T; mV ranges; strain gauge / resistor bridge; potentiometer settings

• Multiple sensor wiring: 2-wire, 3-wire, 4-wire depending on sensor type

• Intrinsic safety certification for hazardous environments (Zones 0/1)

• 16-bit data resolution with optional 8-bit per-channel status/control

• Diagnostics: underflow, overflow, range over/under; LED indicators per channel

• Cold-junction compensation for thermocouple inputs

• Galvanic isolation between system and field levels; isolation per channel

Technical Specifications

Part Number: 750-489
Number of Analog Inputs: 4
Signal Types Configurable: RTD, thermocouple, strain gauge, mV sensor, resistor, potentiometer, PTC
Supported RTDs: Pt100, Pt200, Pt500, Pt1000; Ni100, Ni120, Ni200, Ni500, Ni1000, Ni1000-TK5000
Resistance and bridge: various ranges (250 Ω to several kΩ)
Thermocouple Ranges: e.g. Type B +250…+1820 °C; Type K -200…+1372 °C; etc.
Millivolt ranges: ±30, ±60, ±120, ±250, ±500, ±1000, ±2000 mV
Resolution: 16 bits (data), optional status/control per channel (8 bits)
Measurement Error at 25 °C (RTD/TC): ±0.2 % full scale (factory calib.); after user calibration ±0.05 % in thermally stable conditions
Temperature Coefficient: ±0.001 % / K of full scale
Conversion Time: ≥10 ms for 2-wire; ≥20 ms for 3-wire or 4-wire sensor types
Supply Voltage (Field / Ex i): 24 VDC; Ex i power supply: max Uo = 27.3 V via power jumper contacts
System Supply Voltage (logic side): 5 VDC via data contacts
Current Consumption (Field side, no external load): approx. 120 mA in strain gauge mode; ~50 mA in RTD/TC mode
Current Consumption (System side): ~60 mA
Power Loss: approx. 1.6 W in RTD/TC mode; up to ~3.2 W in strain gauge loads
Isolation (System / Field): per EN/IEC 60079-11, 300 VAC; per UL standard 1200 VDC between system/field/channel
Incoming / Outgoing Power Jumper Contacts: 2 each
Connection Technology: CAGE-CLAMP®
Solid / Stranded Conductor Size: 0.08 … 2.5 mm² (AWG 28 … 14)
Wire Strip Length: 8 … 9 mm
Dimensions: Width 24 mm; Height 100 mm; Depth 67.8 mm
Depth from upper edge of DIN-rail: ~60.6 mm
Operating Temperature: 0 … +55 °C
Storage Temperature: -25 … +85 °C
Protection Rating: IP20
Weight: approx. 99 g
EMC: Meets immunity/emission standards for marine and industrial environments
Explosion Protection Approvals: Ex ec [ia Ga] IIC T4 Gc; etc.

Applications

• Temperature measurement (RTDs, TCs) in hazardous areas (Zones 0/1)

• Signal acquisition from strain gauges / bridges in industrial or process automation

• Use in systems where safety certifications and diagnostics are required

• Monitoring and control in plants requiring both analog precision and explosion safety

Why Choose the WAGO 750-489

• Intrinsic safety allows use in hazardous locations without external safety barriers

• High resolution (16-bit) and wide sensor support reduce need for multiple modules

• Built-in diagnostics help with maintenance and safety

• Strong isolation and channel-level separation improve reliability and reduce interference

Order Now

The WAGO 750-489 is part of the WAGO I/O System 750 product line and is available for purchase. Ships worldwide.
