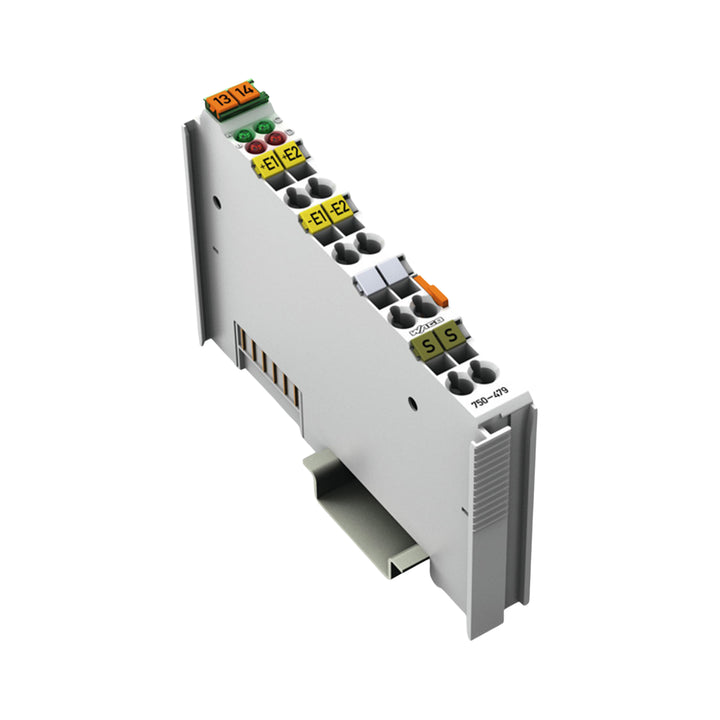

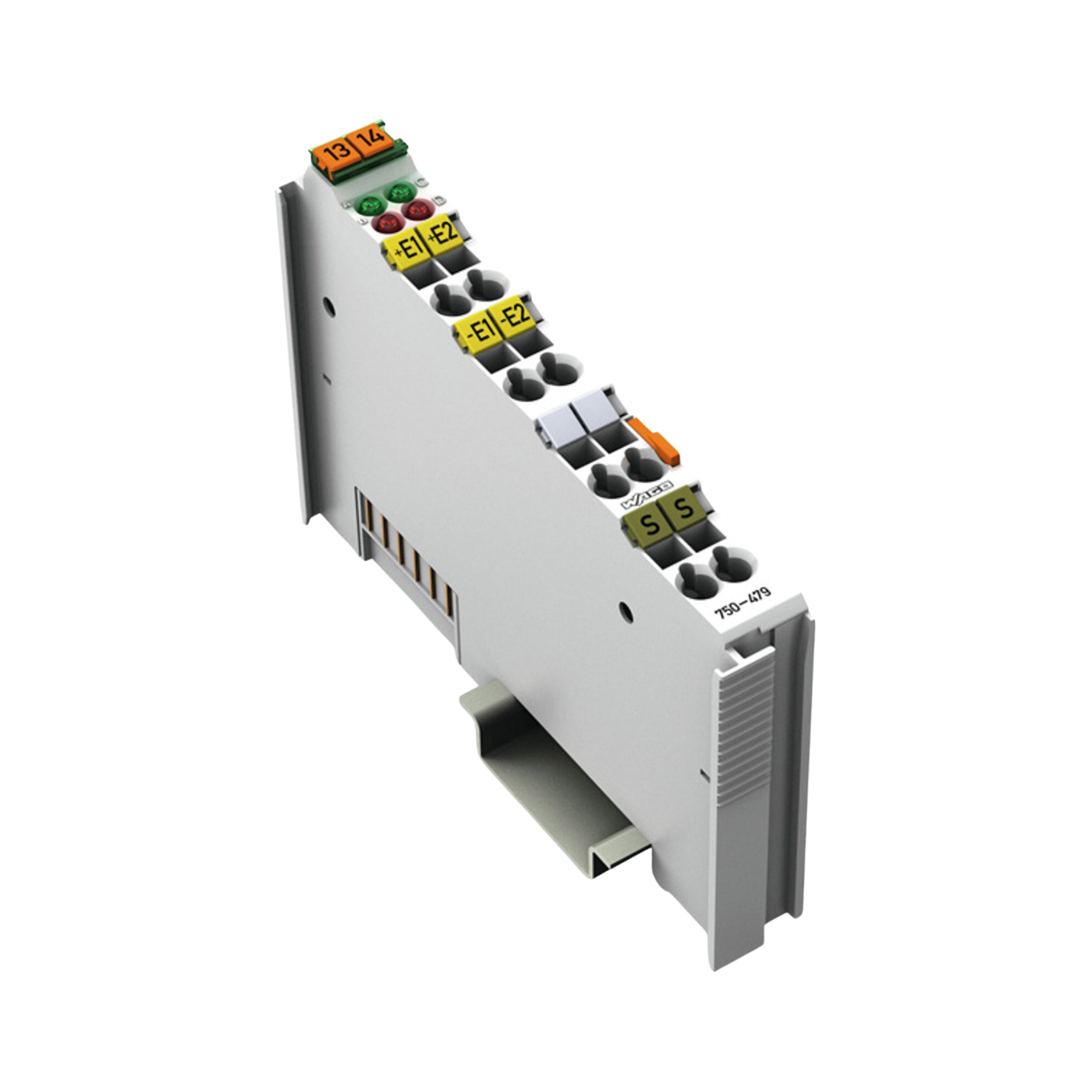

WAGO 750-479 – 2 Analog Inputs (±10 V Differential)

Overview

The WAGO 750-479 is a 2-channel analog input module designed for differential voltage signals ranging from -10 V to +10 V. Each channel is electrically isolated and uses a SAR (successive approximation) converter for accurate measurement. The module operates in a continuously sampling mode, with LED indicators to show overrange or underrange status. It’s built to work with WAGO I/O System 750 couplers/controllers (excluding some economy couplers).

Key Features

• Two differential analog input channels

• Signal range: -10 … +10 VDC

• SAR conversion (Successive Approximation Register)

• Continuously sampling mode

• Input filter: low-pass, 1st order, cutoff frequency approx. 5 kHz

• Electrical isolation between each channel and between system side

• LED status per channel for overflow / underflow / range error

• Shield connection tied to DIN-rail for improved interference suppression

Technical Specifications

• Part Number: 750-479

• Number of Inputs: 2

• Signal Type: Voltage, Differential

• Measurement Range: -10 V … +10 VDC

• Resolution: 13 bits (measured value)

• Conversion Method: SAR

• Input Filter: 1st-order low-pass (~5 kHz cutoff)

• Continuously Sampling Mode: yes

• System Supply Voltage: 5 VDC via data contacts

• Current Consumption (System Side): ~80 mA

• Overload Admissible Continuous: up to 60 V

• Isolation Voltage: 500 V between channel/channel and channel/system

• Wire Connection: CAGE-CLAMP®

• Conductor Size: 0.08 … 2.5 mm² (AWG 28 … 14)

• Wire Strip Length: 8 … 9 mm

• Width: ~12 mm

• Height (from top of DIN-rail): ~64 mm

• Depth: ~100 mm

• Operating Temperature: 0 … +55 °C

• Storage Temperature: -40 … +85 °C

• Protection Rating: IP20

• Pollution Degree: 2

• EMC Standards: meets EN 61000-6-2 / EN 61000-6-4, marine application ratings

Applications

• Measuring differential voltage signals in industrial control systems

• Use where isolation and precision are necessary (e.g. -10/+10 V sensors)

• Environments with electrical noise where shield and isolation matter

• Monitoring over- or under-range conditions for analog inputs

Why Choose the WAGO 750-479

• High precision with 13-bit resolution over ±10 V range

• Strong isolation and interference shielding reduce signal error

• Continuous sampling and fast filtering ensure responsive readings

• LED status indicators simplify diagnostics

Order Now

The WAGO 750-479 is part of the WAGO I/O System 750 family. Available for purchase. Ships worldwide.
