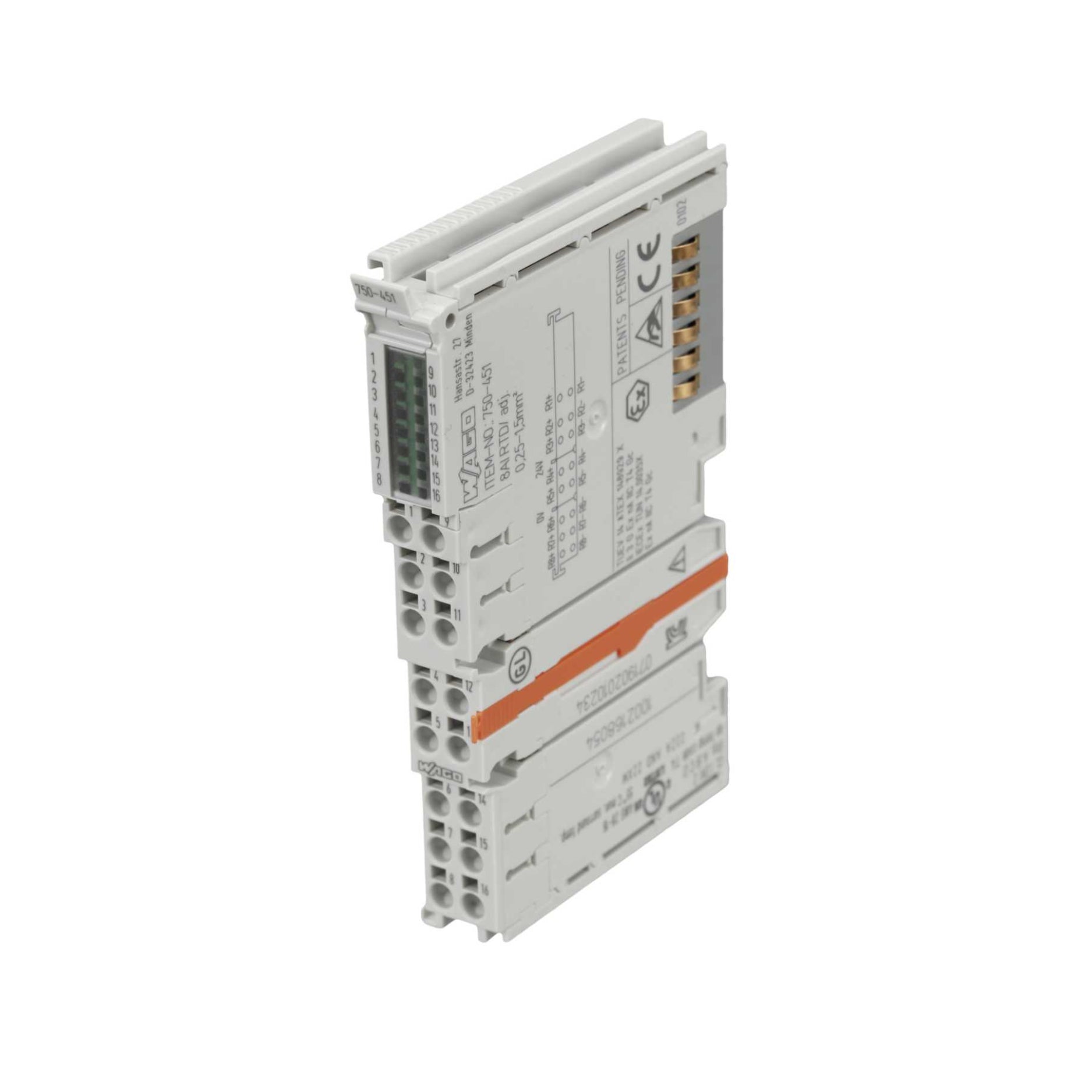

WAGO 750-451 – 8 AI Resistance / RTD (Adjustable Sensor Types)

Overview

The WAGO 750-451 is an 8-channel analog input module designed for resistance measurement and RTDs (e.g. Pt / Ni sensors). It supports 2-wire versions of sensors, automatic linearization of the full temperature range, and per-channel LED error indication for faults like wire break, short circuit or out-of-range conditions. Unused channels can be deactivated. Ideal for industrial applications with varied sensor types and high monitoring needs.

Key Features

• Supports multiple RTD and resistor sensor types (configurable)

• 8 input channels, 2-wire connection each

• Automatic linearization across full temperature range

• LED per channel status (green for normal, red for error)

• Deactivation of unused channels to reduce overhead

• High accuracy for different sensor classes

• Adjustable configuration via commissioning tools

• Strong isolation between system and field sides

Technical Specifications

Part Number: 750-451
Number of Analog Inputs: 8 (resistance / RTD)
Signal / Sensor Types: Pt100, Pt200, Pt500, Pt1000; Ni100, Ni120, Ni1000; potentiometers (10 Ω … 1.2 kΩ / 10 Ω … 5 kΩ)
Wiring: 2-wire per channel
Resolution: 0.1 °C over full range; 0.01 °C in restricted range (−50 … +150 °C for Pt1000, Ni1000)
Conversion Time (typical): 100 ms
Measurement Error at 25 °C:
 - ≤ ±0.6 K for Pt100, Pt200, Pt500, Ni100, Ni120
 - ≤ ±0.2 K for Pt1000, Ni1000
 - ≤ ±0.3 Ω for resistance measurement
Typical Measuring Current: ≤ 350 µA
Response Time (Max): 3 seconds
Temperature Ranges:
 - Pt sensors: −200 … +850 °C
 - Ni100, Ni1000: −60 … +250 °C
 - Ni120: −80 … +260 °C
System Supply Voltage: 5 VDC via data contacts
System Current Consumption: ~110 mA
Field Supply Voltage: 24 VDC (−25 … +30 %) via power jumper contacts
Isolation Voltage (System vs Field): 500 V
Number of Power Jumper Contacts: 2 incoming / 2 outgoing
Connection Technology: Push-in CAGE-CLAMP® for all inputs
Conductor Size (Solid / Stranded): 0.08 … 1.5 mm² solid; 0.25 … 1.5 mm² stranded
Wire Strip Length: 8 … 9 mm
Width: ~12 mm
Height: ~100 mm
Depth: ~69 mm
Depth from Top Edge of DIN-rail: ~61.8 mm
Operating Temperature: 0 °C … +55 °C
Storage Temperature: −40 °C … +85 °C
Protection Rating: IP20
Pollution Degree: 2

Applications

• Precision temperature control with RTDs across wide temperature ranges

• Industrial monitoring where multiple RTD channels are needed in one module

• Heater / cooler systems, environmental control, thermal process measurement

• Systems requiring error detection per sensor channel for maintenance

Why Choose the WAGO 750-451

• Flexible sensor type support helps reduce part count and inventory

• Good resolution and error monitoring enhance reliability and safety

• Deactivation of unused channels can save power and simplify system configuration

• Compactness and strong electrical isolation make it safe and suitable for industrial use

Order Now

The WAGO 750-451 is part of the WAGO I/O System 750 product line and is available for purchase. Ships worldwide.
