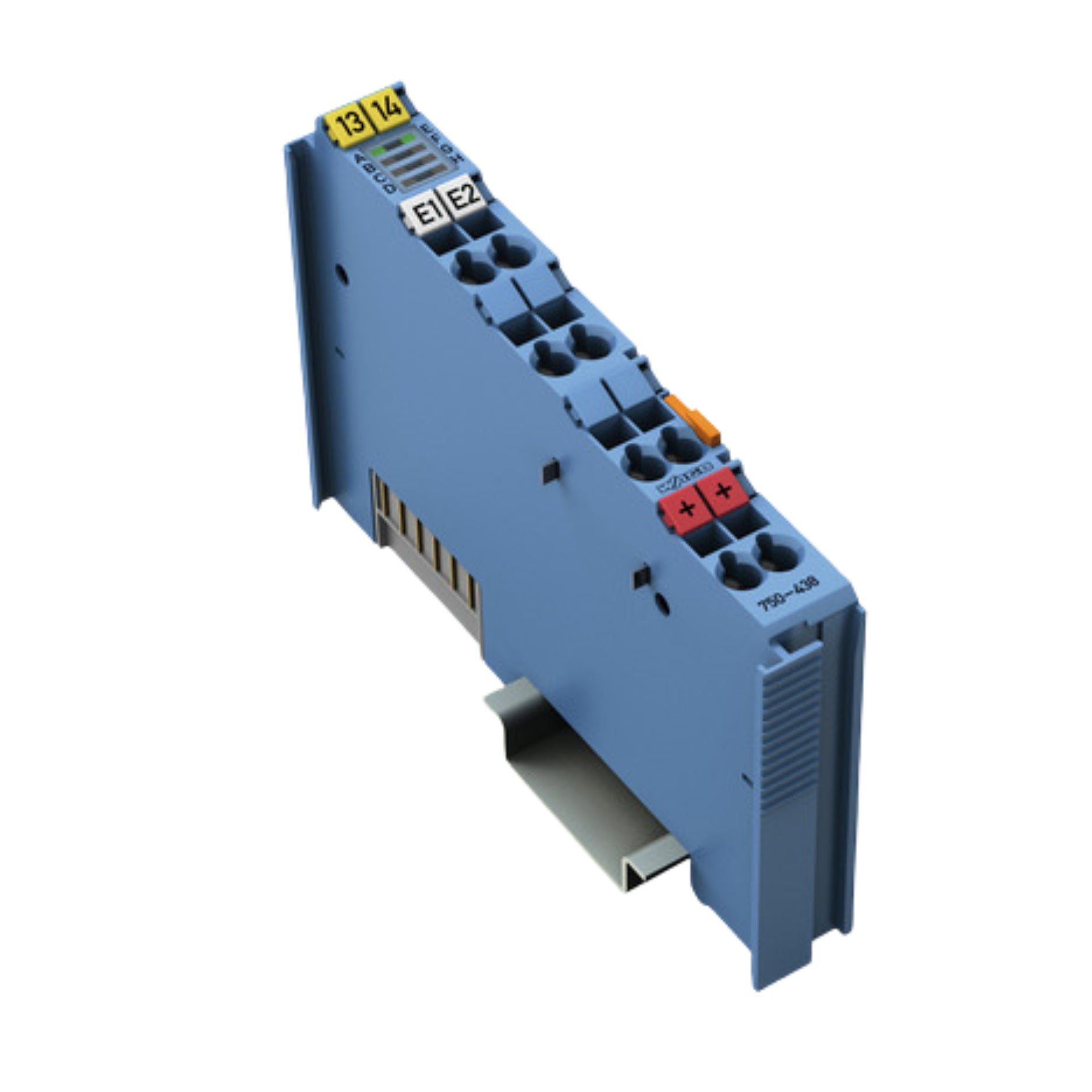

WAGO 750-438 – 2 NAMUR Digital Inputs (Intrinsically Safe)

Overview

The WAGO 750-438 module provides two intrinsically safe digital inputs for NAMUR sensors, suitable for use in hazardous areas (Zones 0/1). Each sensor is supplied with a short-circuit-protected 8.2 V source. The module includes LED status indicators, electrical isolation between field and system levels, and complies with explosion safety standards. Must be powered by an Ex i power supply.

Key Features

• Two inputs for NAMUR sensors

• Intrinsically safe (Ex i) design for hazardous areas (Zone 0/1)

• Short-circuit protected 8.2 V sensor supply

• High-side switching input characteristic

• 3 ms input filter (digital)

• Green LEDs to indicate “signal on” for each channel

• Electrical isolation between system side and field side

• Compact width (12 mm) DIN-rail mount

Technical Specifications

• Part Number: 750-438

• Number of Digital Inputs: 2

• Signal Type: NAMUR (2-wire)

• Sensor Supply Voltage: 8.2 VDC, short-circuit-protected

• System Supply Voltage: 5 VDC via data contacts

• Field Supply Voltage: 24 VDC via power jumper contacts; Ex i power supply max Uo = 27.3 V

• Signal Current (0): ≤ 1.2 mA

• Signal Current (1): ≥ 2.1 mA

• Open-Circuit Voltage: 8.2 V

• Short-Circuit Current: ≤ 8.2 mA

• Switching Hysteresis: 0.2 mA

• Input Filter Time: 3 ms

• Minimum Input Pulse Length: 5 ms

• Minimum Input Pulse Separation: 3 ms

• Isolation Voltage (System vs Field): 300 VAC

• Max Current via Power Jumper Contacts: 1 A

• Power Consumption (Module, No Load, Field Supply): ~16 mA

• Power Consumption (System Side, 5 V): ~2.5 mA

• Maximum Total Power: ~0.4 W

• Power Loss: ~0.27 W

• Connection Technology: CAGE-CLAMP®

• Conductor Size: 0.08 … 2.5 mm² (AWG 28 … 14)

• Wire Strip Length: 8 … 9 mm

• Dimensions (W × H × D): 12 × 100 × 67.8 mm

• Depth from Upper Edge of DIN-Rail: ~60.6 mm

• Operating Temperature: 0 … +55 °C

• Storage Temperature: -25 … +85 °C

• Protection Rating: IP20

• Pollution Degree: 2

• Vibration Resistance: 4 g

• Shock Resistance: 15 g

• Approvals / Standards: ATEX, IECEx, Underwriters Laboratories for hazardous locations; EN/IEC 60079-0, -7, -11

Applications

• Connecting NAMUR sensors in hazardous areas (Zones 0/1)

• Use where intrinsically safe circuits are required for safety compliance

• Industrial automation with field inputs in Ex environments

• Situations where signal integrity and safety are both critical

Why Choose the WAGO 750-438
