WAGO 750-370

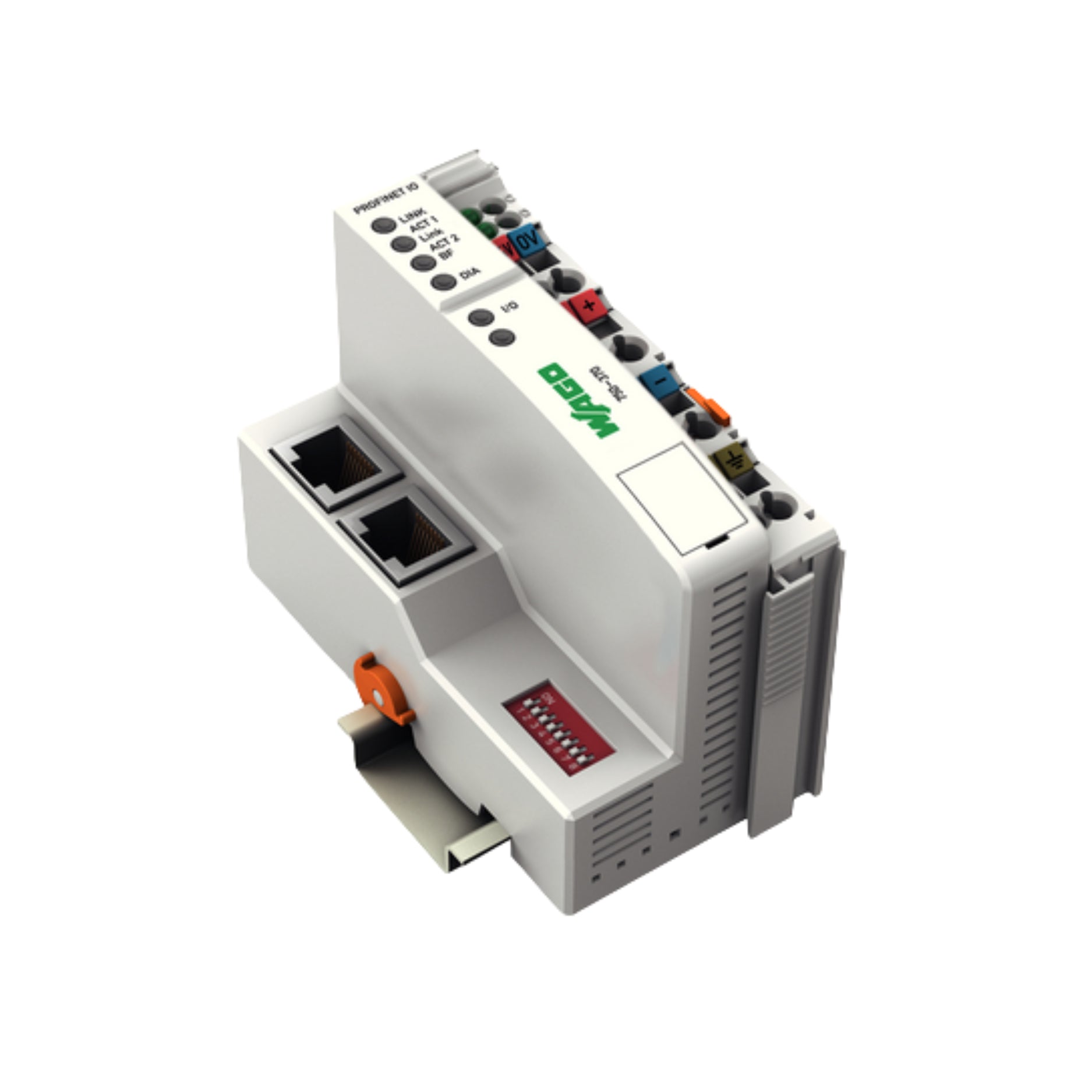

WAGO 750-370 – Fieldbus Coupler PROFINET IO (2nd Gen)

Overview

The WAGO 750-370 is a 2nd-generation PROFINET IO fieldbus coupler for WAGO’s I/O System 750. It connects via two RJ-45 Ethernet ports with an integrated 2-port switch. It supports mixed digital, analog, and specialty I/O modules. The coupler automatically configures, includes diagnostics and LEDs for status, and handles substantial process images for both inputs and outputs.

Key Features

• PROFINET IO protocol, Ethernet 100Base-TX (100 Mbit/s)

• Two-port RJ-45 switch built in

• Supports up to 64 I/O modules per node

• Large process image: up to 320 bytes input / 320 bytes output

• Device name assignment via LLDP or DIP-switch fallback

• Power supplied via 24 VDC field-side and system supply contacts

• Status LEDs for Link / Activity, Bus Fault, Diagnostic, I/O, and supply voltage

• 10 A field-power jumper capacity

• Isolation 500 V between system/supply sides

Technical Specifications

Part Number: 750-370
Fieldbus Protocol: PROFINET IO (2nd Gen)
Ethernet Speed: 100 Mbit/s
Fieldbus Ports: 2 × RJ-45 (switched)
Max I/O Modules per Node: 64 (expandable via bus extension to 128)
Max Input Process Image Size: 320 bytes
Max Output Process Image Size: 320 bytes
Supply Voltage Field Side: 24 VDC (-15 % … +20 %)
Input Current at 24 V (nominal): ~500 mA
Internal Current Consumption (5 V system side): ~300 mA
Total Current Available for I/O Modules via System Supply: ~1,700 mA
Efficiency: ≈ 87 % at nominal load
Current via Power Jumper Contacts: up to 10 A
Isolation Voltage: 500 V between system / supply sides
Wire Connection: CAGE-CLAMP®
Conductor Size: 0.08 … 2.5 mm² (AWG 28 … 14)
Wire Strip Length: 8 … 9 mm
Dimensions (W × H × D): ~51 × 65 × 100 mm
Height from Upper Edge of DIN-Rail: ~65 mm
Operating Temperature: 0 … +55 °C
Storage Temperature: -25 … +85 °C
Protection Rating: IP20

Applications

• Gateway between PROFINET IO networks and mixed digital/analog I/O modules

• Machine automation with large numbers of I/O signals

• Installations where large process image sizes are needed for fast, high-density data

• Cabinets / racks where space is available for larger form-factor couplers

Why Choose the WAGO 750-370

• High performance network throughput with dual Ethernet ports

• Strong capacity (64 modules, large process images) makes system scalable

• Reliable diagnostics and status feedback help in troubleshooting

• Robust 24 V supply with high jumper current supports demanding I/O loads

• Well suited for industrial use under standard environmental conditions

Order Now

The WAGO 750-370 is part of the WAGO I/O System 750 product line and is available for purchase. Ships worldwide.
