WAGO 750-352

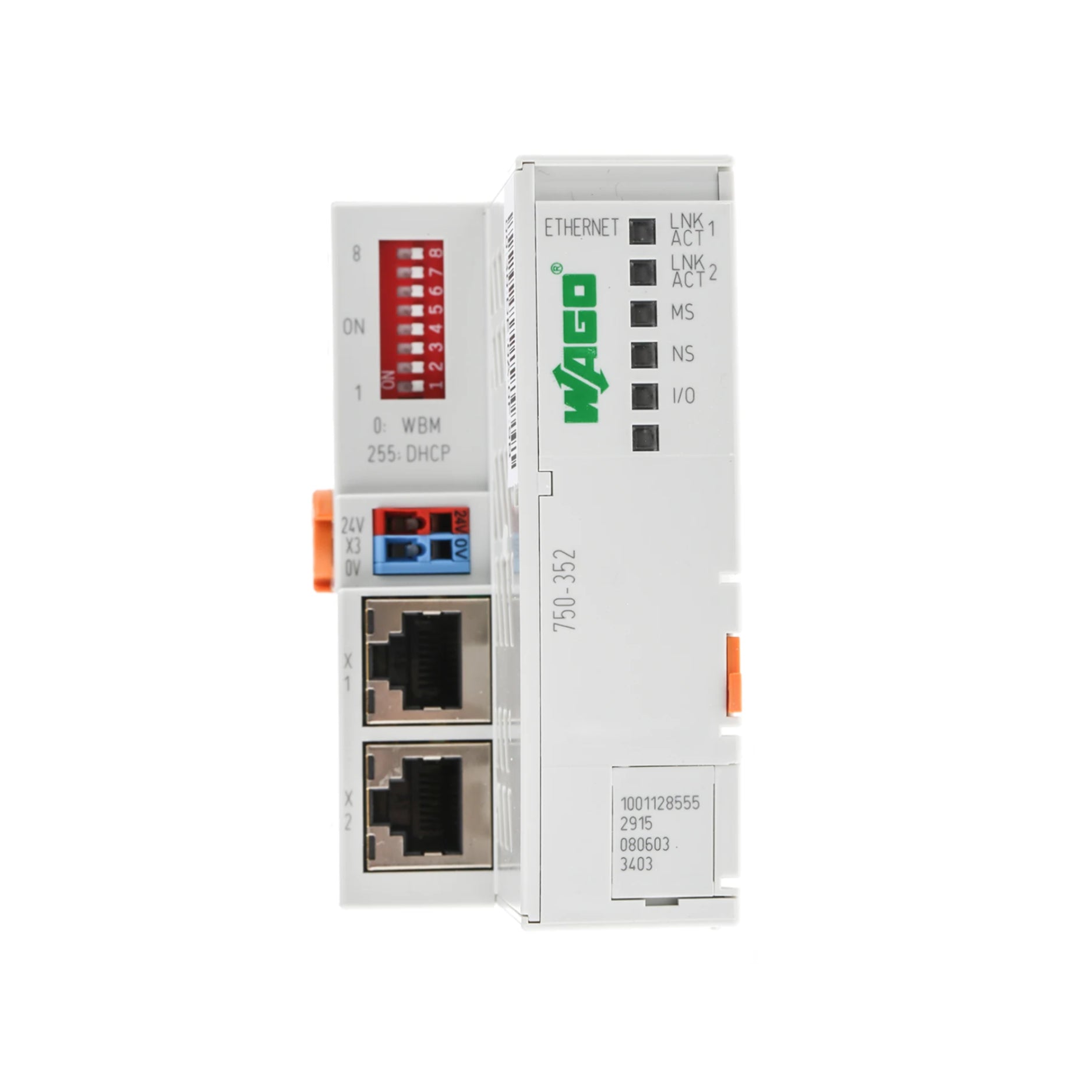

WAGO 750-352/040-000 – Ethernet Coupler Extreme (3rd Generation)

Overview

The WAGO 750-352/040-000 is a rugged “Extreme” version of the Ethernet fieldbus coupler in the WAGO I/O System 750/753. It supports robust communication over Ethernet using Ethernet/IP and Modbus TCP/UDP protocols. It includes two RJ-45 ports with an integrated switch, supports standard Ethernet services (HTTP, DHCP, DNS, SNMP, etc.), and features a web server for configuration and status monitoring. Built for harsh environments, it delivers reliable performance under temperature extremes, vibrations, and electrical stresses.

Key Features

• Supports Ethernet/IP and Modbus TCP/UDP protocols

• Dual RJ-45 Ethernet ports with built-in switch and Auto-MDI(X) / Auto-Negotiation

• Integrated web server for configuration & status feedback

• Network services support: HTTP, BootP, DHCP, DNS, SNMP, FTP

• IP-rated protection and Extreme-class robustness for tough ambient conditions

• LED indicators for network status, power, diagnostics

• Designed for DIN-rail mounting and modular I/O expansion

Technical Specifications

Part Number: 750-352/040-000
Communication Protocols: Ethernet/IP, Modbus TCP/UDP
Ethernet Ports: 2 × RJ-45 (with internal switch)
Ethernet Speed: 10/100 Mb/s
Transmission Medium: Twisted pair CAT-5e U/UTP or STP
System Supply Voltage: 24 VDC (–25 % … +30 %)
Input Current (24 V supply) Maximum: approx. 280 mA
Internal 5 V-Supply Current: approx. 450 mA
Total Available Current for I/O Modules (5 V bus): approx. 700 mA
Isolation Voltage System/Field: 500 V
Width: ~50 mm
Height (from top of DIN-35 rail): ~65 mm
Length / Depth: ~97 mm
Operating Temperature: 0 °C … +55 °C
Storage Temperature: -25 °C … +85 °C
Relative Humidity (non-condensing): up to 95 %
Protection Rating: IP20

Applications

• Industrial automation systems needing Ethernet communication to distributed I/O modules

• Harsh environments requiring equipment with high resistance to vibration, temperature extremes, and electrical disturbances

• Use cases with mixed analog/digital field modules under a single coupler

• Monitoring and diagnostics via built-in web interface

Why Choose the WAGO 750-352/040-000

• Extreme-class durability ensures reliability in tougher industrial settings

• Flexible protocol support (EtherNet/IP, Modbus) increases compatibility with different control systems

• Web-based configuration and status tools simplify setup & maintenance

• Ample current available for expansion with multiple I/O modules

• High isolation voltage improves safety and noise immunity

Order Now

The WAGO 750-352/040-000 is part of the WAGO I/O System 750/753 product line and is available for purchase. Ships worldwide.

New:

New product in original sealed packaging. The product may be of an older version or design. Packaging may show markings, discoloration, or signs of wear due to storage.

Refurbished:

Refurbished product fully tested, cleaned, and verified for proper operation. Not in original packaging. The item may show minor cosmetic signs resulting from previous handling or use.

Warranty:

DDPARTSSOLUTION Warranty: 1 Year.

Manufacturer’s warranty and support DO NOT apply.
