WAGO 750-1515 – 8DO 24 V DC 0.5 A (2-wire High-Side Switching)

Overview

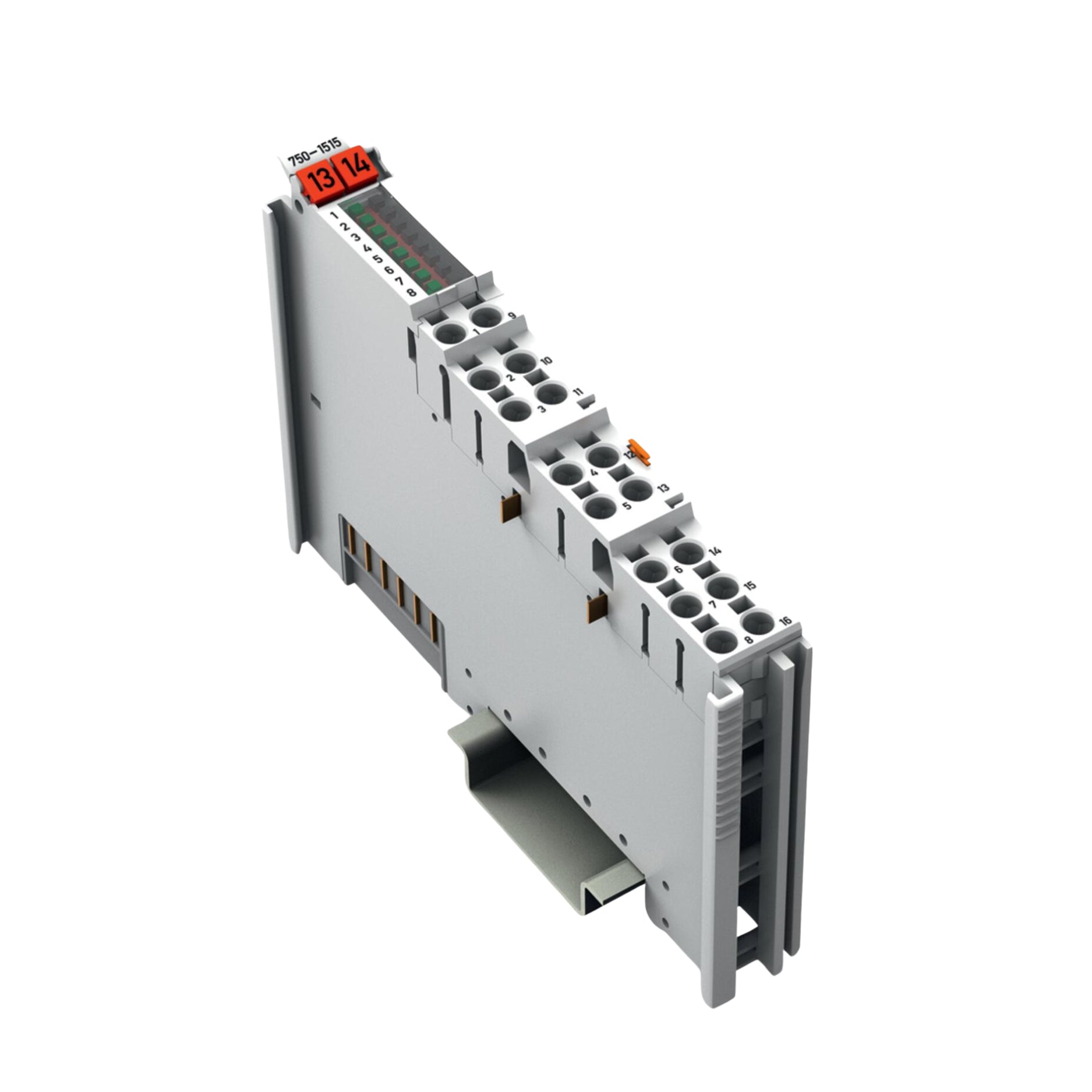

The WAGO 750-1515 is an 8-channel digital output module in the WAGO I/O System 750 series. It uses high-side switching to drive loads such as relays, valves, lamps, and contactors. Each channel is rated for 0.5 A, with the module built to deliver reliable performance in typical industrial environments. It features 2-wire output connections, LED indicators for each output channel, and a narrow 12 mm module width for dense panel mounting.

Key Features

• 8 digital output channels, each up to 0.5 A

• High-side switching characteristic

• 24 VDC field supply range (-25 % … +30 %)

• Short-circuit protection per output channel

• LED status indicator for each output channel

• 2-wire output connection

• Compact module width of ~12 mm

• Switching frequency up to 1 kHz

• 500 V isolation between system side and field side

Technical Specifications

Part Number: 750-1515
Number of Digital Outputs: 8
Signal Voltage (Field): 24 VDC (−25 % … +30 %)
Output Current per Channel: 0.5 A (short-circuit protected)
Load Types: Resistive, inductive, lamp loads
Switching Frequency (Max): 1 kHz
Supply Voltage (System Side): 5 VDC via data contacts
Current Consumption (System Side): 20 mA
Current Consumption (Field Side, no external load): ~15 mA
Isolation Voltage (System vs Field): 500 V
Connection Technology: Push-in CAGE-CLAMP® for outputs
Solid Conductor Size: 0.08 … 1.5 mm² (AWG 28 … 16)
Fine-Stranded Conductor Size: 0.25 … 1.5 mm² (AWG 22 … 16)
Wire Strip Length: 8 … 9 mm
Width: ~12 mm
Height: ~100 mm
Depth: ~69 mm
Depth from Upper Edge of DIN-Rail: ~62 mm
Operating Temperature: 0 °C … +55 °C
Storage Temperature: −40 °C … +85 °C
Protection Rating: IP20

Applications

• Switching of actuators, lamps, solenoids, and relays in automation systems

• Dense I/O assemblies where space is critical

• Industrial environments where quick response time and per-channel visibility are needed

• Use in mixed-signal systems with both digital and analog modules

Why Choose the WAGO 750-1515

• Offers high current capacity per channel (0.5 A) for stronger loads

• On-board LEDs help with real-time status checks and rapid troubleshooting

• Narrow width conserves space in control cabinets

• Strong isolation protects system electronics from field disturbances

• Supports high switching speeds for dynamic control

Order Now

The WAGO 750-1515 is part of the WAGO I/O System 750 product line and is available for purchase. Ships worldwide.
