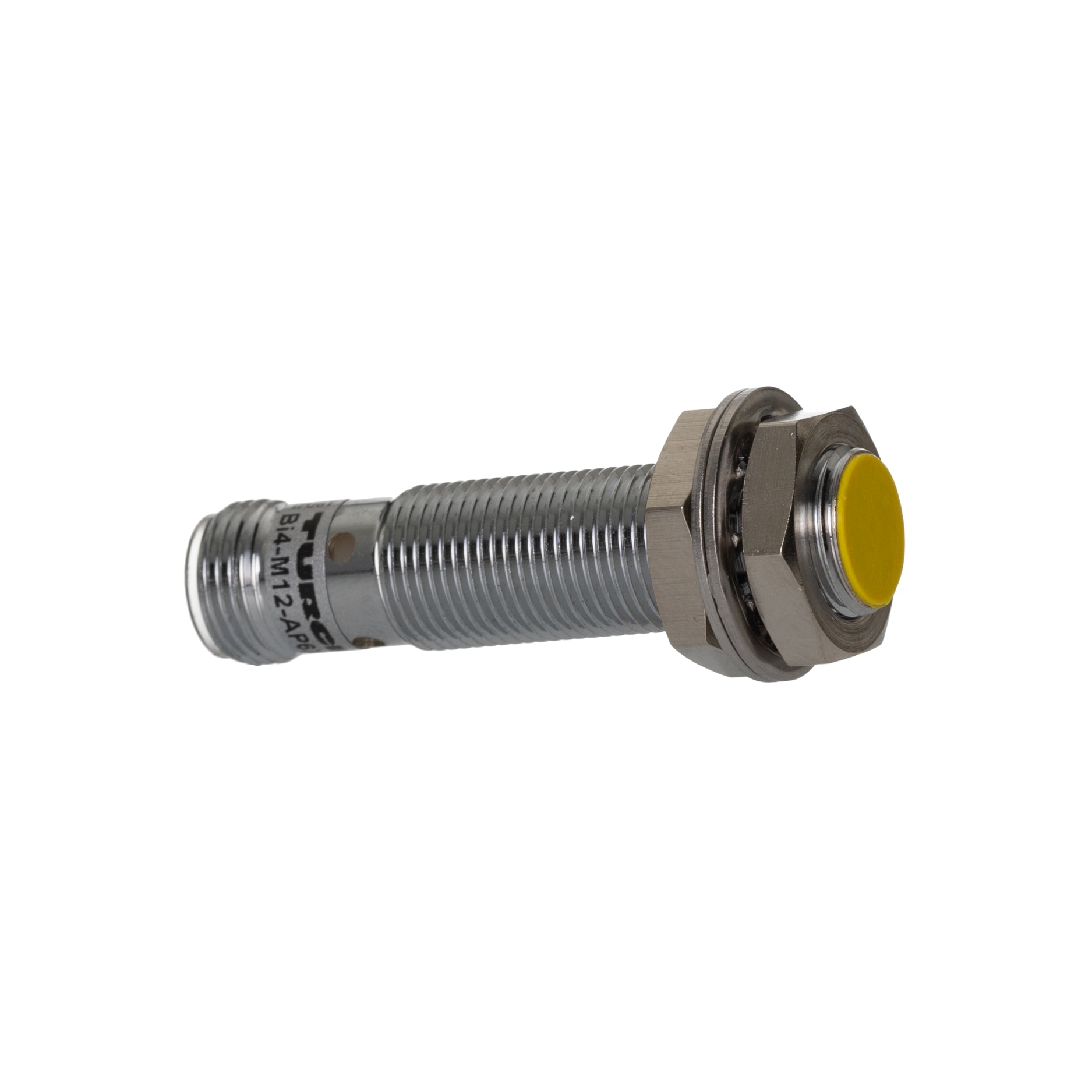

Turck NI8U-M12-AP6X-H1141

Turck NI8U-M12-AP6X-H1141

Overview

The Turck NI8U-M12-AP6X-H1141 is a compact M12 inductive proximity sensor built for reliable metal detection in harsh industrial environments. With an extended 8 mm sensing distance, it provides greater installation flexibility than standard inductive sensors, allowing the sensor to be placed farther from the target without losing detection reliability.

Key Features

• 8 mm extended sensing distance for added mounting flexibility

• Compact M12 barrel design for space-constrained applications

• PNP normally open output for direct PLC compatibility

• Designed for flush mounting in metal

• High immunity to vibration, dust, and electrical noise

• LED status indicator for quick diagnostics

• Built for long-term use in industrial automation

Technical Specifications

• Model: NI8U-M12-AP6X-H1141

• Technology: Inductive proximity sensing

• Sensing Range: 8 mm (flush)

• Output Type: PNP, Normally Open (NO)

• Operating Voltage: 10–30 V DC

• Housing Thread: M12 × 1

• Max Load Current: ~200 mA typical

• Protection Rating: IP67 or equivalent industrial sealing

• Material: Rugged plated metal housing

• Operating Temperature: –25 °C to +70 °C

• Connection Type: Cable or connector style depending on configuration

Applications

• Metal detection on automated machinery and conveyors

• Assembly stations with precise part presence sensing

• Robotics and manufacturing equipment

• Tooling and fixture monitoring

• Harsh industrial environments with contaminants

Why Choose Turck NI8U-M12-AP6X-H1141?

• Double the typical sensing range of standard M12 inductive sensors

• Compact form factor suited for machine integration

• Proven reliability in heavy-duty industrial operation

• Simple wiring and integration into automation controls

• Manufactured by Turck — a leader in sensing technology

Order Now

Boost automation reliability and simplify installation with the Turck NI8U-M12-AP6X-H1141, the extended-range inductive sensor built for tough industrial tasks.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
