Turck BI20R-W30-DAP6X-H1141

Turck BI20R-W30-DAP6X-H1141

Overview

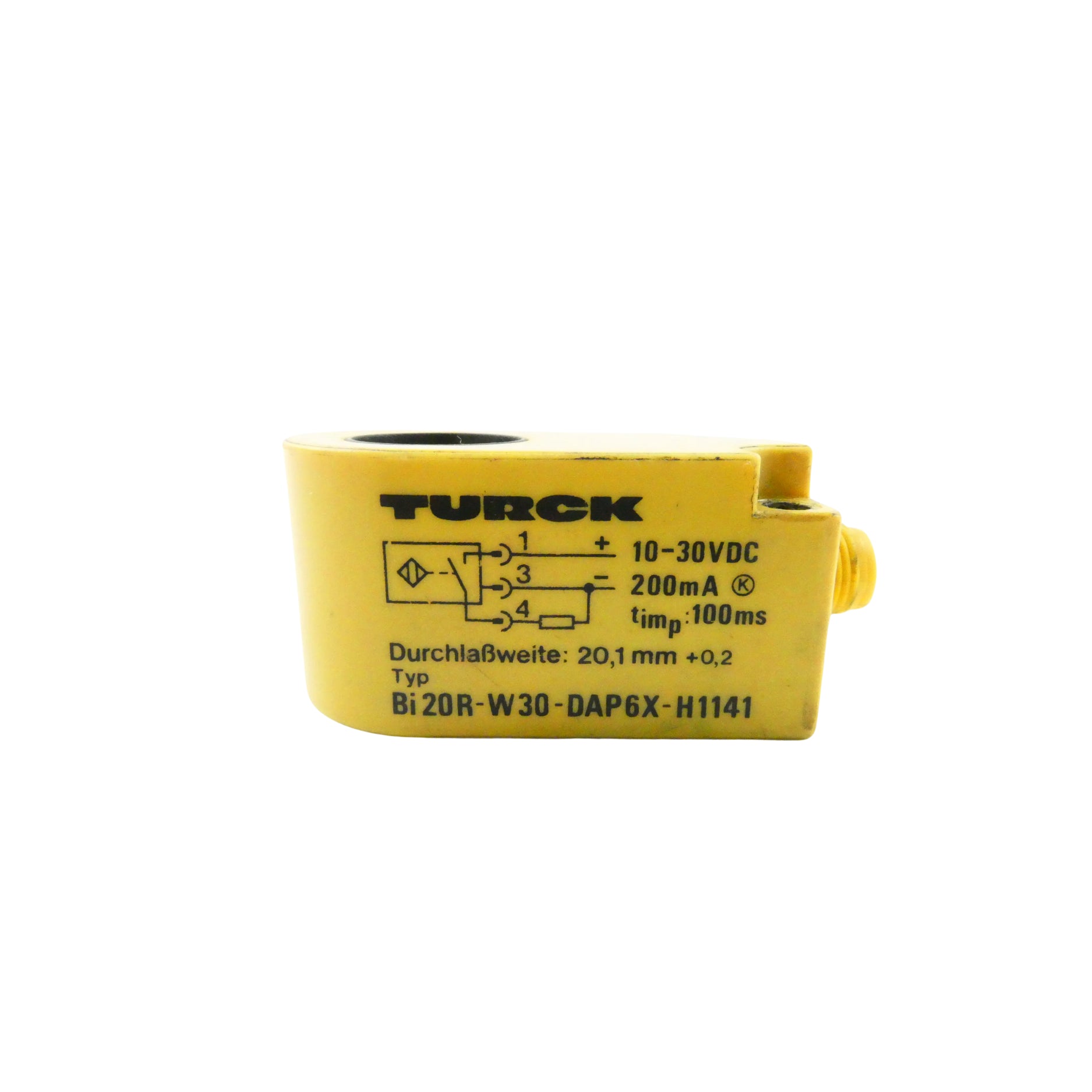

The Turck BI20R-W30-DAP6X-H1141 is a rectangular W30 block-style inductive proximity sensor with a large 20 mm sensing range.
This extended range makes it ideal for applications requiring large clearances or detection of larger metal objects.
This model features a PNP Normally Open switching output.

Key Features

• 20 mm sensing distance (long range)

• W30 rectangular block housing

• PNP NO switching output

• Rugged industrial construction

• Ideal where M30 and M18 cylinders do not have the needed geometry

Technical Specifications

• Model: BI20R-W30-DAP6X-H1141

• Technology: Inductive proximity sensing

• Housing: W30 block style

• Sensing Range: 20 mm nominal

• Output: PNP — Normally Open

• Voltage Supply: 10–30 V DC

• Variant: H1141 version

Applications

• conveyor lines detecting metal pallets

• automotive production

• position feedback on large moving metal plates

• detection of metal objects with larger standoff distances

• industrial machinery with wide mounting surfaces

Why Choose This Model?

• delivers very long range sensing for inductive technology

• block housing allows solid mounting on machine walls

• PNP NO output is PLC-friendly and quick to integrate

Order Now

The Turck BI20R-W30-DAP6X-H1141 is the ideal choice for long-distance industrial metal detection in flat-mount applications.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
