Sharp LQ190E1LW02

Sharp LQ190E1LW02

Overview

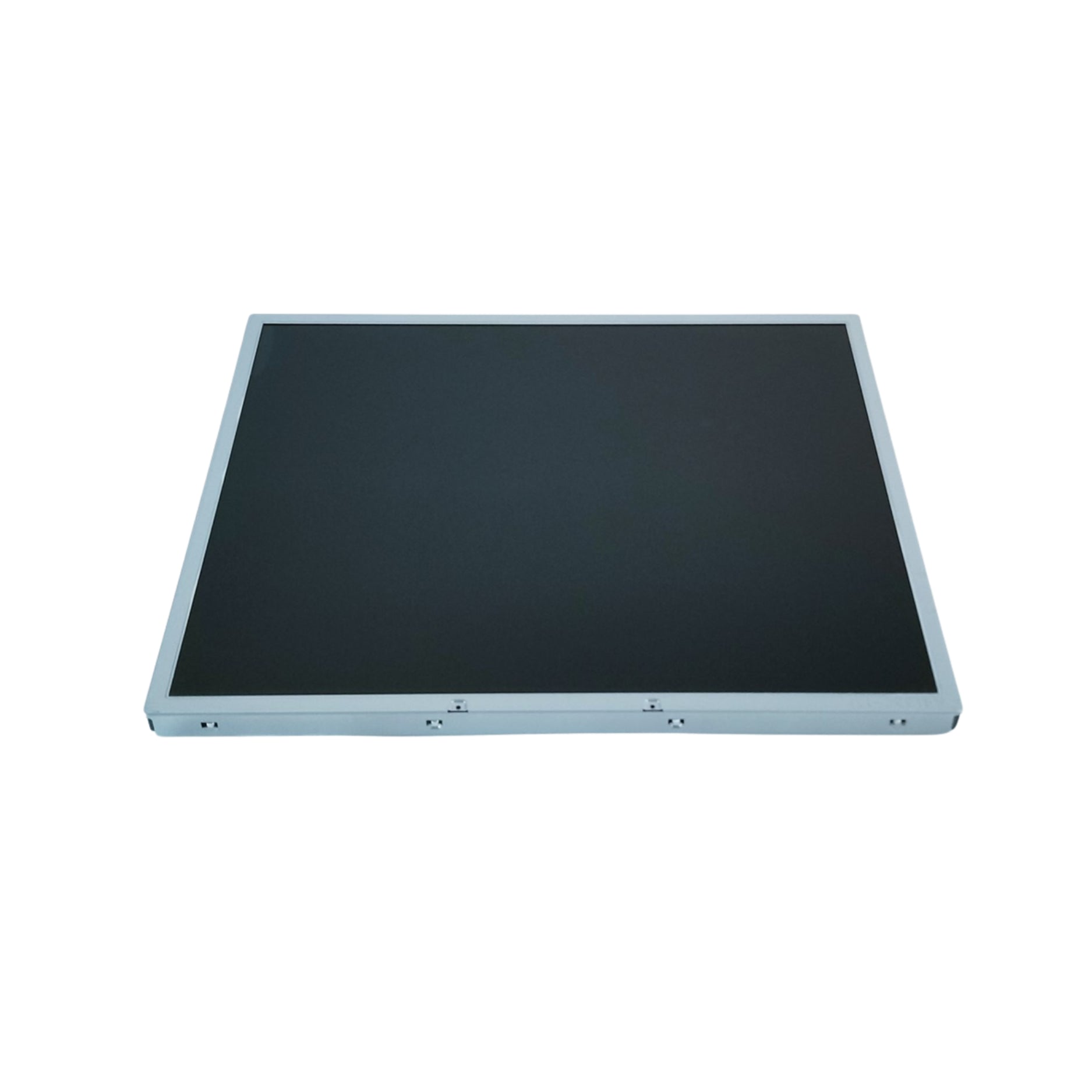

The Sharp LQ190E1LW02 is a 19.0-inch TFT LCD module designed for industrial, embedded, and HMI (Human-Machine Interface) applications. Featuring 1280×1024 (SXGA) resolution and LED backlight, it delivers sharp visuals, consistent brightness, and reliable operation for demanding industrial environments.

Key Features

• 19.0-inch TFT LCD panel

• Resolution: 1280×1024 (SXGA)

• LED backlight with long operational life

• High contrast and clear image quality

• Rugged industrial-grade construction

• Easy integration into embedded and HMI systems

Technical Specifications

• Sharp Code: LQ190E1LW02

• Display Size: 19.0"

• Resolution: 1280×1024 (SXGA)

• Display Type: TFT LCD

• Backlight: LED

• Brightness: 350 cd/m² (typical)

• Contrast Ratio: 700:1 (typical)

• Viewing Angle: 170° horizontal / 160° vertical

• Operating Temperature: –10 °C to +60 °C

• Storage Temperature: –20 °C to +70 °C

• Interface: LVDS

Applications

• Industrial control panels

• Embedded systems

• Human-Machine Interfaces (HMIs)

• Automation and monitoring equipment

• Test and measurement devices

Why Choose Sharp LQ190E1LW02?

• Sharp TFT technology ensures crisp and reliable visuals

• LED backlight provides long-life brightness and energy efficiency

• Durable industrial-grade design for harsh environments

• Ideal for embedded, HMI, and automation applications

Order Now

Choose the Sharp LQ190E1LW02 — a dependable 19.0-inch TFT LCD display built for industrial, embedded, and HMI applications.
