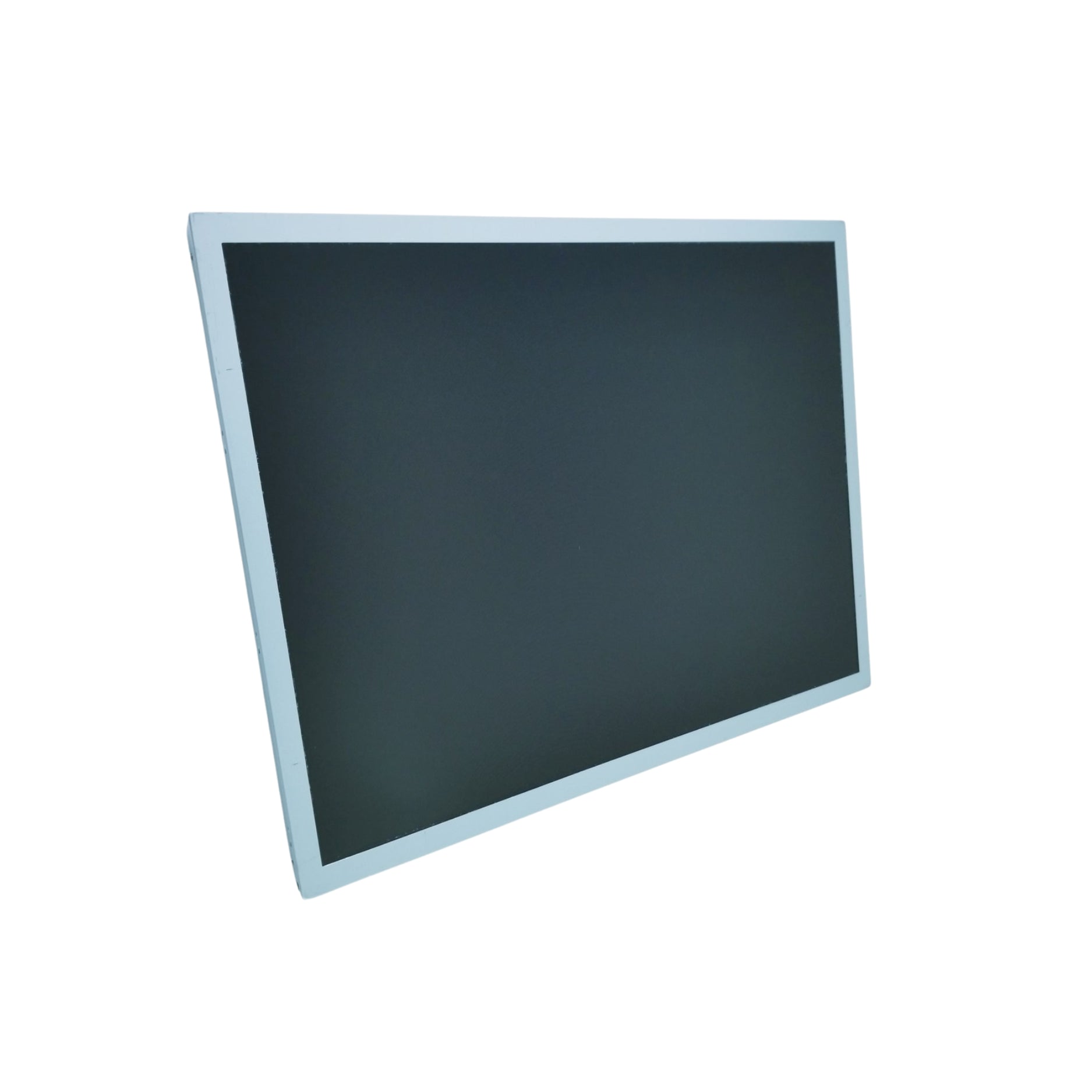

Sharp LQ150X1LX96

Sharp LQ150X1LX96

Overview

The Sharp LQ150X1LX96 is a 15.0-inch TFT LCD module designed for industrial, embedded, and HMI (Human-Machine Interface) applications. Featuring 1024×768 (XGA) resolution and LED backlight, it provides crisp visuals, reliable brightness, and long-term durability for demanding environments.

Key Features

• 15.0-inch TFT LCD panel

• Resolution: 1024×768 (XGA)

• LED backlight with long operational life

• High contrast and sharp image quality

• Rugged industrial-grade construction

• Easy integration into embedded and HMI systems

Technical Specifications

• Sharp Code: LQ150X1LX96

• Display Size: 15.0"

• Resolution: 1024×768 (XGA)

• Display Type: TFT LCD

• Backlight: LED

• Brightness: 400 cd/m² (typical)

• Contrast Ratio: 700:1 (typical)

• Viewing Angle: 160° horizontal / 140° vertical

• Operating Temperature: –10 °C to +60 °C

• Storage Temperature: –20 °C to +70 °C

• Interface: LVDS

Applications

• Industrial control panels

• Embedded systems

• Human-Machine Interfaces (HMIs)

• Automation and monitoring equipment

• Test and measurement devices

Why Choose Sharp LQ150X1LX96?

• Sharp TFT technology ensures clear and reliable visuals

• LED backlight provides long-life brightness and energy efficiency

• Durable design suitable for harsh industrial environments

• Ideal for embedded, HMI, and automation applications

Order Now

Choose the Sharp LQ150X1LX96 — a dependable 15.0-inch TFT LCD display built for industrial, embedded, and HMI applications.
