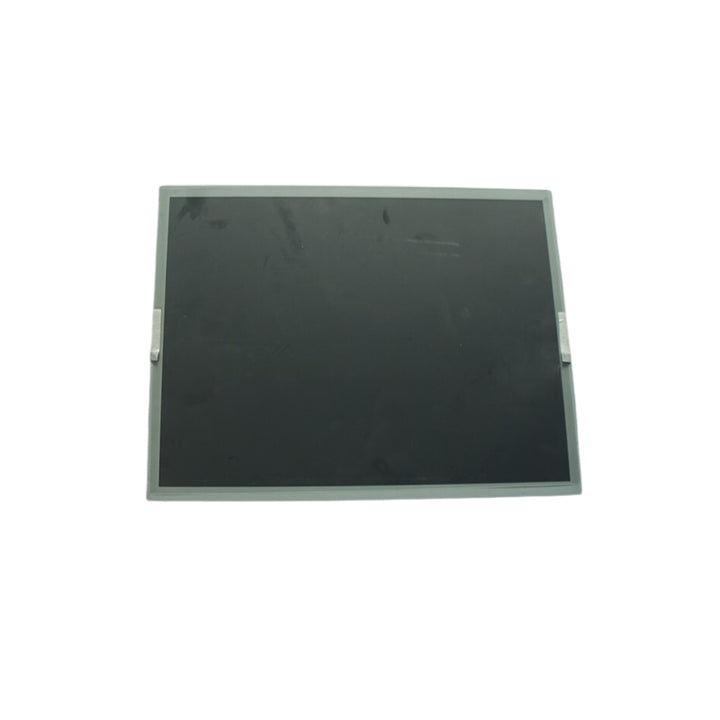

Sharp LQ150X1LX91

Sharp LQ150X1LX91

Overview

The Sharp LQ150X1LX91 is a 15-inch TFT LCD module engineered for high-quality visualization in industrial, medical, and automation environments. With its 1024×768 (XGA) resolution, LED backlight, and durable design, it delivers outstanding image clarity, long operating life, and reliable performance for professional applications.

Key Features

• 15-inch TFT LCD panel

• 1024×768 (XGA) resolution

• LED backlight for energy efficiency and longevity

• High brightness and excellent color reproduction

• Wide viewing angles for improved visibility

• Industrial-grade construction for demanding environments

Technical Specifications

• Sharp Code: LQ150X1LX91

• Display Size: 15"

• Resolution: 1024×768 (XGA)

• Display Type: TFT LCD

• Backlight: LED

• Brightness: 400 cd/m² (typical)

• Contrast Ratio: 700:1 (typical)

• Viewing Angle: 160° horizontal / 140° vertical

• Interface: LVDS

• Operating Temperature: –10 °C to +60 °C

• Storage Temperature: –20 °C to +70 °C

Applications

• Industrial control and automation panels

• Human-Machine Interfaces (HMIs)

• Medical display equipment

• Testing and measuring instruments

• Embedded display systems

Why Choose Sharp LQ150X1LX91?

• Sharp image quality with stable performance

• Long-life LED backlight reduces maintenance

• Reliable operation in continuous-use environments

• Ideal for industrial, medical, and automation displays

Order Now

Choose the Sharp LQ150X1LX91 — a 15-inch XGA TFT LCD display offering exceptional clarity, reliability, and efficiency for professional applications.
