Sharp LQ150X1LGN2C

Sharp LQ150X1LGN2C

Overview

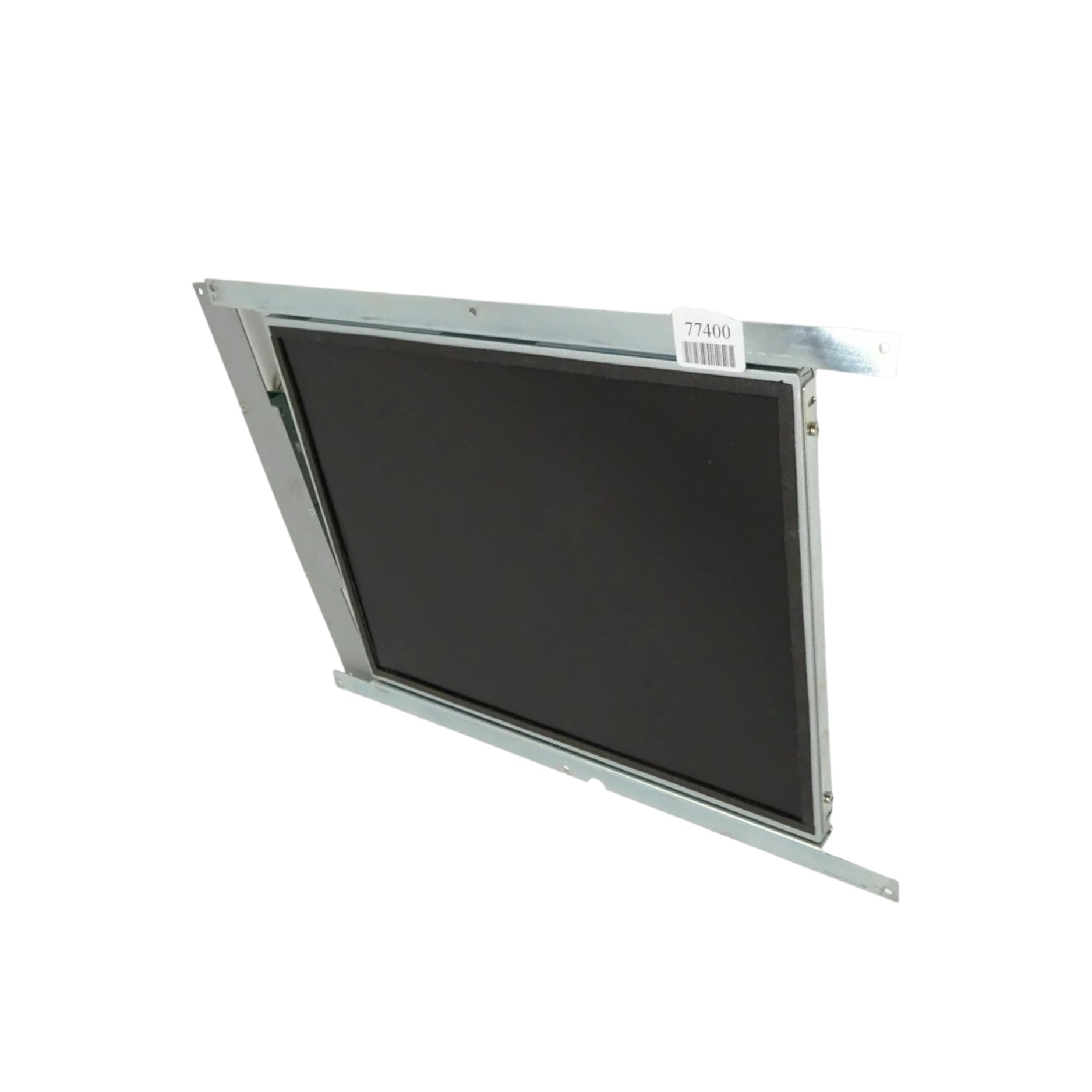

The Sharp LQ150X1LGN2C is a 15-inch TFT LCD module engineered for high-performance industrial and embedded display applications. Featuring XGA 1024×768 resolution, an efficient LED backlight, and excellent visibility, it ensures reliable performance and crisp image reproduction across demanding environments.

Key Features

• 15-inch TFT LCD display

• XGA resolution: 1024×768

• LED backlight with long operating life

• High contrast and uniform brightness

• Excellent color reproduction and wide viewing angles

• Robust design for industrial use

Technical Specifications

• Sharp Code: LQ150X1LGN2C

• Display Size: 15"

• Resolution: 1024×768 (XGA)

• Display Type: TFT LCD

• Backlight: LED

• Brightness: 450 cd/m² (typical)

• Contrast Ratio: 700:1 (typical)

• Viewing Angle: 160° horizontal / 140° vertical

• Interface: LVDS

• Operating Temperature: –10 °C to +60 °C

• Storage Temperature: –20 °C to +70 °C

Applications

• Industrial control panels

• Human-Machine Interfaces (HMIs)

• Medical diagnostic and imaging systems

• Measurement and monitoring devices

• Automation and embedded systems

Why Choose Sharp LQ150X1LGN2C?

• High reliability for continuous industrial operation

• LED backlight ensures low power consumption and long service life

• Sharp XGA technology guarantees clear, bright visuals

• Optimized for embedded, medical, and automation environments

Order Now

Experience professional-grade performance with the Sharp LQ150X1LGN2C — a 15-inch TFT LCD display built for clarity, endurance, and consistent quality.

Return to Sharp Displays

Return to TFT Display Modules

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
