Sharp LQ150X1LGN2A

Sharp LQ150X1LGN2A

Overview

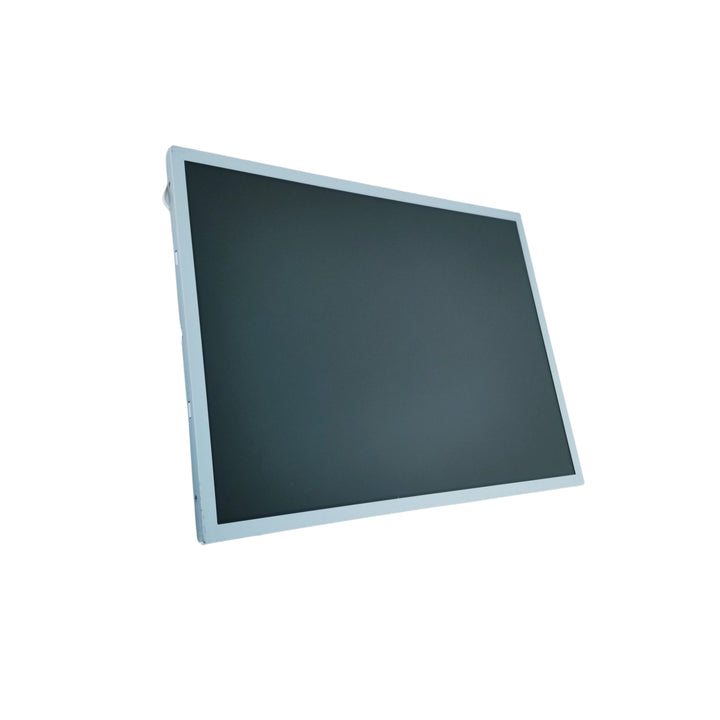

The Sharp LQ150X1LGN2A is a 15-inch TFT LCD module built for industrial, medical, and automation display systems. With its XGA 1024×768 resolution and bright LED backlight, this display ensures outstanding image clarity, color uniformity, and long-term reliability for professional applications.

Key Features

• 15-inch TFT LCD panel

• XGA resolution: 1024×768

• LED backlight with high brightness and long lifespan

• Excellent color reproduction and viewing angles

• Industrial-grade build for reliable performance

• Compatible with a variety of embedded and HMI systems

Technical Specifications

• Sharp Code: LQ150X1LGN2A

• Display Size: 15"

• Resolution: 1024×768 (XGA)

• Display Type: TFT LCD

• Backlight: LED

• Brightness: 450 cd/m² (typical)

• Contrast Ratio: 700:1 (typical)

• Viewing Angle: 160° horizontal / 140° vertical

• Interface: LVDS

• Operating Temperature: –10 °C to +60 °C

• Storage Temperature: –20 °C to +70 °C

Applications

• Industrial control panels

• Medical diagnostic equipment

• Human-Machine Interfaces (HMIs)

• Measurement and monitoring systems

• Kiosks and automation terminals

Why Choose Sharp LQ150X1LGN2A?

• High reliability for continuous operation environments

• Superior image quality and wide viewing angle

• Energy-efficient LED backlight design

• Long-life Sharp engineering for industrial and embedded applications

Order Now

Upgrade your system with the Sharp LQ150X1LGN2A — a dependable 15-inch TFT LCD built for clarity, efficiency, and durability in professional environments.

Return to Sharp Displays

Return to TFT Display Modules

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
