Sharp LQ150X1LG81

Sharp LQ150X1LG81

Overview

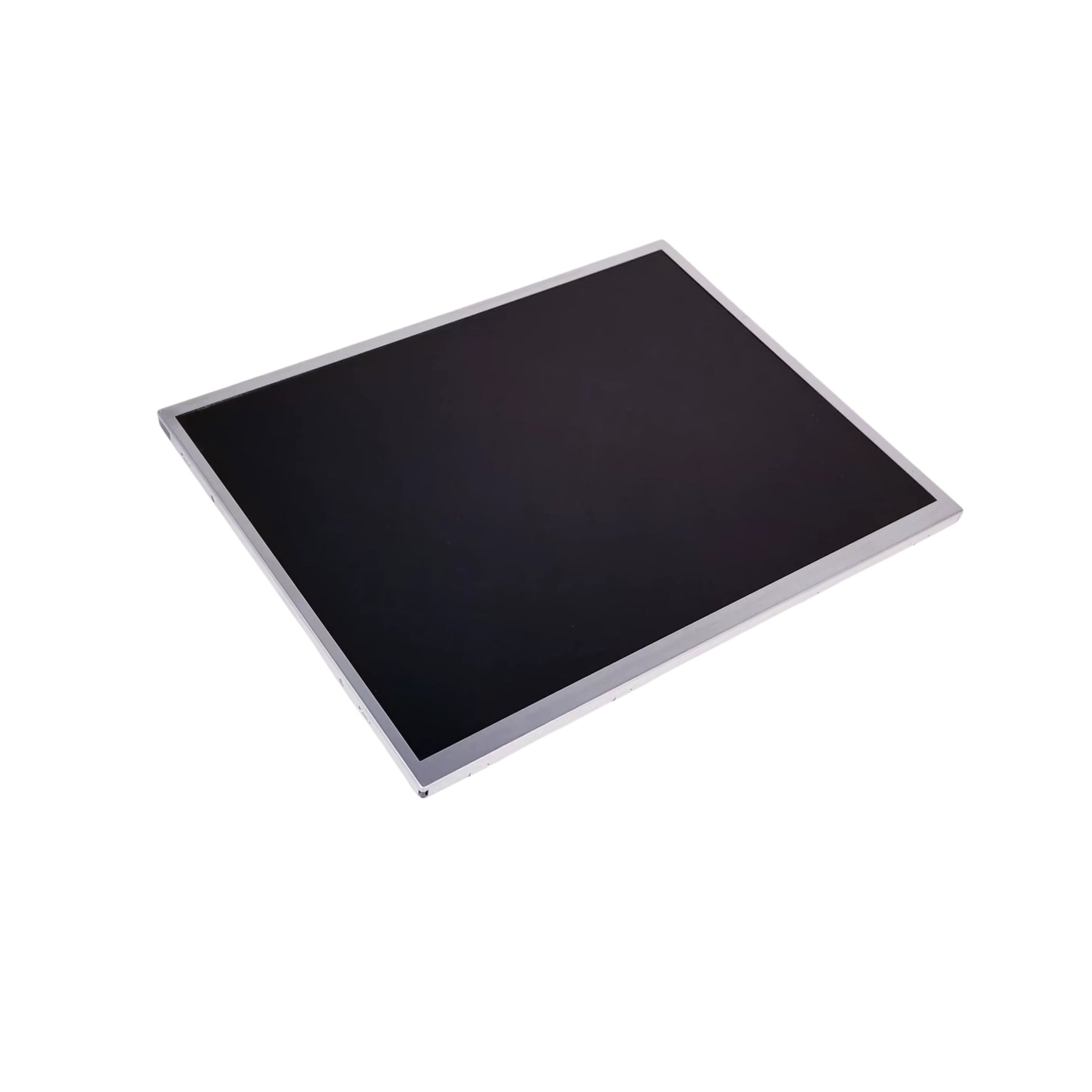

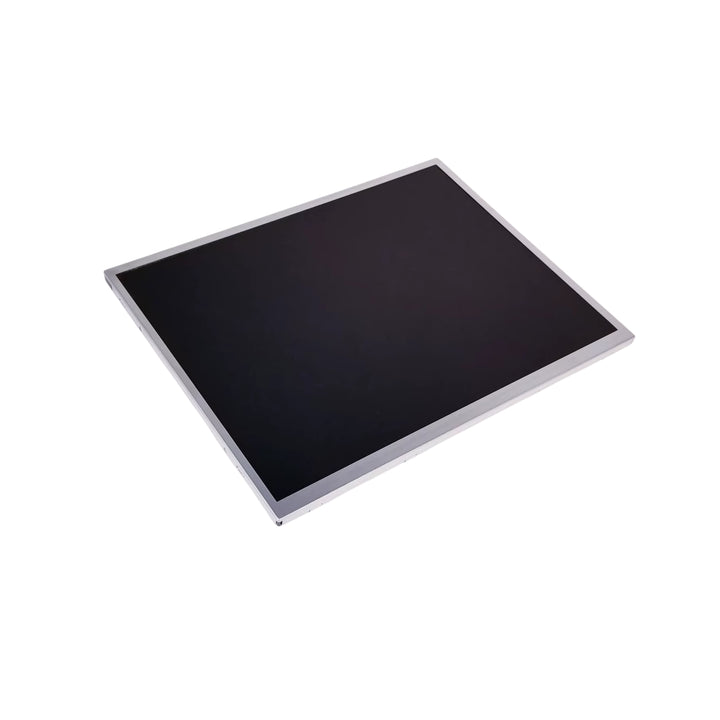

The Sharp LQ150X1LG81 is a 15.0-inch TFT LCD module developed for industrial, embedded, and HMI (Human-Machine Interface) applications. With 1024×768 (XGA) resolution and LED backlight, it offers excellent brightness, reliable long-term operation, and crisp visual quality for demanding environments.

Key Features

• 15.0-inch TFT LCD panel

• Resolution: 1024×768 (XGA)

• LED backlight for long service life

• High brightness and sharp image quality

• Rugged, industrial-grade construction

• Easy system integration

Technical Specifications

• Sharp Code: LQ150X1LG81

• Display Size: 15.0"

• Resolution: 1024×768 (XGA)

• Display Type: TFT LCD

• Backlight: LED

• Brightness: 400 cd/m² (typical)

• Contrast Ratio: 700:1 (typical)

• Viewing Angle: 160° horizontal / 140° vertical

• Operating Temperature: –10 °C to +60 °C

• Storage Temperature: –20 °C to +70 °C

• Interface: LVDS

Applications

• Industrial control panels

• Embedded computing systems

• Human-Machine Interfaces (HMIs)

• Automation and monitoring equipment

• Test and measurement devices

Why Choose Sharp LQ150X1LG81?

• Sharp TFT technology for reliable, clear image quality

• Long-life LED backlight for efficient brightness

• Industrial-grade durability for harsh environments

• Optimized for embedded and HMI integration

Order Now

Choose the Sharp LQ150X1LG81 — a robust 15.0-inch TFT LCD display tailored for industrial, embedded, and automation applications.
