HITACHI TX24D55VC1CAA

HITACHI TX24D55VC1CAA

Overview

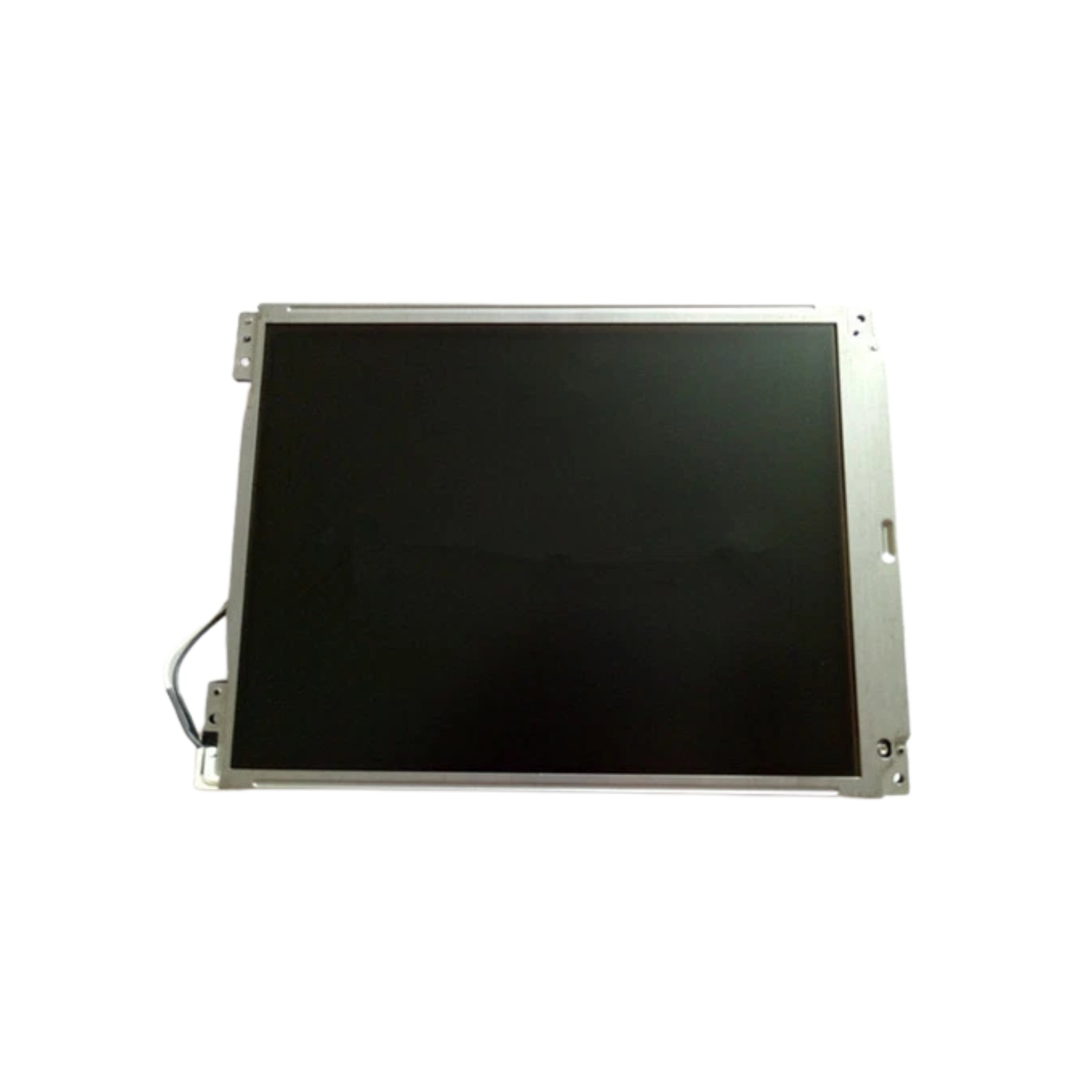

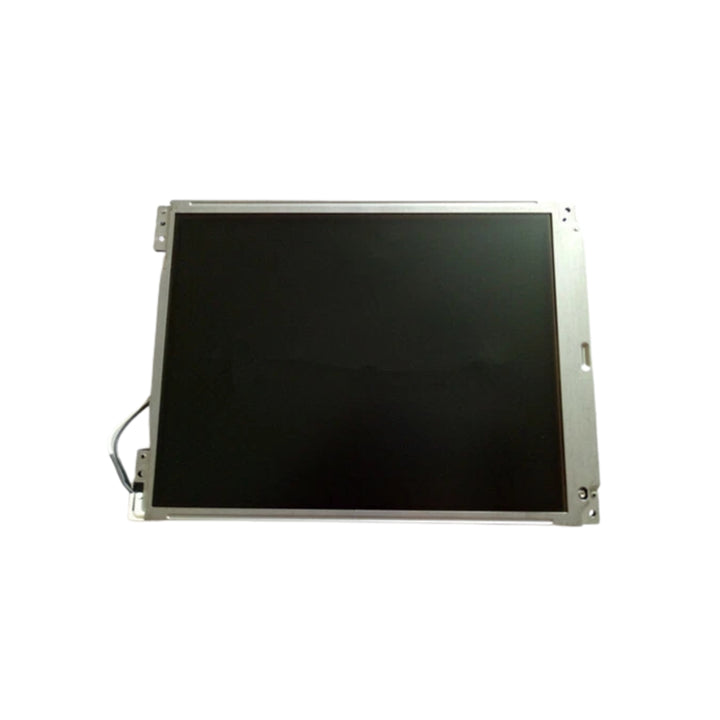

The HITACHI TX24D55VC1CAA is a 9.0-inch TFT LCD module engineered for industrial, automotive, and embedded systems. Featuring an 800×480 (WVGA) resolution and LED backlight, it provides outstanding image clarity, brightness, and durability under demanding environmental conditions.

Key Features

• 9.0-inch TFT LCD panel

• WVGA resolution: 800×480

• LED backlight for long lifespan and uniform illumination

• High brightness and wide viewing angles

• Robust design for industrial and automotive use

• Compatible with embedded display systems

Technical Specifications

• HITACHI Code: TX24D55VC1CAA

• Display Size: 9.0"

• Resolution: 800×480 (WVGA)

• Display Type: TFT LCD

• Backlight: LED

• Brightness: 400 cd/m² (typical)

• Contrast Ratio: 700:1 (typical)

• Viewing Angle: 160° horizontal / 140° vertical

• Interface: LVDS

• Operating Temperature: –30 °C to +80 °C

• Storage Temperature: –30 °C to +85 °C

Applications

• Industrial automation and control systems

• Automotive display units

• Human-Machine Interface (HMI) panels

• Embedded and portable devices

• Medical and diagnostic equipment

Why Choose HITACHI TX24D55VC1CAA?

• Exceptional image quality and color uniformity

• Energy-efficient LED backlight for long operational life

• Reliable performance in harsh environments

• Ideal for automotive, industrial, and embedded applications

Order Now

Upgrade your system with the HITACHI TX24D55VC1CAA, a durable 9.0-inch TFT LCD display offering brilliant visuals, energy efficiency, and proven reliability for professional use.

Return to Hitachi Displays

Return to TFT Display Modules

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
