HITACHI SX14Q006

HITACHI SX14Q006

Overview

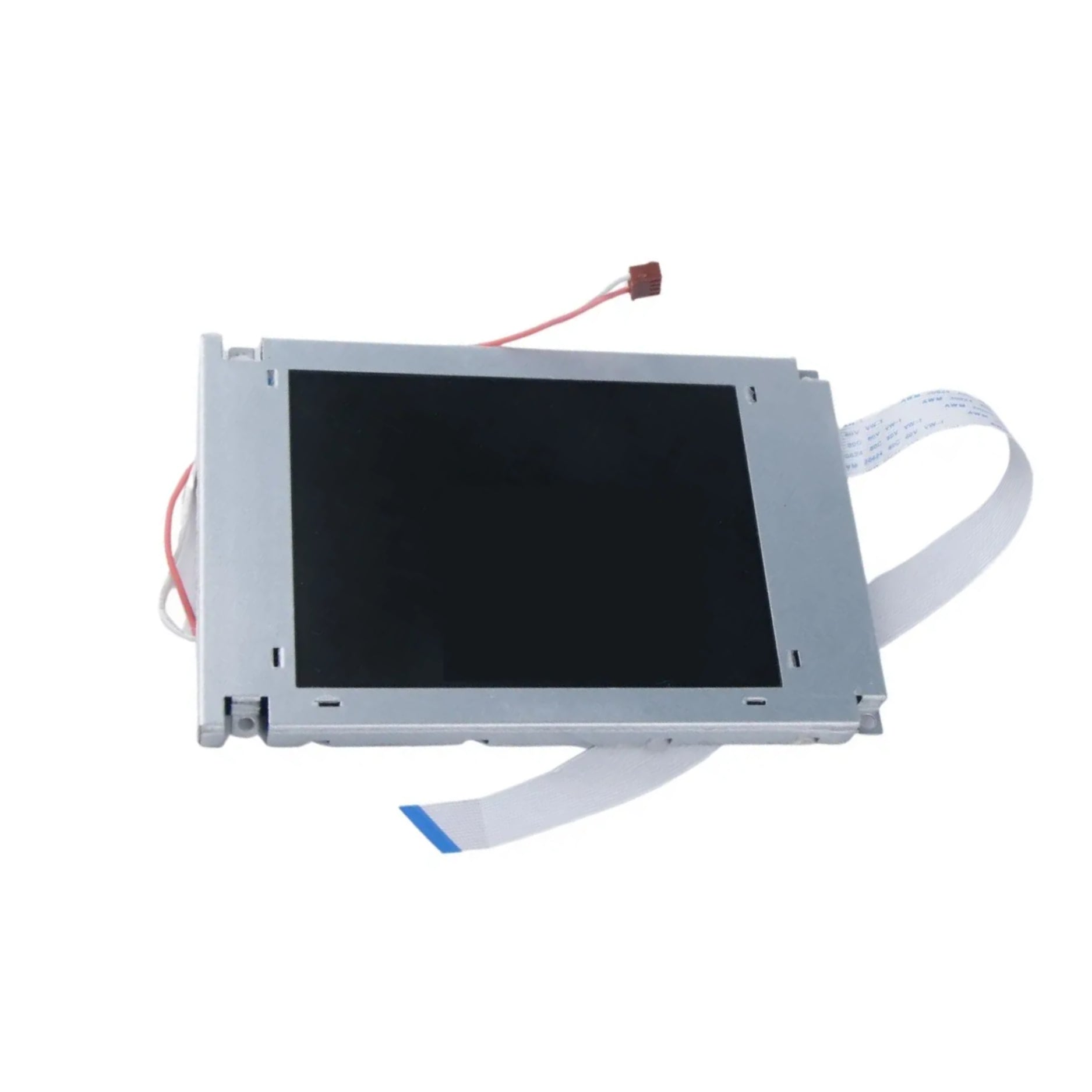

The HITACHI SX14Q006 is a 5.7-inch TFT LCD display module designed for industrial, embedded, and HMI applications. With QVGA 320×240 resolution and a CCFL backlight, it provides bright, high-contrast visuals with stable performance in demanding environments.

Key Features

• 5.7-inch TFT LCD panel

• 320×240 (QVGA) resolution

• CCFL backlight for consistent illumination

• High image clarity and color stability

• Durable design for industrial use

• Easy integration into embedded and HMI systems

Technical Specifications

• HITACHI Code: SX14Q006

• Display Size: 5.7"

• Resolution: 320×240 (QVGA)

• Display Type: TFT LCD

• Backlight: CCFL

• Brightness: 250 cd/m² (typical)

• Contrast Ratio: 150:1 (typical)

• Viewing Angle: 100° horizontal / 80° vertical

• Interface: RGB parallel

• Operating Temperature: –10 °C to +60 °C

• Storage Temperature: –20 °C to +70 °C

Applications

• Industrial automation panels

• Embedded system displays

• Human-Machine Interface (HMI) terminals

• Measurement and testing instruments

• Monitoring and control devices

Why Choose HITACHI SX14Q006?

• Reliable TFT technology for clear, vivid visuals

• CCFL backlight provides stable illumination and long life

• Compact, rugged design suitable for industrial environments

• Trusted HITACHI performance for embedded and automation systems

Order Now

Upgrade your industrial or embedded systems with the HITACHI SX14Q006 — a 5.7-inch TFT LCD display built for clarity, durability, and reliability.
