SIEMENS 6ES7522-1BL10-0AA0 | S7-1500 Digital Output Module

SIEMENS 6ES7522-1BL10-0AA0 | S7-1500 Digital Output Module

OVERVIEW

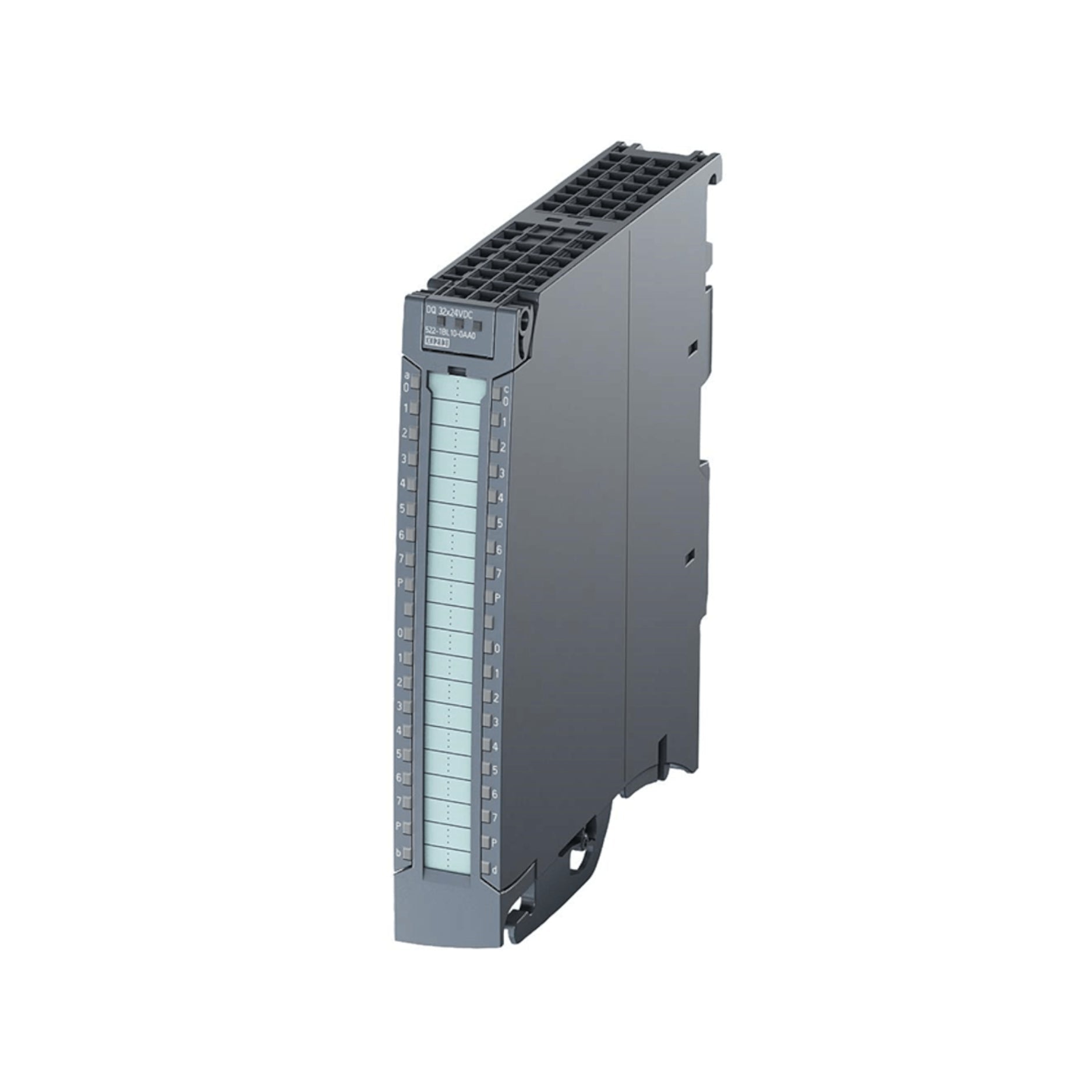

The Siemens 6ES7522-1BL10-0AA0 is a digital output module designed for the SIMATIC S7-1500 series. With 16 outputs (24V DC, 0.5A per channel), it offers fast switching times, diagnostic capabilities, and short-circuit protection, making it ideal for precise and reliable industrial control applications.

KEY FEATURES

• Model: Siemens 6ES7522-1BL10-0AA0
• Product Type: Digital Output Module
• Compatible System: SIMATIC S7-1500
• Number of Outputs: 16 digital outputs
• Output Voltage: 24V DC
• Output Current: 0.5A per channel
• Switching Time: Fast response for high-speed applications
• Diagnostics: Integrated status monitoring
• Short-Circuit Protection: Yes, per channel
• Connection Type: Front connector (screw terminal, not included)

TECHNICAL INFORMATION

• Voltage Range: 24V DC
• Number of Outputs: 16 digital outputs
• Output Current: 0.5A per channel
• Switching Type: PNP (positive switching)
• Response Time: Fast switching for high-performance automation
• Diagnostics: Yes (status LEDs, short-circuit detection)
• Protection Type: Short-circuit protection on all channels
• Connection Method: Screw terminal (requires front connector)
• Dimensions: 35mm x 147mm x 129mm (W x H x D)
• Operating Temperature: 0°C to +60°C
• Certifications: CE, UL, RoHS compliant

APPLICATIONS

• Industrial Automation: Reliable control of actuators, valves, and relays.
• Machine Control: High-speed switching for precise operations.
• Manufacturing Lines: Integration into S7-1500 PLC systems for automation.
• Process Control: Ensures accurate digital output management.

BENEFITS

• High-Speed Switching: Ensures fast response times for automation.
• Reliable Performance: Built-in diagnostics and short-circuit protection.
• Compact Design: Saves space in control panels.
• Easy Integration: Fully compatible with SIMATIC S7-1500 PLCs.
• Durability: Designed for industrial environments.

The Siemens 6ES7522-1BL10-0AA0 is a powerful and reliable digital output module for S7-1500 automation systems, delivering high-speed performance and robust diagnostics for industrial applications.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
