OVERVIEW

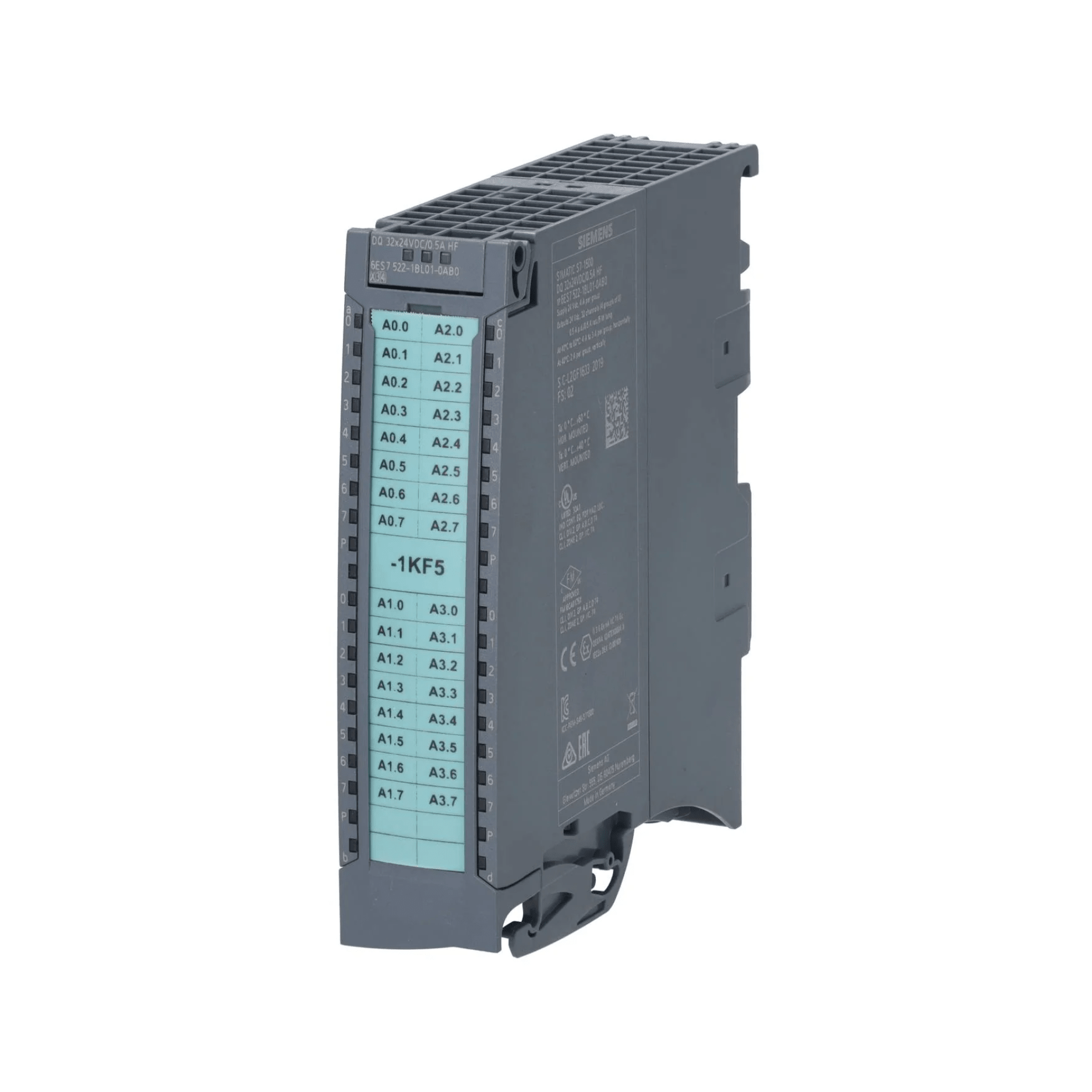

The Siemens 6ES7522-1BL01-0AB0 is a SIMATIC S7-1500 Digital Output Module, designed to provide fast and reliable switching of industrial control signals. With 32 digital outputs (24V DC, 0.5A per channel), it ensures efficient automation in various industrial environments. The module features integrated diagnostics, short-circuit protection, and seamless integration with S7-1500 PLCs.

KEY FEATURES

• Model: Siemens 6ES7522-1BL01-0AB0
• Product Type: Digital Output Module
• Compatible PLC: SIMATIC S7-1500
• Number of Outputs: 32 digital outputs
• Output Type: 24V DC, 0.5A per channel
• Switching Time: Fast response for real-time automation
• Diagnostics: Integrated status and fault monitoring
• Protection Features: Short-circuit and overload protection
• Connection: Front connector for easy wiring

TECHNICAL INFORMATION

• Output Voltage: 24V DC
• Number of Outputs: 32 digital outputs
• Output Current: 0.5A per channel
• Switching Capacity: High-speed switching for industrial applications
• Diagnostics: LED indicators for output status and fault detection
• Protection Class: Short-circuit and overload protection
• Power Supply: Via S7-1500 backplane
• Operating Temperature: 0°C to +60°C
• Mounting: DIN rail installation
• Certifications: CE, UL, RoHS compliant

APPLICATIONS

• Industrial Automation: Reliable digital signal control for machines and processes.
• Motor & Actuator Control: Precise switching of actuators and relays.
• Production Lines: Fast response for real-time industrial applications.
• Factory Automation: Ensures efficient signal transmission in industrial environments.

BENEFITS

• High-Speed Digital Switching: Fast and reliable output response.
• Scalable and Modular: Seamless integration with S7-1500 PLC systems.
• Advanced Diagnostics: Built-in fault monitoring and status indicators.
• Reliable & Durable: Short-circuit and overload protection for industrial safety.
• Compact & Efficient Design: Easy DIN rail mounting for optimized installation.

The Siemens 6ES7522-1BL01-0AB0 is a high-performance digital output module, designed for precision and reliability in industrial automation and process control applications.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
