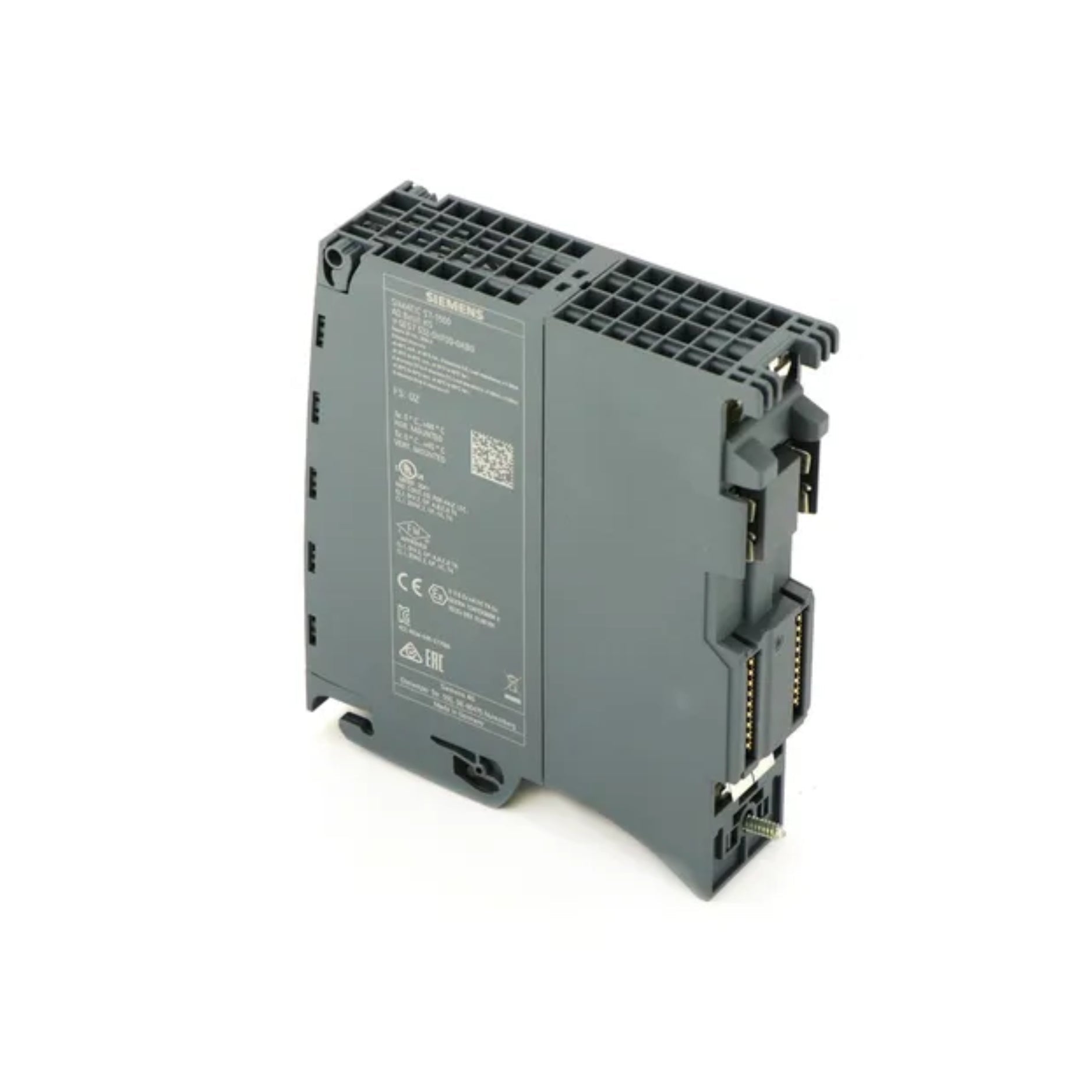

SIEMENS 6ES7532-5HF00-0AB0 | SIMATIC S7-1500 Analog Output Module

SIEMENS 6ES7532-5HF00-0AB0 | SIMATIC S7-1500 Analog Output Module

OVERVIEW

The Siemens 6ES7532-5HF00-0AB0 is a SIMATIC S7-1500 Analog Output Module designed to expand the output capabilities of Siemens PLCs. This module provides 8 analog outputs, supporting both voltage and current signals, ensuring precise control in industrial automation systems. It features high accuracy, fast signal conversion, and seamless integration with the S7-1500 series.

KEY FEATURES

• Model: Siemens 6ES7532-5HF00-0AB0
• Product Type: Analog Output Module
• Compatible PLC: SIMATIC S7-1500
• Number of Outputs: 8 analog outputs
• Output Signal Types: Voltage (0-10V) / Current (0-20mA, 4-20mA)
• Resolution: 16-bit DAC for high-precision control
• Diagnostics: Integrated monitoring and fault detection
• Communication: Backplane bus connection for fast data exchange

TECHNICAL INFORMATION

• Output Type: Analog (Voltage/Current)
• Number of Outputs: 8 Outputs
• Output Range:
  • Voltage: 0-10V
  • Current: 0-20mA, 4-20mA
• Resolution: 16-bit DAC for smooth signal control
• Accuracy: High-precision output for automation systems
• Diagnostics: Integrated short-circuit and fault monitoring
• Power Supply: Via S7-1500 backplane
• Operating Temperature: 0°C to +60°C
• Mounting: DIN rail installation
• Certifications: CE, UL, RoHS compliant

APPLICATIONS

• Process Control: Precise analog signal output for industrial automation.
• Machine Automation: Controlling motors, actuators, and proportional valves.
• Energy Management: Regulating electrical signals for optimized system performance.
• Industrial Systems: Ensuring high-precision signal processing in automation networks.

BENEFITS

• High-Precision Control: 16-bit resolution ensures accurate signal output.
• Flexible Signal Compatibility: Supports both voltage and current outputs.
• Seamless PLC Integration: Designed for Siemens S7-1500 automation systems.
• Reliable Performance: Built-in diagnostics ensure stable operation.
• Compact & Modular Design: Efficient DIN rail mounting for space-saving installations.

The Siemens 6ES7532-5HF00-0AB0 is a high-performance analog output module, essential for S7-1500 PLCs, delivering precision and flexibility for industrial automation and process control applications.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
