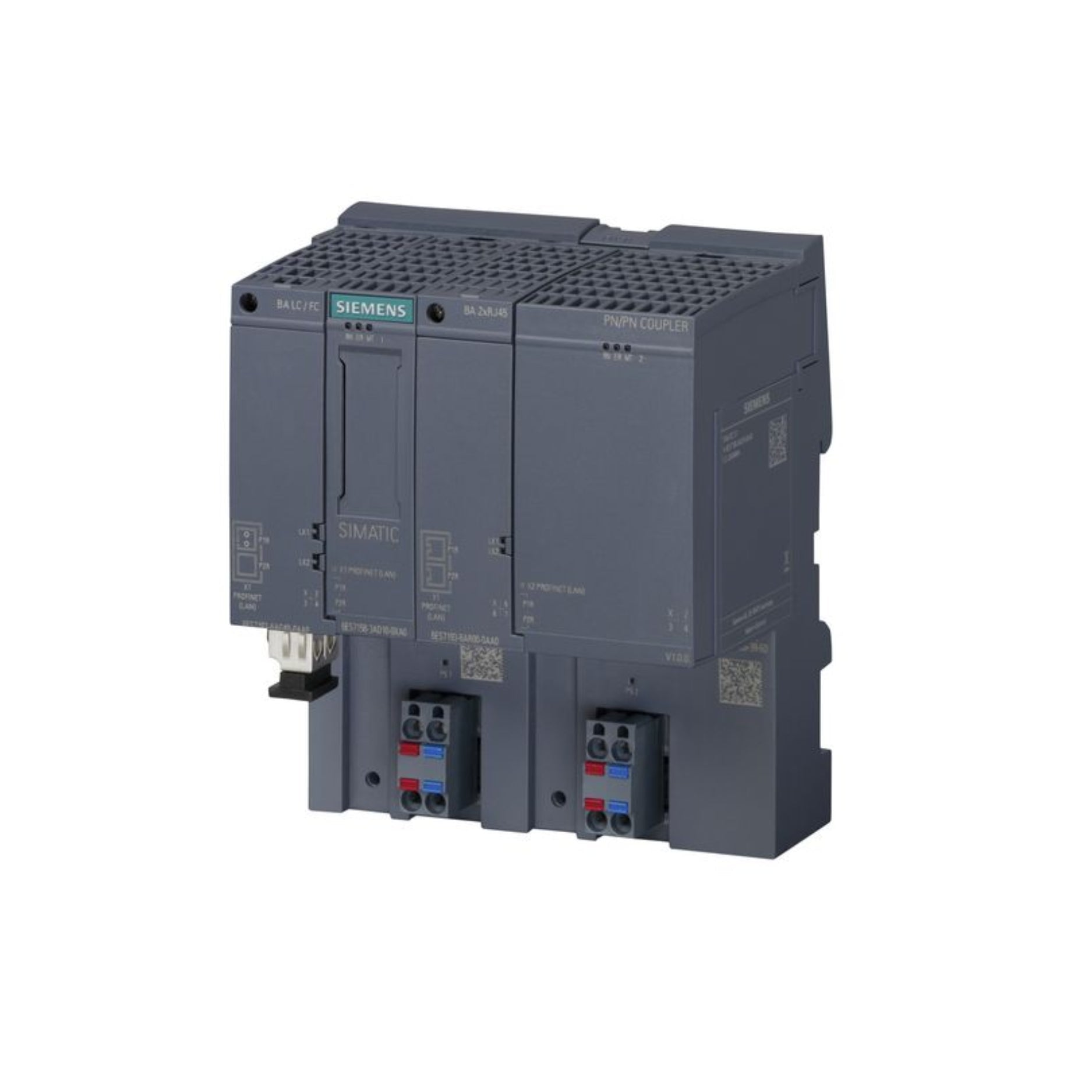

SIEMENS 6ES7158-3AD10-0XA0 | SIMATIC ET 200SP PROFINET Coupler

SIEMENS 6ES7158-3AD10-0XA0 | SIMATIC ET 200SP PROFINET Coupler

OVERVIEW

The Siemens 6ES7158-3AD10-0XA0 is a PROFINET Coupler from the SIMATIC ET 200SP series, enabling communication between PROFINET controllers and ET 200SP I/O stations. This module ensures seamless data exchange, high-speed performance, and easy integration into industrial automation networks. With its compact and modular design, it provides scalability and flexibility, making it suitable for various machine automation, factory automation, and process control applications.

KEY FEATURES

• Model: Siemens 6ES7158-3AD10-0XA0
• Product Type: SIMATIC ET 200SP PROFINET Coupler
• Communication Interface: PROFINET
• Fast Data Exchange: Ensures high-speed communication between controllers and I/O devices
• Compact and Modular: Saves space and allows for flexible system configurations
• Plug-and-Play Integration: Supports easy installation and commissioning
• Industrial-Grade Reliability: Designed for harsh industrial environments
• Diagnostic Functions: Integrated status LEDs for quick troubleshooting
• Power Supply: External 24 V DC power input

TECHNICAL INFORMATION

• Interface: PROFINET
• Data Transmission Speed: Up to 100 Mbit/s
• Number of I/O Modules Supported: Up to 64 ET 200SP modules
• Power Supply Voltage: 24 V DC
• Current Consumption: Approx. 250 mA
• Protection Class: IP20
• Operating Temperature: 0°C to +55°C
• Dimensions (H x W x D): 117 x 45 x 74 mm
• Mounting: DIN rail mounting
• Compliance & Certifications: CE, UL, CSA, RoHS

APPLICATIONS

• Factory Automation: Enables fast and reliable communication in automated production lines.
• Machine Control: Ideal for PLC-based systems, allowing smooth integration with Siemens controllers.
• Process Automation: Supports real-time data exchange for industrial process control.
• Material Handling Systems: Enhances performance and monitoring in logistics and warehousing.
• Energy Management: Helps in optimizing power consumption and system efficiency.

BENEFITS

• Seamless PROFINET Communication: Ensures fast and efficient data transfer between controllers and I/O stations.
• Compact and Modular Design: Reduces space requirements while allowing for easy expansion.
• High Reliability: Designed to operate in demanding industrial environments with robust performance.
• Easy Installation and Setup: Plug-and-play functionality simplifies integration and commissioning.
• Enhanced Diagnostics: Built-in status LEDs provide real-time feedback for quick troubleshooting.

The Siemens 6ES7158-3AD10-0XA0 SIMATIC ET 200SP PROFINET Coupler is a powerful and reliable solution for seamless PROFINET communication, ensuring efficient automation and high-performance control in industrial applications.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
