SIEMENS 6ES7522-1BH01-0AB0 | S7-1500 Digital Output Module

SIEMENS 6ES7522-1BH01-0AB0 | S7-1500 Digital Output Module

OVERVIEW

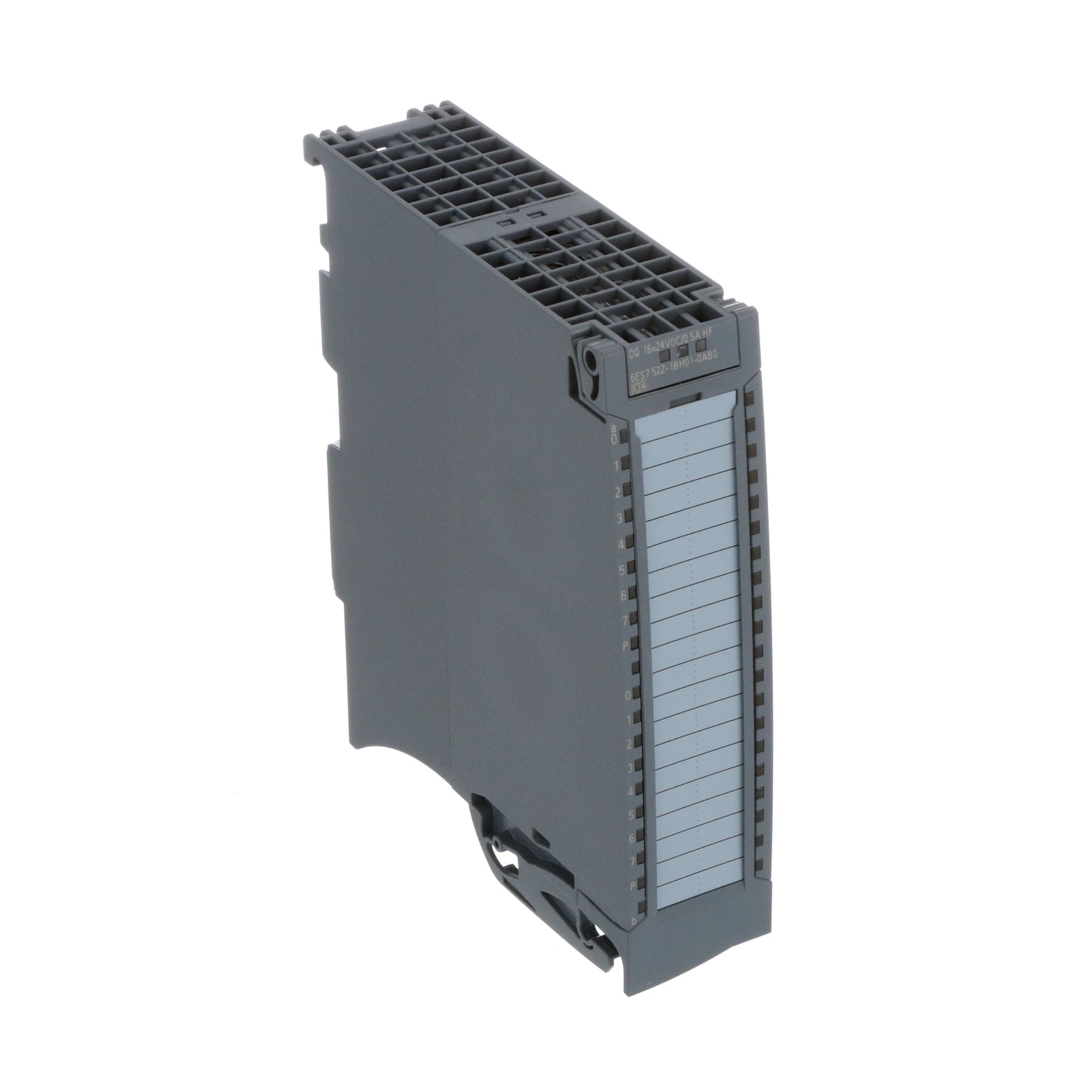

The Siemens 6ES7522-1BH01-0AB0 is a digital output module for the SIMATIC S7-1500 PLC, designed to provide 32 outputs (24V DC, 0.5A each). It ensures fast and reliable signal processing for industrial automation systems.

KEY FEATURES

• Model: Siemens 6ES7522-1BH01-0AB0

• Series: SIMATIC S7-1500

• Product Type: Digital Output Module

• Number of Outputs: 32

• Output Voltage: 24V DC

• Max Output Current: 0.5A per channel

• Response Time: < 1ms

• Connection Type: Front connector (40-pin)

• Protection Class: IP20

TECHNICAL INFORMATION

• Power Supply: 24V DC

• Switching Capacity: 0.5A per output

• Output Type: Transistor (PNP)

• Isolation: Optically isolated

• Operating Temperature: -20°C to +60°C

• Certifications: CE, UL, RoHS

APPLICATIONS

• Factory Automation: Controls actuators, solenoids, and indicator lights

• Process Automation: Manages digital signals in industrial plants

• Machine Control Systems: Provides fast and efficient output switching

• Building Automation: Controls lighting and security systems

BENEFITS

• High-Speed Switching: Fast response time for real-time applications

• Reliable Performance: Designed for continuous industrial operation

• Compact Design: Saves space in control panels

• Easy Integration: Compatible with S7-1500 PLCs

• Energy Efficient: Low power consumption per output

The Siemens 6ES7522-1BH01-0AB0 is a high-performance digital output module, perfect for precise control in industrial automation applications.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
