SIEMENS 6ES7521-1BH10-0AA0 | S7-1500 Digital Input Module

SIEMENS 6ES7521-1BH10-0AA0 | S7-1500 Digital Input Module

OVERVIEW

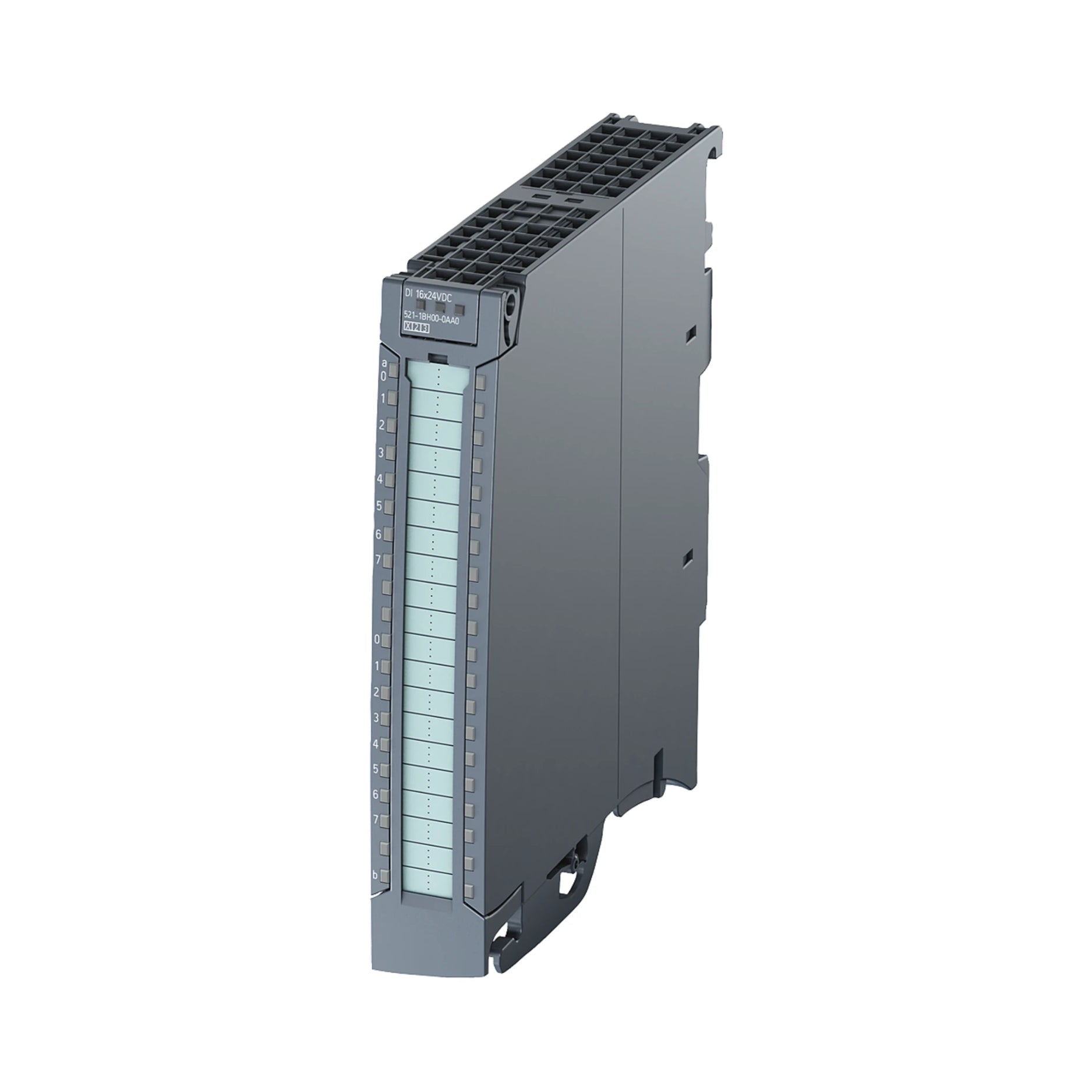

The Siemens 6ES7521-1BH10-0AA0 is a digital input module designed for the SIMATIC S7-1500 series. It offers 16 digital inputs at 24V DC, high-speed processing, and integrated diagnostics, making it ideal for industrial automation applications requiring precision and reliability.

KEY FEATURES

• Model: Siemens 6ES7521-1BH10-0AA0

• Series: SIMATIC S7-1500

• Product Type: Digital Input Module

• Number of Inputs: 16

• Input Voltage: 24V DC

• Input Type: Sink/Source

• Input Delay: Configurable (0.05 to 20 ms)

• Diagnostics: Integrated diagnostics and status LEDs

• Isolation: Optically isolated channels

• Mounting Type: DIN rail (for S7-1500 system)

TECHNICAL INFORMATION

• Operating Voltage Range: 20.4V to 28.8V DC

• Current per Channel: 3 mA at 24V DC

• Power Consumption: Approx. 4.5 W

• Response Time: <1 ms (configurable)

• Communication Interface: PROFINET (via CPU)

• Programming Software: TIA Portal

• Operating Temperature: -20°C to +60°C

• Certifications: CE, UL, RoHS, EN 61131-2

APPLICATIONS

• Industrial Automation: Precise digital input processing

• Machine Control: High-speed signal acquisition

• Process Monitoring: Reliable status detection

• Conveyor Systems: Optimized for real-time inputs

• Factory Automation: Seamless integration with S7-1500 PLCs

BENEFITS

• Fast and Accurate: High-speed input response for precise automation

• Integrated Diagnostics: Quick fault detection and troubleshooting

• Reliable Performance: Robust design for demanding industrial environments

• Easy Integration: Fully compatible with S7-1500 controllers and TIA Portal

• Scalable Solution: Expandable with other S7-1500 modules

The Siemens 6ES7521-1BH10-0AA0 digital input module enhances SIMATIC S7-1500 automation with high-speed processing, diagnostics, and reliable performance for industrial control systems.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
