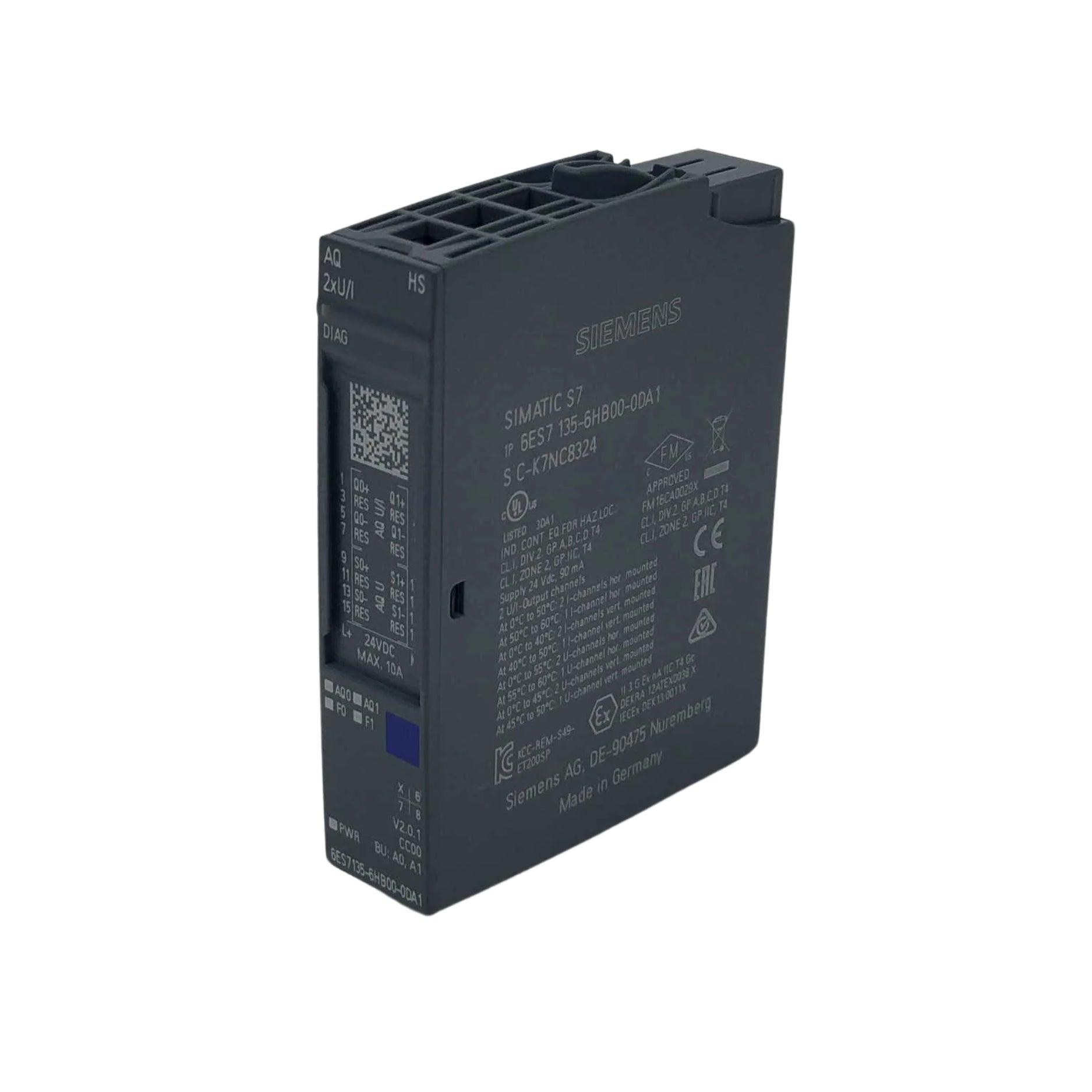

Siemens 6ES7135-6HB00-0DA1 | Analog Input Module

Siemens 6ES7135-6HB00-0DA1 | Analog Input Module

OVERVIEW

The Siemens 6ES7135-6HB00-0DA1 is an analog input module for the S7-1200 PLC system, designed to process analog signals from a variety of sensors and devices. This module enables the precise measurement and conversion of analog data into a digital format for further processing by the PLC, providing reliable and high-quality input for automation systems. It is ideal for applications requiring accurate signal processing in industries such as manufacturing, process control, and energy management.

KEY FEATURES

• Model: Siemens 6ES7135-6HB00-0DA1
• Type: Analog input module for S7-1200 PLC
• Number of Channels: 4 analog input channels
• Input Range: 0-10V, 4-20mA
• Resolution: 16-bit resolution for precise signal conversion
• Signal Processing: Supports voltage and current signal inputs
• Communication: Direct integration with S7-1200 PLC systems
• Mounting: Rail-mountable for easy installation in control panels
• Operating Temperature Range: -20°C to +60°C
• Protection: Short-circuit and overload protection for reliable performance

TECHNICAL INFORMATION

• Input Voltage Range: 0-10V DC
• Input Current Range: 4-20mA
• Resolution: 16-bit for accurate data conversion
• Input Impedance: High impedance for precise signal measurement
• Mounting Type: DIN rail mountable
• Operating Temperature Range: -20°C to +60°C
• Power Supply: Powered by S7-1200 PLC system
• Protection Features: Overload and short-circuit protection
• Standards Compliance: IEC 61131-2

APPLICATIONS

• Process Control: Used for accurate measurement of analog signals in process control systems
• Manufacturing Systems: Collects and processes data from sensors in industrial machinery
• Energy Management: Monitors voltage and current in energy management systems
• HVAC Systems: Measures temperature, humidity, and other environmental parameters
• Automation Systems: Integrates into automated systems for monitoring and control of analog processes

BENEFITS

• High Accuracy: 16-bit resolution ensures precise signal measurement and processing
• Flexibility: Supports both voltage and current input signals for versatile applications
• Easy Integration: Seamless integration with S7-1200 PLC for streamlined system setup
• Reliable Operation: Protection features ensure safe and continuous operation in industrial environments
• Space-Efficient: DIN rail mounting reduces the footprint in control panels

The Siemens 6ES7135-6HB00-0DA1 analog input module offers precise signal conversion and reliable performance, providing high accuracy in industrial automation systems.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
