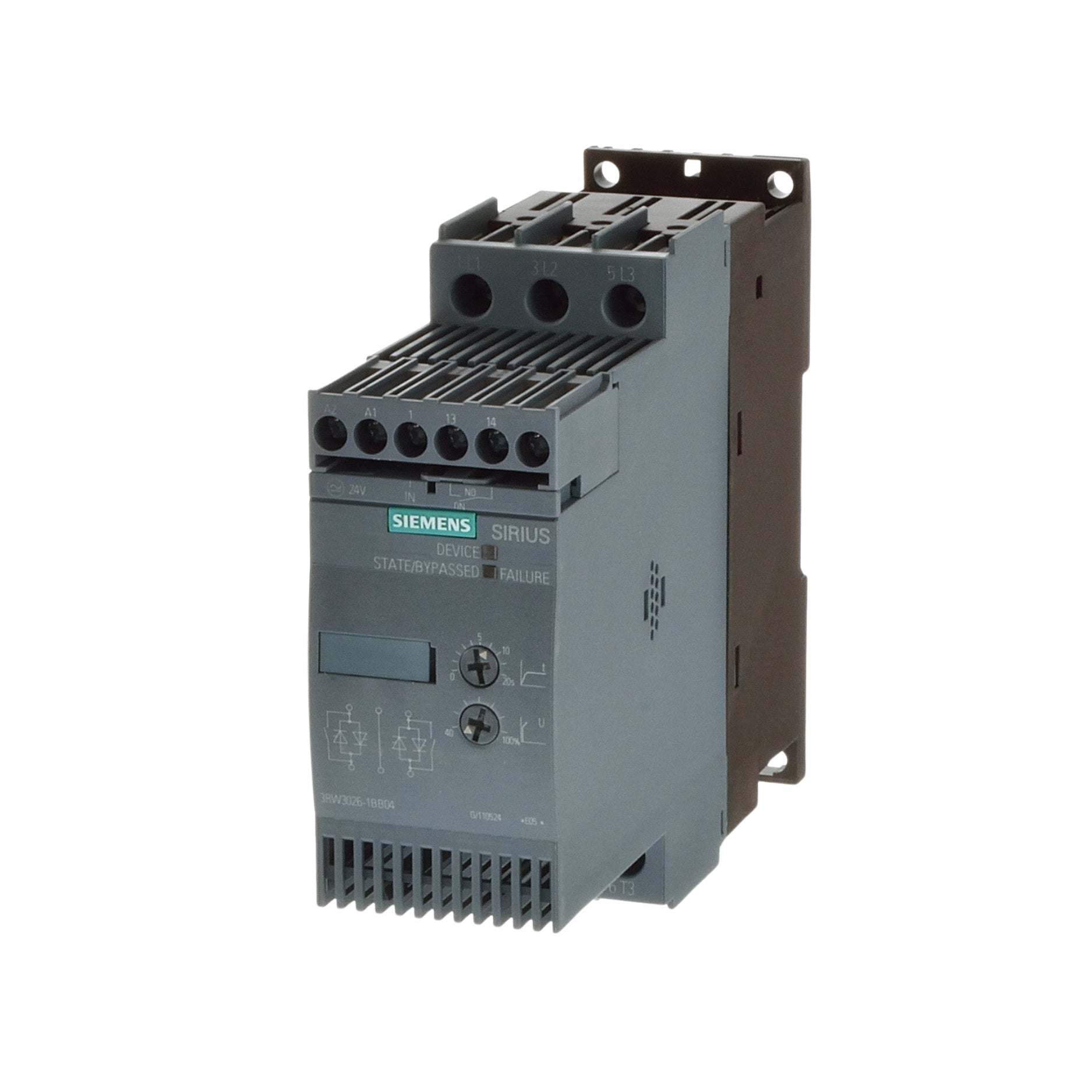

Siemens 3RW3026-1BB14

Siemens 3RW3026-1BB14 | SIRIUS Soft Starter

Overview:

The Siemens 3RW3026-1BB14 is a SIRIUS series soft starter engineered to facilitate the smooth startup of three-phase asynchronous motors. By gradually increasing the motor voltage, it minimizes mechanical stress and reduces inrush current, thereby extending the lifespan of both the motor and connected equipment. This soft starter is suitable for motors rated up to 11 kW (15 HP) at 400 V, handling operational currents up to 25 A. It operates within a supply voltage range of 200–480 V AC and accepts a control voltage of 110–230 V AC/DC. The device is designed for easy integration with screw terminal connections and is mountable on standard 35 mm DIN rails.

Key Features:

• Smooth Motor Startup: Reduces mechanical wear and electrical stress by controlling voltage ramp-up during motor startup.
• Integrated Bypass Contacts: Enhances energy efficiency by reducing power loss once the motor reaches full speed.
• Compact Design: Space-saving dimensions facilitate easy installation in control panels.
• Wide Control Voltage Range: Compatible with control voltages from 110 to 230 V AC/DC, offering flexibility in various control schemes.
• Screw Terminal Connections: Ensures secure and straightforward wiring.

Technical Specifications:

• Product Type: SIRIUS Soft Starter
• Part Number: 3RW3026-1BB14
• Motor Rating: 11 kW (15 HP) at 400 V
• Operational Current: 25 A at 40°C
• Supply Voltage: 200–480 V AC
• Control Voltage: 110–230 V AC/DC
• Frequency: 50/60 Hz
• Connections: Screw terminals
• Mounting: 35 mm DIN rail
• Dimensions (H x W x D): 125 mm x 45 mm x 150 mm
• Weight: Approximately 0.616 kg
• Protection Rating: IP20
• Operating Temperature Range: -25°C to +60°C

Applications:

• Pumping Systems: Prevents water hammer and extends pump lifespan by controlling startup torque.
• Conveyors: Ensures smooth acceleration, reducing mechanical stress on belts and gears.
• HVAC Systems: Facilitates gentle fan and compressor startups, enhancing system reliability.
• Material Handling Equipment: Improves operational efficiency by minimizing mechanical shocks during motor startup.

The Siemens 3RW3026-1BB14 SIRIUS Soft Starter is an effective solution for applications requiring controlled motor startup to enhance equipment longevity and operational efficiency.
