OVERVIEW

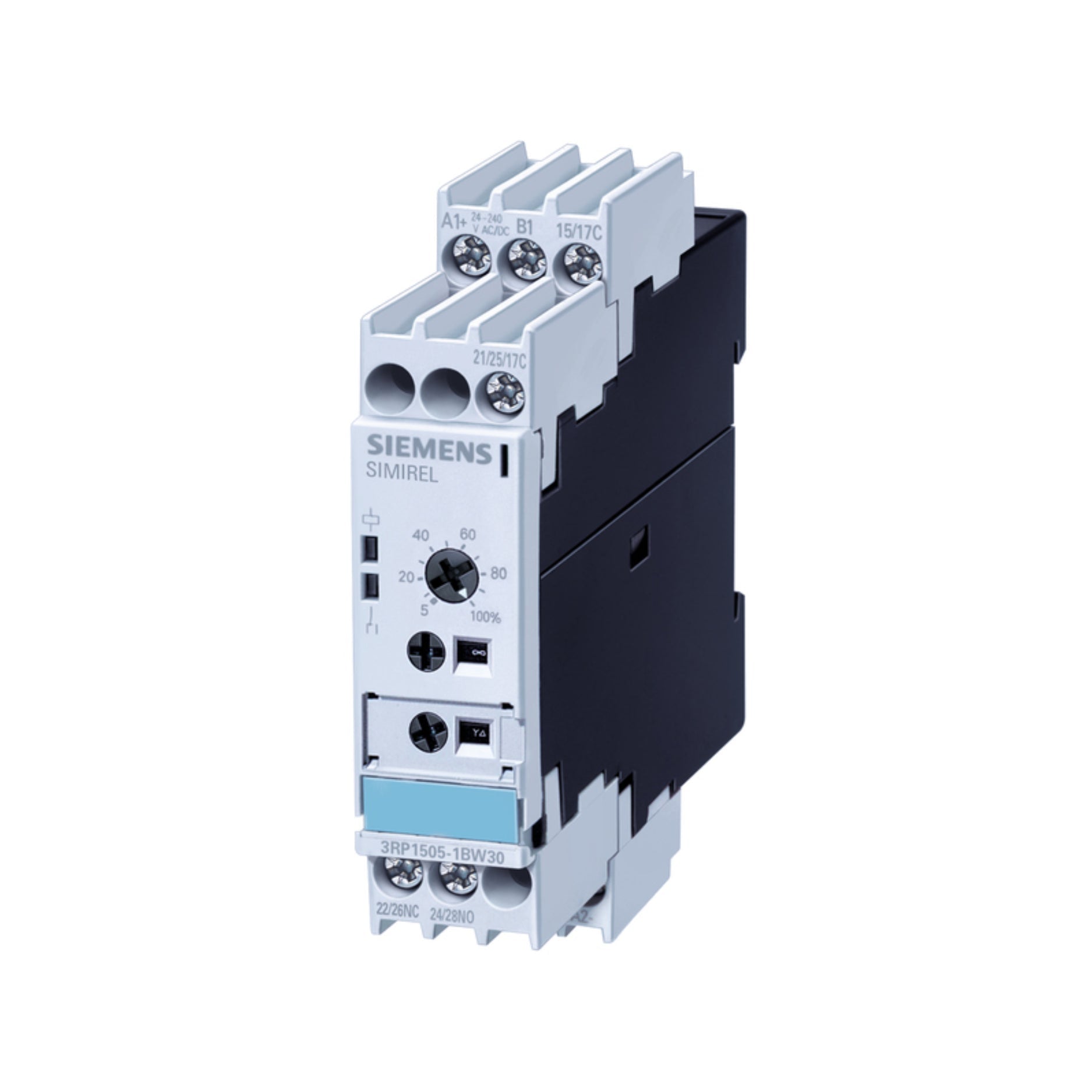

The Siemens 3RP1505-1BP30 is a multifunction timing relay engineered for accurate and reliable time-delay control in automation and electrical applications. It features adjustable time settings, multiple operating modes, and robust design for use in industrial control panels and process automation.

KEY FEATURES

• Model: Siemens 3RP1505-1BP30
• Type: Timing Relay
• Time Range: 0.05s to 100h (adjustable)
• Voltage Rating: 24V AC/DC, 110-240V AC
• Operating Modes: Multifunction with delay-on, delay-off, and interval timing
• Output Contacts: 2 changeover contacts (SPDT)
• LED Indicators: Status indication for power and relay operation
• Mounting: DIN rail mounting for easy installation

TECHNICAL INFORMATION

• Voltage Supply: 24V AC/DC, 110-240V AC
• Time Adjustment: Rotary dial with precise scaling
• Switching Capacity: Up to 250V AC, 5A
• Operating Temperature Range: -25°C to +60°C
• Mounting Type: DIN rail mountable
• Standards Compliance: IEC 61812-1, CE, UL certified

APPLICATIONS

• Industrial Automation: Ensures precise time delays in control circuits
• Motor Control: Used in sequential starting and stopping of motors
• Process Control: Automates delay functions in industrial processes
• Lighting Systems: Provides time-based switching for energy efficiency
• Conveyor Systems: Controls material handling timing operations

BENEFITS

• Accurate Time Control: Adjustable settings for flexible automation
• Reliable Performance: Ensures consistent operation in industrial environments
• Easy Installation: DIN rail mounting for quick integration
• Multifunctional Operation: Supports various timing functions for different applications
• Enhanced Safety: Built-in LED indicators for easy status monitoring

The Siemens 3RP1505-1BP30 timing relay is a versatile and precise solution for industrial automation and control applications, providing adjustable time-delay functionality and reliable operation.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
