Siemens 6SL3330-6TG35-5AA3

Siemens 6SL3330-6TG35-5AA3 – Overview

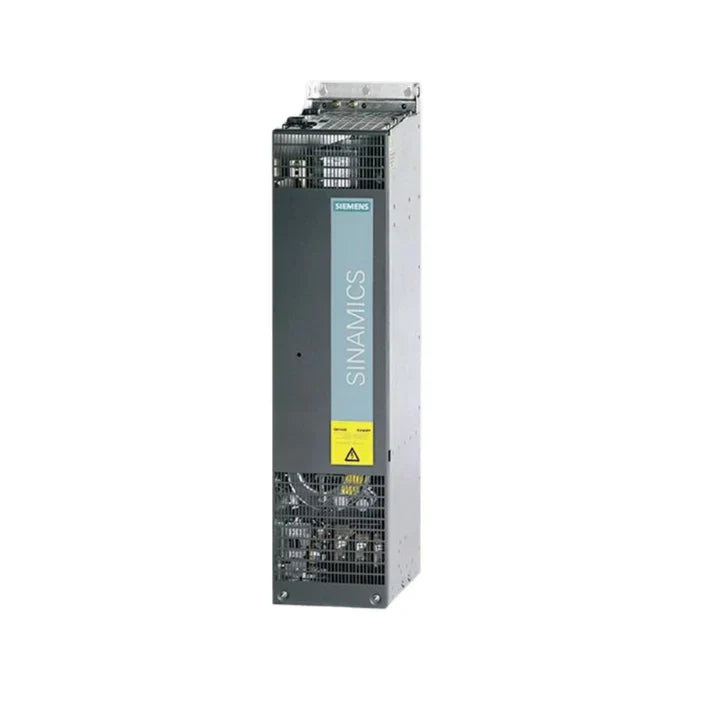

The Siemens 6SL3330-6TG35-5AA3 is a SINAMICS S120 Smart Line power module, designed as a rectifier / converter unit in modular drive systems. It accepts a 3-phase AC input voltage of 500–690 V (50/60 Hz) and outputs a DC link voltage of 675–930 V at 550 A continuous current, with a rated power of 450 kW. The unit is built with internal air cooling, in a chassis/open-frame format, and includes IP00 design with DRIVE-CLiQ interface support.

Key Features

• Smart Line module for SINAMICS S120

• AC input: 500–690 V (3-phase)

• DC link output: 675–930 V

• Output current: 550 A continuous

• Power rating: 450 kW

• Internal air cooling

• IP00 chassis design

• Integrated DRIVE-CLiQ interface

Technical Specifications

• Part Number: 6SL3330-6TG35-5AA3

• Product Family: SINAMICS S120 Smart Line

• Input Voltage: 500–690 V AC, 3-phase

• Output (DC Link): 675–930 V

• Continuous Current: 550 A

• Rated Power: 450 kW

• Cooling Method: Internal air cooling

• Frame / Enclosure: Chassis / open frame (IP00)

Applications

• Modular drives for industrial machines

• High-power motor systems (compressors, pumps, large fans)

• Integration into SINAMICS S120 architectures

• Replacement or upgrade in smart line drive systems

Why Choose Siemens 6SL3330-6TG35-5AA3

• Balanced performance for mid-to-high power applications

• Compact open-frame design for easier integration

• Support for modern communication/control via DRIVE-CLiQ

• Proven Siemens design and reliability for factory systems

Order Now

The Siemens 6SL3330-6TG35-5AA3 SINAMICS S120 Smart Line Module is available and ready for global shipping.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
