Siemens 6SL3330-6TE41-1AA3

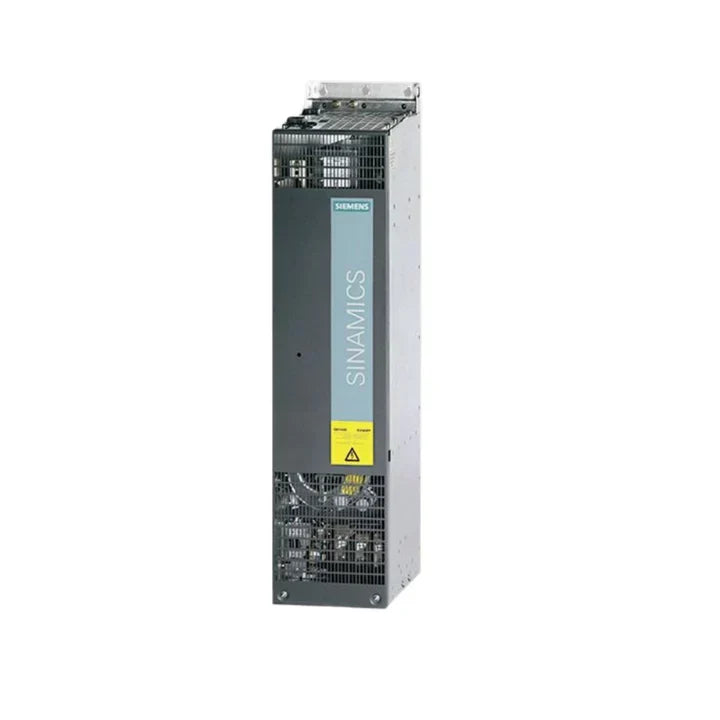

Siemens 6SL3330-6TE41-1AA3 – Overview

The Siemens 6SL3330-6TE41-1AA3 is a SINAMICS S120 Smart Line power module designed for mid-to-high power drive systems. It accepts a 3-phase AC input of 380–480 V (50/60 Hz) and delivers a DC output link of 510–650 V, with a continuous current rating of 1050 A and a nominal rated power of 500 kW.

This built-in, open-frame chassis unit features internal air cooling, an IP00 enclosure, and is designed for modular integration into SINAMICS S120 systems. It includes DRIVE-CLiQ communication capability for system feedback and control.

Key Features

• Smart Line module rated at 500 kW

• Input: 380–480 V AC, three-phase

• Output DC link: 510–650 V

• Continuous current: 1050 A

• Chassis / open-frame format, internal air cooling

• IP00 enclosure

• DRIVE-CLiQ interface supported

• Compatible with modular drive systems

Technical Specifications

• Part Number: 6SL3330-6TE41-1AA3

• Module Type: SINAMICS S120 Smart Line

• Input Voltage: 380–480 V AC (3 phase)

• Output Voltage (DC link): 510–650 V

• Continuous Current Rating: 1050 A

• Power Rating: 500 kW

• Cooling Method: Internal air cooling

• Frame / Enclosure: Chassis / open frame, IP00

• Communication: DRIVE-CLiQ support

Applications

• Drive systems requiring robust DC link conversion

• Modular automation platforms and large motors

• Industrial processes, compressors, pumps, and heavy machinery

• SINAMICS S120 modular architectures needing intermediate power level

Why Choose Siemens 6SL3330-6TE41-1AA3

• Balanced intermediate power module between standard and high-range units

• Efficient internal cooling and modular chassis design

• Seamless integration via DRIVE-CLiQ in S120 systems

• Designed for durability in industrial settings

Order Now

The Siemens 6SL3330-6TE41-1AA3 Smart Line module is available and ready for international delivery.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
