Siemens 6SL3330-1TG34-3AA3

Siemens 6SL3330-1TG34-3AA3 – Overview

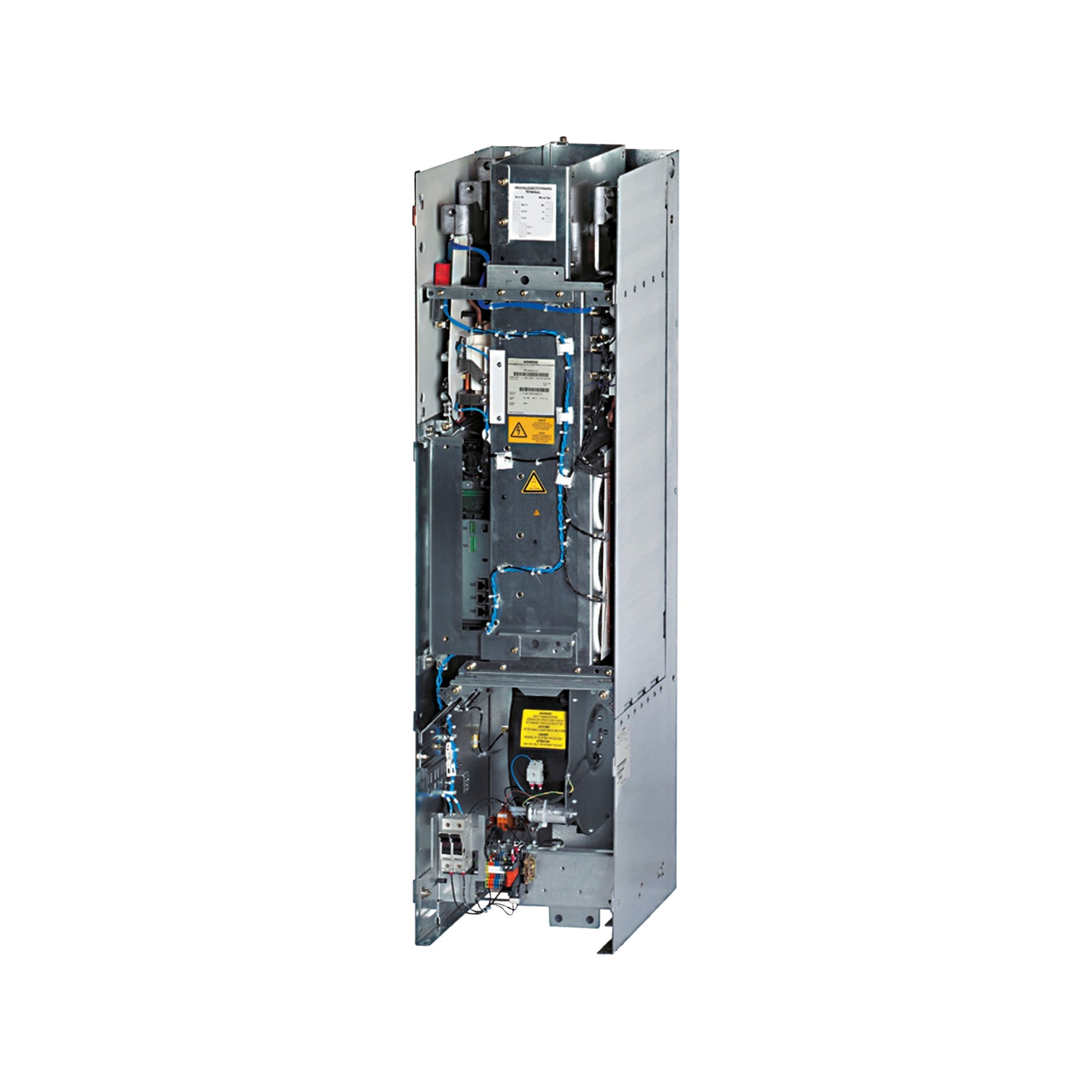

The Siemens 6SL3330-1TG34-3AA3 is a SINAMICS S120 Basic Line front-end (chassis) module designed to supply the DC link for high-power drive systems. It accepts a three-phase AC input (500–690 V), produces a DC link voltage between 675 and 930 V, and delivers 430 A continuous current, rated for about 355 kW output.

It is built in an open-frame chassis design with internal air cooling and supports integration into modular S120 architectures armed for industrial environments.

Key Features

• 430 A continuous current rating

• Input voltage (3-phase AC): 500–690 V

• DC link voltage: 675–930 V

• Power rating: ~355 kW

• Chassis / open-frame construction

• Internal air cooling (fan assisted)

• IP00 enclosure style

Technical Specifications

• Part Number: 6SL3330-1TG34-3AA3

• Product Type: SINAMICS S120 Basic Line module

• Input Voltage: 500–690 V AC (three-phase)

• DC Link Voltage Range: 675–930 V

• Continuous Current (output): 430 A

• Power Rating: 355 kW

• Cooling Method: Internal air cooling

• Enclosure / Frame: Chassis open-frame, IP00

Applications

• Drives for large motors (pumps, compressors, fans)

• Heavy-duty industrial machines

• SINAMICS S120 modular systems as the converter / DC link front end

• Retrofit or new installations requiring robust power modules

Why Choose Siemens 6SL3330-1TG34-3AA3

• Balanced design for mid-to-high power DC link needs

• Compatible with S120 ecosystem for modular scalability

• Open-frame chassis assists cooling and servicing

• Proven performance in industrial drive applications

Order Now

The Siemens 6SL3330-1TG34-3AA3 Basic Line module is available and ready for global delivery.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
