Siemens 6SL3330-1TE35-3AA3

Siemens 6SL3330-1TE35-3AA3 – Overview

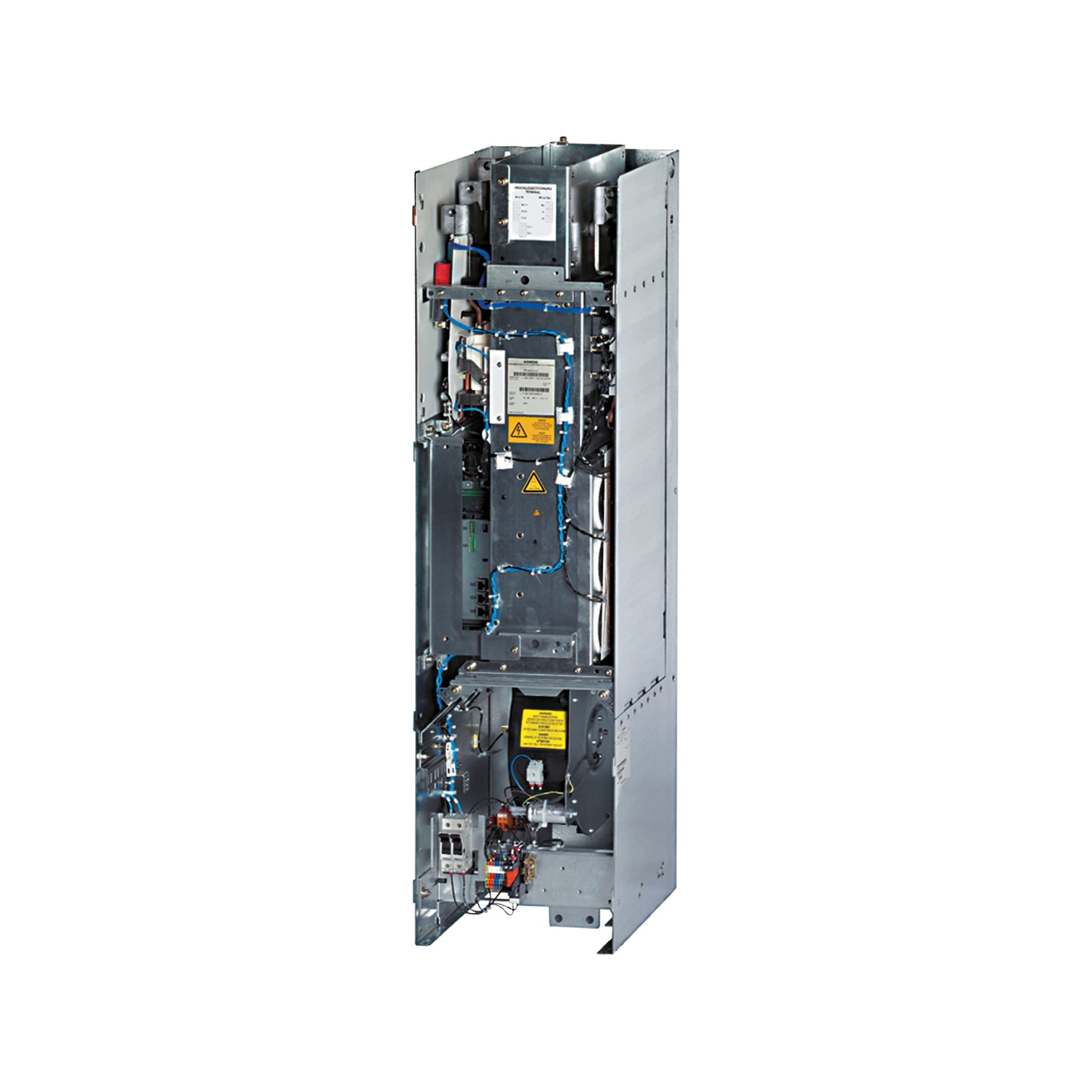

The Siemens 6SL3330-1TE35-3AA3 is a SINAMICS S120 Basic Line module, built for high-power industrial applications. It accepts a 3-phase AC input voltage of 380–480 V (50/60 Hz) and converts that into a DC link output of 510–650 V. This drive module is rated for 530 A continuous current, delivering up to 250 kW of output power.

Constructed in a chassis / open-frame format with internal air cooling, the 6SL3330-1TE35-3AA3 is a robust module designed for integration into modular drive systems and demanding industrial environments.

Key Features

• High-current Basic Line module (530 A)

• DC output range: 510–650 V

• Input: 3-phase AC, 380–480 V, 50/60 Hz

• Power output: up to 250 kW

• Chassis / open-frame design with internal air cooling

• Compatible with modular SINAMICS S120 systems

Technical Specifications

• Part Number: 6SL3330-1TE35-3AA3

• Series / Line: SINAMICS S120 Basic Line

• Input Voltage Range: 380–480 V AC (3-phase)

• DC Link Output: 510–650 V

• Continuous Current: 530 A

• Power Rating: 250 kW

• Cooling Method: Internal air cooling

• Frame Type: Chassis / open-frame

• Dimensions (typical for Basic Line chassis module): ~310 mm × 352 mm × 1164 mm

• Protection / Mounting: IP00, plug-in board configuration

Applications

• Large industrial drives (motors, pumps, compressors)

• Modular machine tool systems using SINAMICS S120

• High-power automation and processing systems

• Retrofit and replacement in high-demand drive environments

Why Choose Siemens 6SL3330-1TE35-3AA3

• High power and current handling in a single module

• Designed for industrial reliability and modular integration

• Compatible with established SINAMICS S120 ecosystems

• Balanced design for performance and cooling

Order Now

The Siemens 6SL3330-1TE35-3AA3 SINAMICS S120 Basic Line module is available for order, with lead times depending on stock and supplier location.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
