Siemens 6SL3320-1TG31-5AA3

Siemens 6SL3320-1TG31-5AA3 – Overview

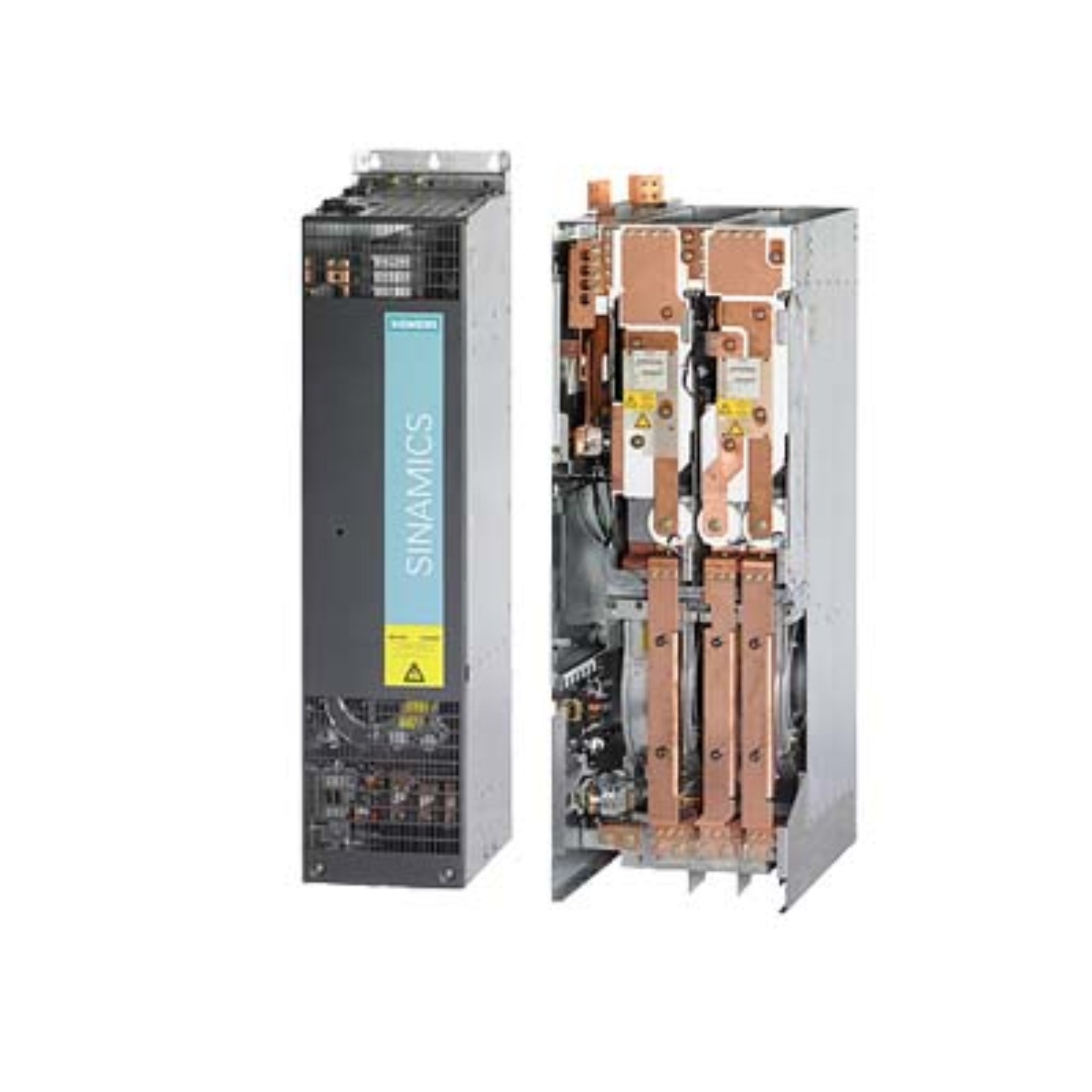

The Siemens SINAMICS 6SL3320-1TG31-5AA3 is a single motor module in the S120 series, designed for high-voltage DC link to AC motor conversion in modular drive systems. It works with a DC input in the range 675 to 1035 V, and provides a three-phase AC output of 500 to 690 V. The module supports a current rating of 150 A, uses internal air cooling, and is built in a chassis / open-frame format for installation in drive cabinets.

It is intended to be used in industrial systems where scalable, high-voltage, high-current motor control is required, such as in process plants or large machinery.

Key Features

• Compatible DC input range: 675 to 1035 V

• AC three-phase output: 500 to 690 V

• Continuous current rating: 150 A

• Chassis / open-frame module format

• Internal forced-air cooling

• Integration capability with safety, signal, and feedback interfaces

• Manufactured for use in modular SINAMICS S120 systems

Technical Specifications

• Part Numbers:
    – 6SL3320-1TG31-5AA3
    – 6SL3320/1TG31/5AA3

• DC Input Voltage: 675 to 1035 V

• AC Output Voltage: 500 to 690 V, three-phase

• Continuous Output Current: 150 A

• Cooling Method: Internal forced-air

• Protection / Enclosure: Chassis / open frame format

• Installation Format: Designed for mounting inside drive cabinets or racks

• Other Attributes:
    – Supports extended safety and feedback interfaces
    – Suitable for industrial ambient environments

Applications

• High-voltage motor drives (fans, compressors, pumps)

• Large process machinery in chemical, paper, or mining plants

• Modular drive systems with shared DC bus architecture

• Retrofits or new installations demanding high current and voltage

Why Choose Siemens 6SL3320-1TG31-5AA3

• High-voltage, high-current module for demanding applications

• Seamless fit into SINAMICS S120 architecture

• Robust cooling and open-frame construction

• Scalable and modular for system flexibility

• Backed by Siemens design, support, and ecosystem compatibility

Order Now

The Siemens 6SL3320-1TG31-5AA3 SINAMICS S120 single motor module is available for order.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
