Siemens 3RV2011-1JA15

Siemens 3RV2011-1JA15 | SIRIUS 3RV2 Motor Protection Circuit Breaker

Overview:

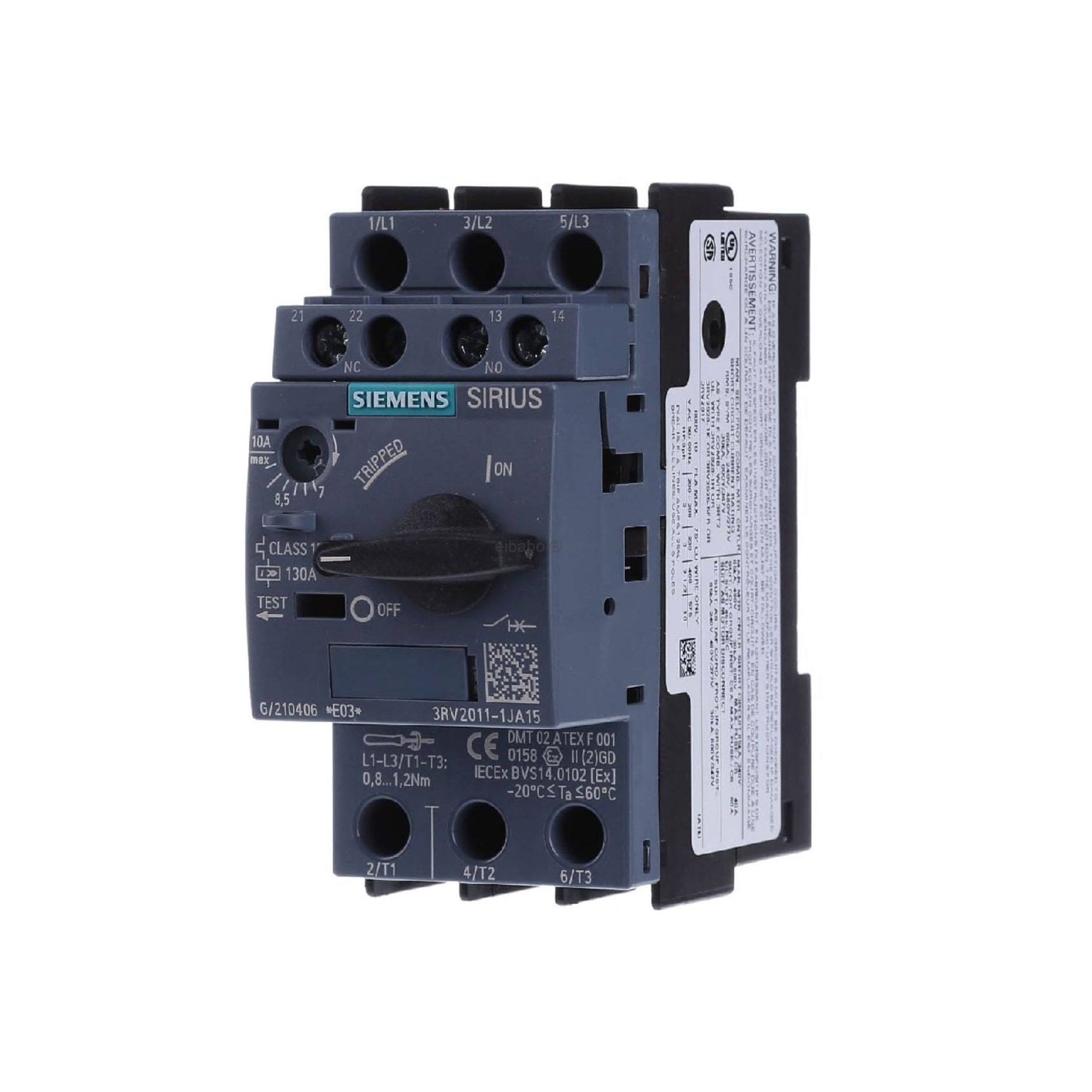

The Siemens 3RV2011-1JA15 is a motor protection circuit breaker from the SIRIUS 3RV2 series, specifically designed to safeguard motors against overloads and short circuits. This compact device, classified under size S00, offers reliable protection for motors with operational currents ranging from 7 to 10 A. Equipped with both thermal and magnetic release mechanisms, it ensures prompt response to electrical faults, thereby enhancing the safety and longevity of motor systems.

Key Features:

• Adjustable Thermal Release: Allows current settings between 7 to 10 A, providing flexibility to accommodate various motor specifications.
• Fixed Magnetic Release: Set at 130 A to ensure immediate disconnection during short-circuit conditions, protecting both the motor and associated circuitry.
• Integrated Auxiliary Contacts: Includes transverse auxiliary switches with 1 Normally Open (NO) and 1 Normally Closed (NC) contact, facilitating enhanced control and monitoring capabilities.
• Screw Terminal Connections: Ensures secure and straightforward wiring, reducing installation time and potential connection issues.
• Standard Switching Capacity: Designed to handle typical motor switching operations efficiently.

Technical Specifications:

• Product Type: Motor Protection Circuit Breaker
• Part Number: 3RV2011-1JA15
• Frame Size: S00
• Thermal Release Adjustment Range: 7 to 10 A
• Magnetic Release Setting: 130 A
• Operational Voltage: Up to 690 V AC
• Power Rating at 400 V (AC-3): 4 kW
• Auxiliary Contacts: 1 NO + 1 NC
• Mounting Method: DIN rail mounting
• Terminal Type: Screw terminals
• Dimensions (H x W x D): 97 mm x 45 mm x 97 mm
• Net Weight: Approximately 0.36 kg
• Protection Class: IP20
• Standards Compliance: Conforms to IEC 60947-4-1 and IEC 60947-2

Applications:

• Industrial Automation: Protects motors in automated production lines, ensuring minimal downtime and enhanced operational efficiency.
• Pumping Systems: Safeguards pumps from electrical faults, thereby preventing potential damage and costly repairs.
• HVAC Systems: Ensures reliable operation of heating, ventilation, and air conditioning motors by providing essential protection against overloads and short circuits.
• Conveyor Systems: Maintains the smooth operation of conveyor motors by promptly addressing electrical anomalies.

The Siemens 3RV2011-1JA15 motor protection circuit breaker offers a robust and efficient solution for safeguarding motors across various industrial applications, combining adjustable protection settings with integrated auxiliary contacts for comprehensive motor management.
