Siemens 6ED1052-1MD00-0BA6

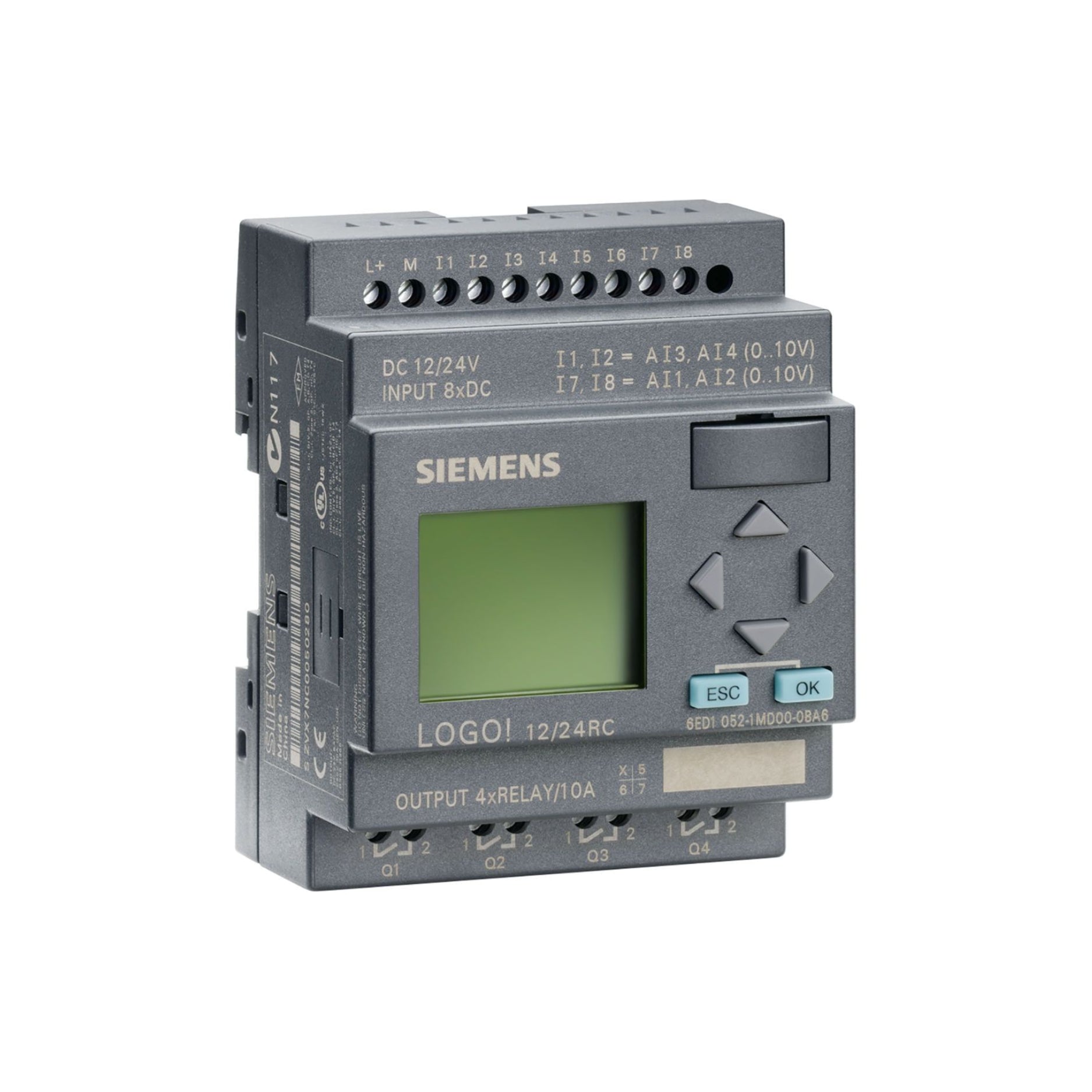

Siemens 6ED1052-1MD00-0BA6 | LOGO! 12/24RC Logic Module

Overview:

The Siemens 6ED1052-1MD00-0BA6 is part of the LOGO! series of logic modules, renowned for their compact design and versatility in small automation projects. This module is equipped with a display and offers a range of inputs and outputs suitable for various control tasks.

Key Features:

• Integrated I/O:
  • Digital Inputs: 8 inputs, with 4 configurable as analog inputs (0 to 10 V).
  • Digital Outputs: 4 relay outputs capable of switching resistive loads up to 10 A and inductive loads up to 3 A.
• Power Supply: Operates on 12/24 V DC, accommodating a voltage range from 10.8 V to 28.8 V DC.
• Memory Capacity: Supports up to 200 function blocks, allowing for complex control programs.
• Modular Expandability: Compatible with additional modules to enhance functionality, though compatibility varies with module versions.
• Display: Integrated display for easy monitoring and configuration.

Technical Specifications:

• Digital Inputs: 8 (4 configurable as analog 0-10 V).
• Digital Outputs: 4 relay outputs.
• Power Supply: 12/24 V DC (10.8 V to 28.8 V range).
• Memory: 200 blocks.
• Mounting: 35 mm DIN rail, occupying 4 spacing units.
• Dimensions (W x H x D): 72 mm x 90 mm x 55 mm.
• Operating Temperature: 0°C to +55°C.
• Protection Rating: IP20.

Product Status:

As of September 30, 2023, the 6ED1052-1MD00-0BA6 model has been discontinued without a direct replacement. Users are advised to consult Siemens' official channels or authorized distributors for guidance on alternative products or upgrades.

Applications:

• Building Automation: Lighting control, HVAC systems, and access control.
• Industrial Automation: Control of machinery, conveyors, and process systems.
• Environmental Monitoring: Water treatment plants and agricultural automation.
• Energy Management: Monitoring and controlling energy consumption in facilities.

For detailed technical information and guidance on transitioning to alternative solutions, please refer to Siemens' official documentation or contact an authorized Siemens representative.
